9
English

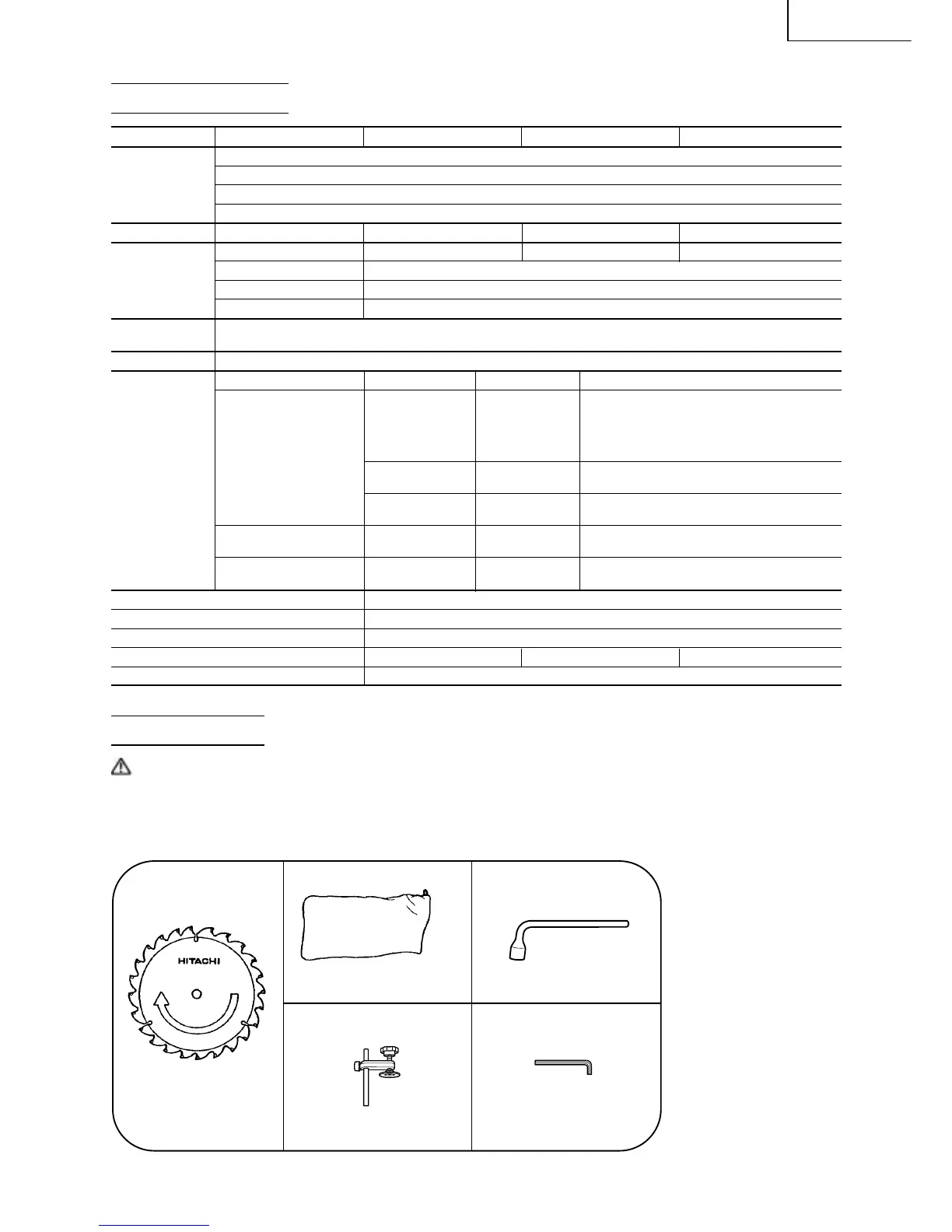

SPECIFICATIONS
Item Model C12LCH C12LC C12FCH
Motor Type Series commutator motor
Power source Single-phase AC 60Hz
Voltage (Volts) 120
Full-load current (Amp) 15
Digital Display Precision ±0.5° Yes Yes No
Laser Marker Yes No Yes
Maximum output <1mW CLASS II Laser Product
Wave length 400~700 nm
Laser medium Laser Diode
Applicable Outside Dia. 12” (305mm)
saw blade Hole Dia. 1” (25.4mm)
No load speed 4000/min
Max. Head Turntable Max. sawing dimension
sawing Miter 0 0 Max. Height 2-1/2” (63.5mm)
dimension
Max. Width 7-7/8” (200mm)
or
Max. Height 3-7/8” (98mm)
Max. Width 6-1/8” (155mm)
0 Left 45° Max. Height 2-1/2” (63.5mm)
Max. Width 5-1/2” (140mm)
0 Left 52° Max. Height 2-1/2” (63.5mm)
Max. Width 4-3/4” (120mm)
Bevel Left 45° 0 Max. Height 1-5/8” (42mm)
Max. Width 7-7/8” (200mm)
Compound Left 45° Left 45° Max. Height 1-5/8” (42mm)
Max. Width 5-1/2” (140mm)
Miter sawing range Left 0° – 52° Right 0° – 52°
Bevel sawing range Left -3° – 48°
Compound sawing range Left (Bevel) 0° – 45°, Left and Right (Miter) 0° – 45°
Net weight 43.0 lbs. (19.5 kg) 41.9 lbs. (19.0 kg) 41.9 lbs. (19.0 kg)
Cord 2 Conductor type cable 6ft. (1.8m)
ACCESSORIES
WARNING: Accessories for this power tool are mentioned in this Instruction Manual.
The use of any other attachment or accessory can be dangerous and could cause injury or
mechanical damage.
STANDARD ACCESSORIES
Fig. 3
2 Dust bag (1 piece)1 12” (305mm) TCT Saw
blade (1 piece) (For wood)
For how to use, refer to
page 21.
4 17mm BOX wrench
(1 piece)
3 Vise Assembly w/knob bolt
(1 piece)
For how to use, refer to
page 16.
(No. of teeth 32
Code No. 323522)
5 4mm Hex. bar wrench
(For C12LCH/C12FCH)
For how to use, refer to
page 14.
To Next Page
