Introduction 1-13
Hitachi Compute Rack 220H CRU Replacement Guide
• LAN mezzanine (CN7M1T-Y/ CN7M1T-R):
10GBASE-T/1000BASE-T

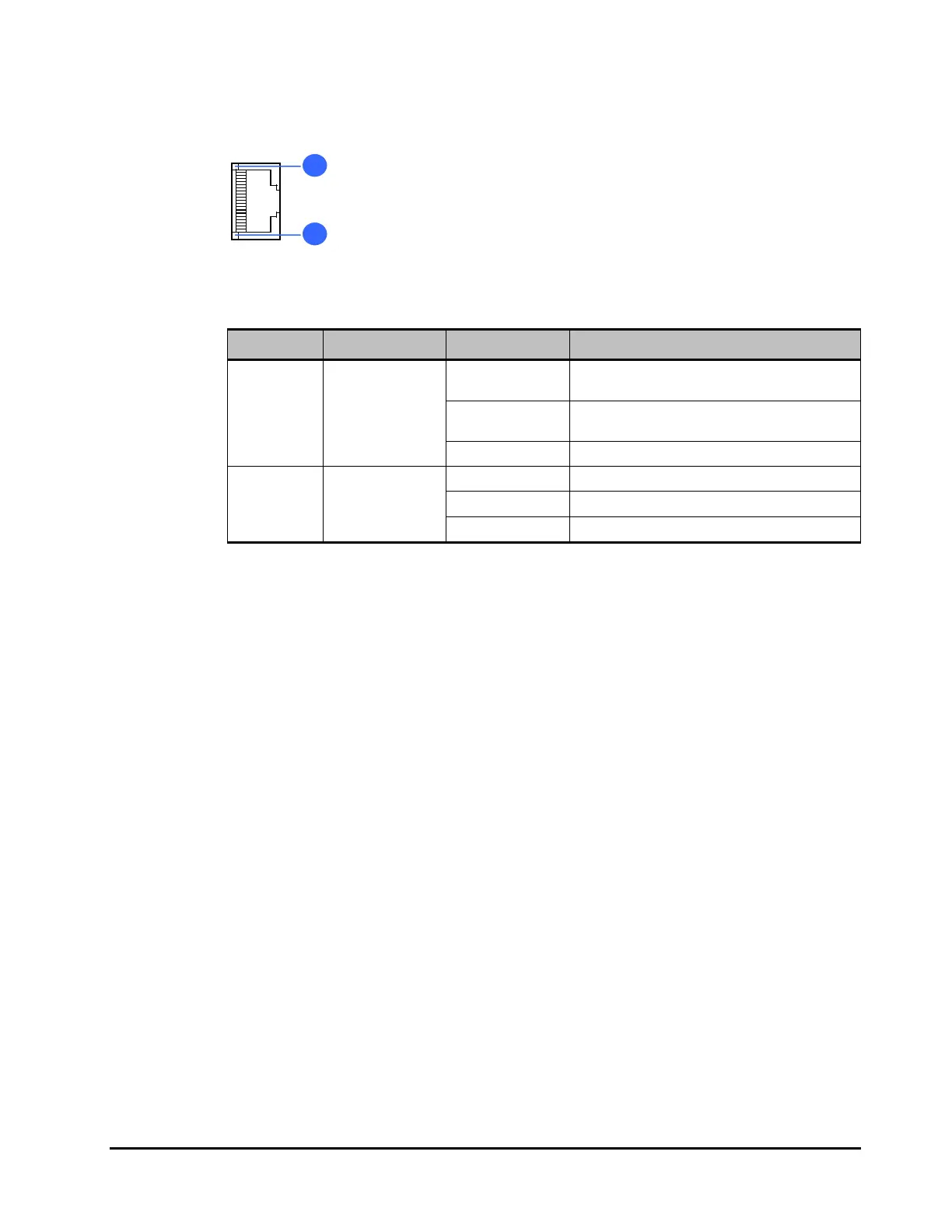

Figure 1-10: LAN mezzanine (CN7M1T-Y/ CN7M1T-R) status LED
Table 1-11: LAN mezzanine (CN7M1T-Y/ CN7M1T-R) status LED indicate
Location Name State Description
1 Link LED
Amber-On
A 10GBASE-T link with a hub has been
established.
Green-On
A 1000BASE-TX link with a hub has been
established.
Off
A link with a hub has not been established.
2 Activity LED
Green-On
A link with a hub has been established.
Green-Blink
Data is being transmitted or received.
Off
A link with a hub has not been established.
1
2
