Hitachi CP-X8800 User Manual

7
Introduction
Part names (continued)
• Any button marked with “*” is not supported on this projector (116).
• Each time you press any button (except ID buttons), the ID button of current
selected ID number will light (
29).
NOTE
Back of
the remote control
Remote control

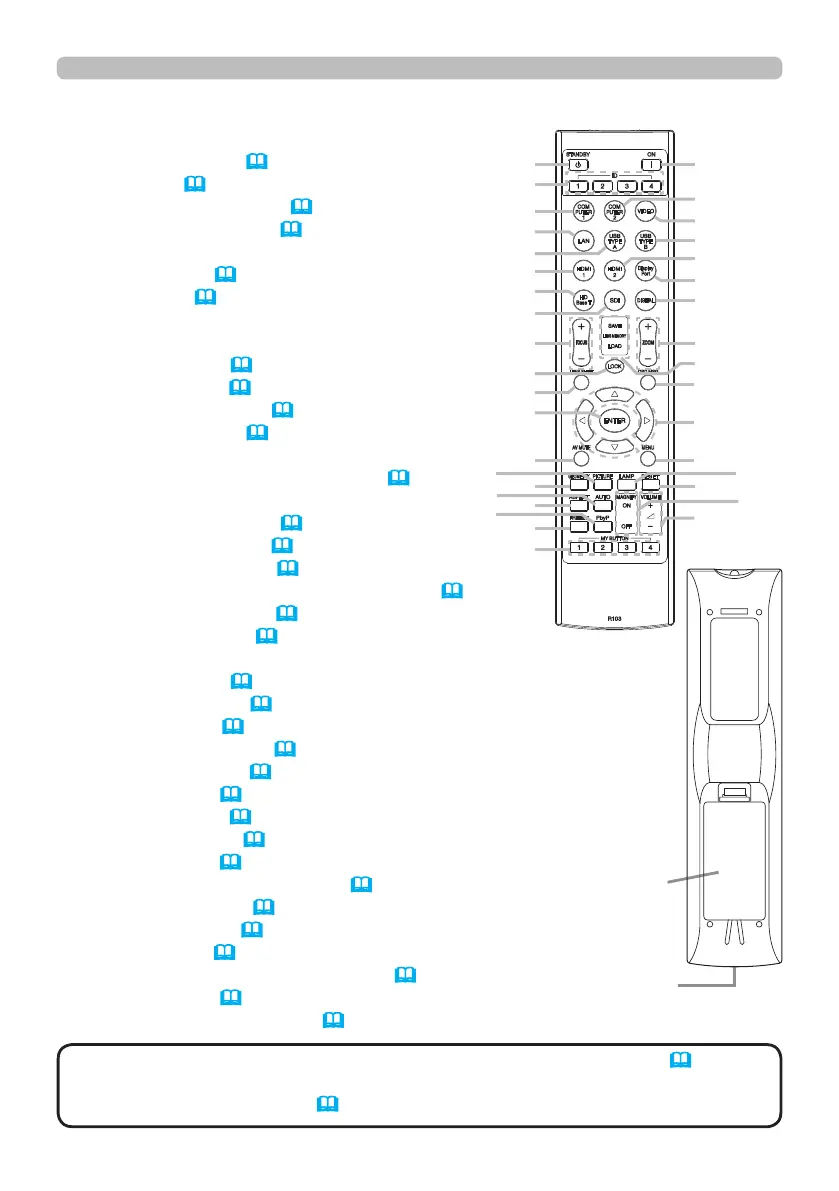

(1) STANDBY button (35)
(2) ON button (
35)
(3) ID - 1 / 2 / 3 / 4 buttons (
29)
(4) COMPUTER 1 button (
38)
(5) COMPUTER 2 button *
(6) VIDEO button (
38)
(7) LAN button (
38)
(8) USB TYPE A button *
(9) USB TYPE B button *
(10) HDMI 1 button (
38)
(11) HDMI 2 button (
38)
(12) DisplayPort button (
38)
(13)
HDBaseT button (38)
(14) SDI button
(Supported only for CP-WU8700) (
38)
(15) DIGITAL button *
(16) FOCUS + / - buttons (
41)
(17) ZOOM + / - buttons (
41)
(18) LENS SHIFT button (
41)
(19) LENS MEMORY LOAD / SAVE buttons (
42)
(20) LENS LOCK button (
94)
(21) OSD MSG button (
79)
(22) ▲/▼/◄/►cursor buttons
(23) ENTER button (
33, 57)
(24) AV MUTE button (
37)
(25) MENU button (
57)
(26) GEOMETRY button (
74, 75)
(27) PICTURE button (
63 ~ 65)
(28) LAMP button (
75, 76)
(29) RESET button (
57)
(30) ASPECT button (
39)
(31) AUTO button (
43)
(32) MAGNIFY ON / OFF buttons (
51)
(33) VOL + / - buttons (
37)
(34) FREEZE button (
52)
(35) PbyP button (
53)
(36) MY BUTTON - 1 / 2 / 3 / 4 buttons (
89, 90)
(37) Battery cover (
28)
(38) Wired remote control port (
20)
(1)
(3)
(4)
(7)
(8)
(10)
(13)
(14)
(16)
(20)
(18)
(23)
(24)
(26)
(30)
(34)
(36)
(2)
(5)
(6)
(9)
(11)
(12)
(15)
(17)
(19)
(21)
(22)
(25)
(29)
(33)
(37)
(27)
(28)
(38)
(31)
(32)
(35)

Hitachi CP-X8800 Specifications

General

Matrix size	0.79 \
Native aspect ratio	3:4
Projection distance	- m
Projection technology	3LCD
Contrast ratio (typical)	10000:1
Screen size compatibility	- \
Projector native resolution	XGA (1024x768)
Focus	Auto/Manual
Zoom capability	Yes
Focal length range	- mm
Lamp power	430 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	3000 h
Full HD	No
Supported video modes	480i, 480p, 576i, 720p, 1080i, 1080p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
HDMI connector type	Full-size
Serial interface type	RS-232
USB 2.0 ports quantity	1
S-Video inputs quantity	0
Wi-Fi	-
Noise level	37 dB
Noise level (economic mode)	31 dB
RMS rated power	16 W
Placement	Desktop, Ceiling
Product type	Large venue projector
Product color	White
Power source	AC
AC input voltage	110 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	- W
Power consumption (typical)	600 W

Weight and Dimensions

Depth	456 mm
Width	498 mm
Height	170 mm
Weight	11100 g
