Hitachi L100 Series Quick Reference Guide

5

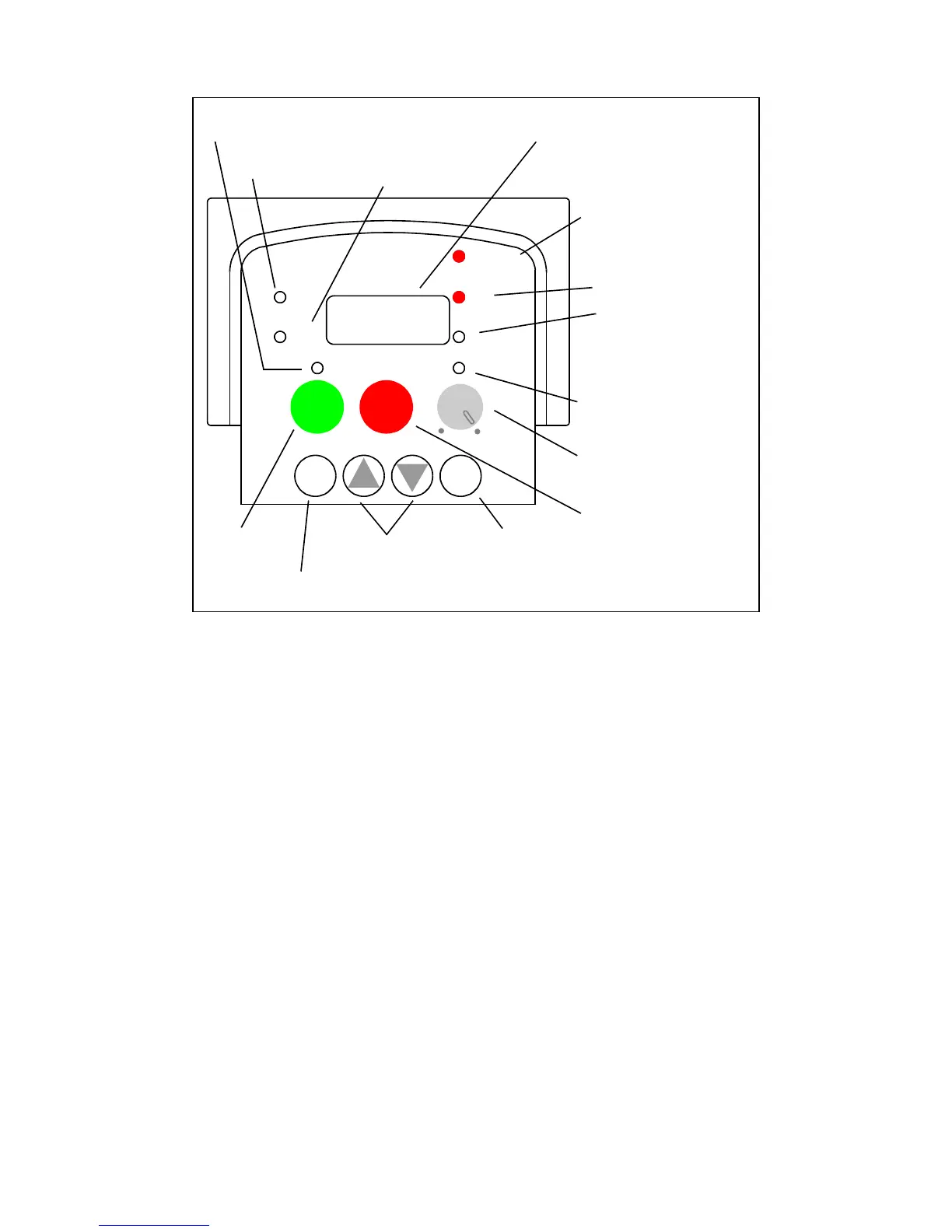

Inverter Keypad Operation
• Run/Stop LED – ON when the inverter output is ON and the
motor is developing torque, and OFF when the inverter output is
OFF (Stop Mode).
• Program/Monitor LED – ON when the inverter is ready for
parameter editing (Program Mode). It is OFF when the parameter
display is monitoring data (Monitor Mode).
• Run Key Enable LED – ON when the inverter is ready to
respond to the Run key, OFF when the Run key is disabled.
• Run Key – Press this key to run the motor (the Run Enable LED
must be ON first). Parameter F_04, Keypad Run Key Routing,
determines whether the Run key generates a Run FWD or Run
REV command.
• Stop/Reset Key – Press this key to stop the motor when it is
running (uses the programmed deceleration rate). This key will
also reset an alarm which has tripped.
(continued, next page...)
Hz
POWER
A
RUN
PRG
RUN
STOP
RESET
MIN
MAX
HITACHI
FUNC.
STR
1
2
50.0
Parameter Display
Run/Stop LED
Program/Monitor LED
Run Key Enable LED
Run Key
Power LED
Display Units LEDs
Hertz
Amperes
Potentiometer
Enable LED
Potentiometer
Stop/Reset Key
Function Key
Up/Down Keys
Store Key
