Hitachi NEXT Series User Manual

110

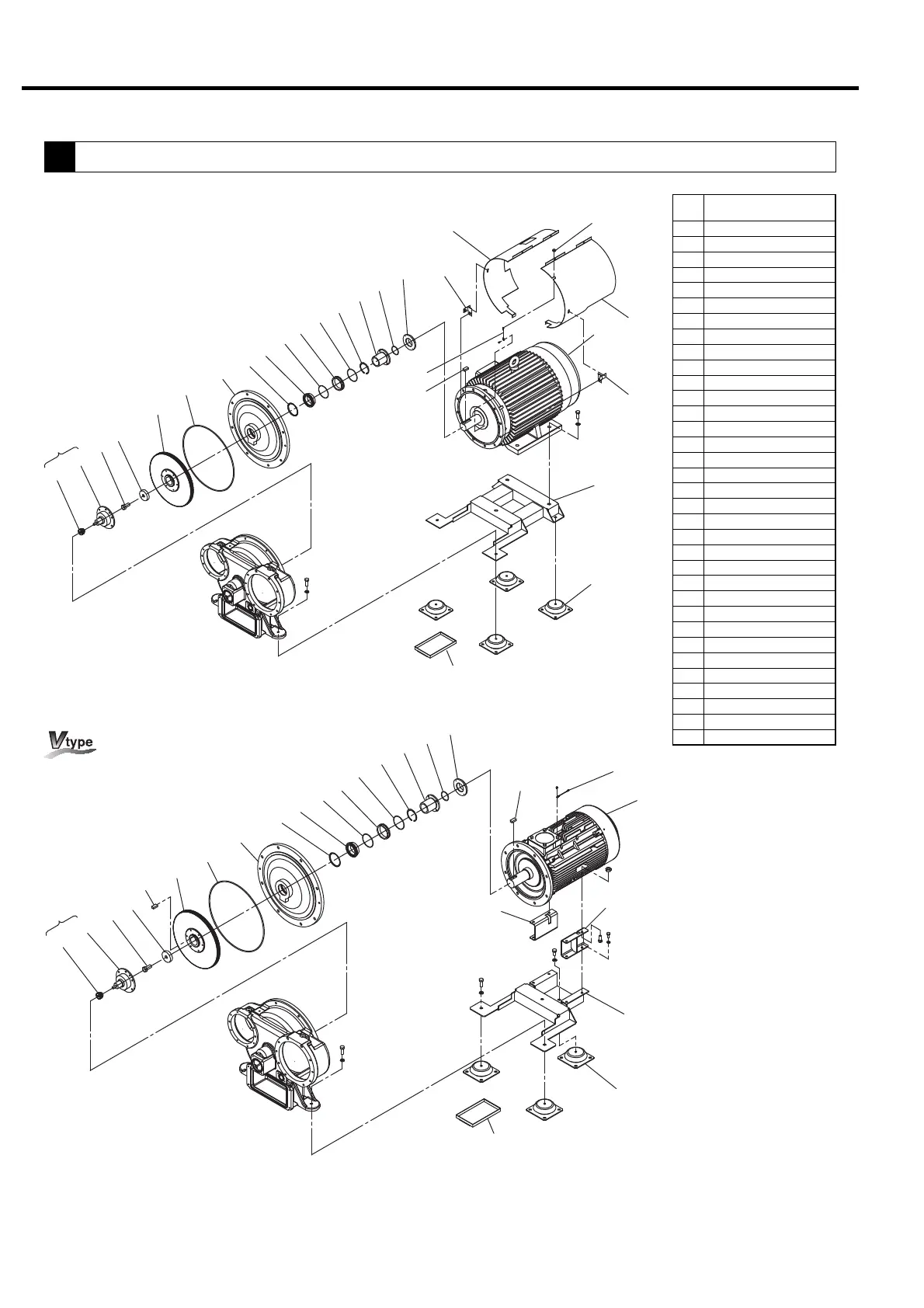

11. PARTS LIST
306
461
462
367
302
395
391
393
392
394
397
309
365
387
337
313
340
430
425
F72
460
436 (※2)
438 (※2)
437
(※2)
438
(※2)
410 (※2)
J16
401
453
454
455 (※1)
Ref.
No.
Description
302
Bull Gear
306
Pinion Gear, oil pump
309
Bushing
313
Cover, shaft seal
337
O-Ring (motor flange)
340
Key
365
O-Ring
367
Cover,Gear
387
Collar
391
Shaft Seal
392
Cover, visco seal
393
O-Ring, shaft seal
394
O-Ring, shaft seal
395
Wave Spring, visco seal
397
Snap Ring, 102
401
Motor
410
Rubber Bush
425
Vibration Isolation Rubber
430
Base, motor(1)
431
Base, motor(2)
432
Base, motor(3)
436
Motor Cover(1)
437
Motor Cover(2)
438
Fixing Bracket,Motor Cover
453
Bearing (Load-side)
454
Bearing (Anti-Load-side)
455
Grease
460
Pinion Gear and Gear Shaft Assembly
461
Gear Shaft, oil pump
462
Bolt
F72
Grease Pan
J04
Bolt
J16
Thermostat
J17
DCBL Motor Thermistor
※1 Does not come with the
product.
※2 Only for Water-cooled type.
[Fixed-speed compressor]
3
Motor Assembly
431
430
432
425
367
462
395
302
391
306
365
309
337
387
460
393
461
394
392
397
313
340
F72
J04
401
453
454
※455
J17
