Hitachi NEXT Series User Manual

+/-
AUTO
MONITOR
MENU
SET
MONITOR
UP/
DOWN

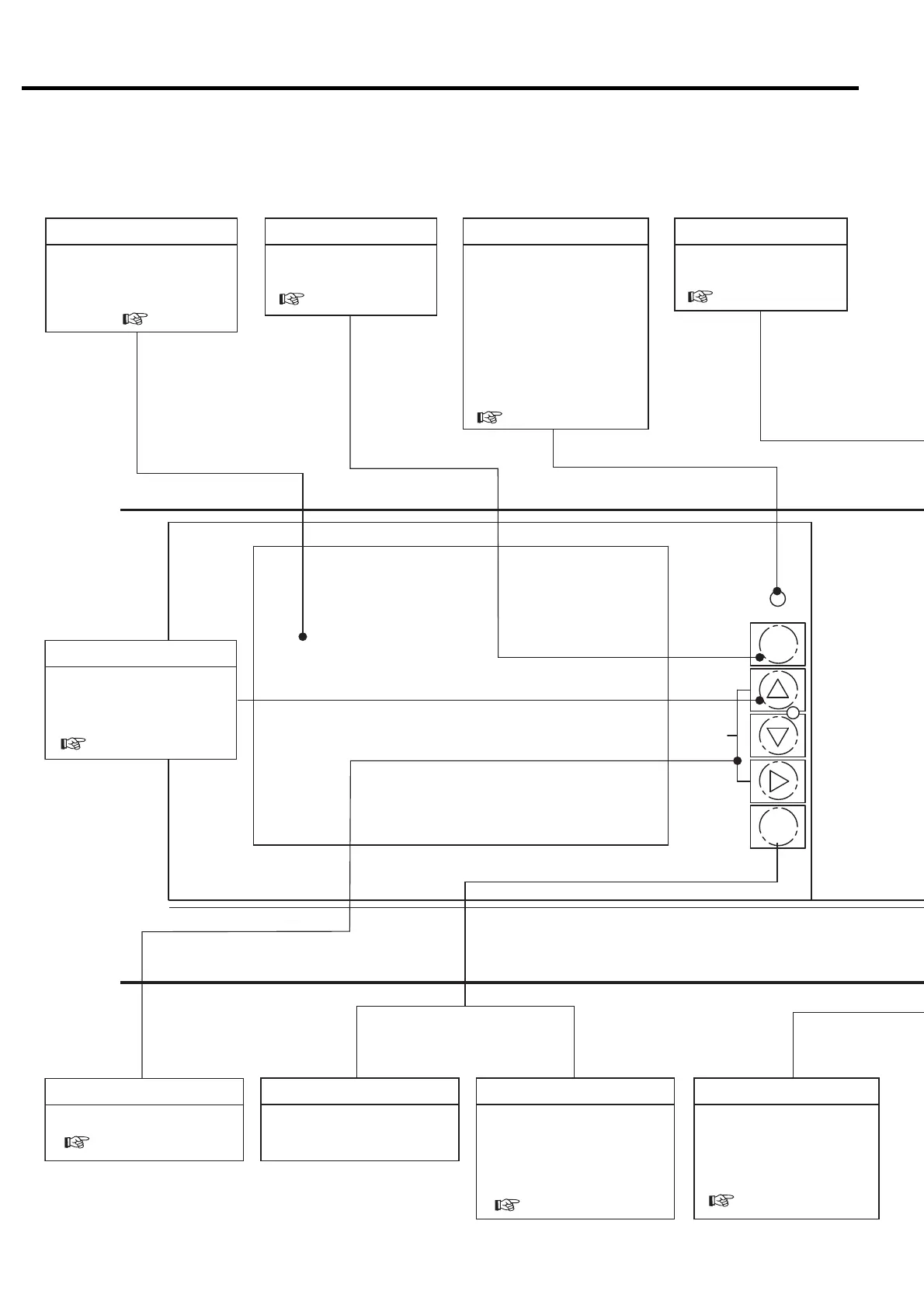

LCD monitor
Displays the operation
data, various settings,
shutdown/alarm informa-
tion, etc. ( 3.3)
MENU button
Displays the menu
screen. Also used to
move the cursor.
( 3.3.4)
+/- UP/DOWN button
Moves the cursor.
( 3.3.4)
SET button
Saves any adjusted set
points.
Contrast adjustment
SET + [△] buttons:
Increases brightness.
SET + [▽] buttons:
Decreases brightness.
( 3.3.6
󱦱)
MONITOR button
Switches the monitor
display.
( 3.3.1)
AUTO light (yellow)
ON (glowing) when an
automatic operation (an
AUTO operation, a
scheduling operation, or
lead/lag operation) is
activated. ON (blinking)
when external calendar
or scheduling operation
is abnormal.
( 3.3.3 / 3.3.5
󱦵)
RESET button
Resets SHUTDOWN
and ALARM screens.
( 3.3.3)
REMOTE button
Activates or deactivates
a remote start/stop
operation locally or on
the instrument panel.
( 3.4.6)
12
3. OPERATION PROCEDURE
3.1 Instrument Panel

Hitachi NEXT Series Specifications

General

Brand	Hitachi
Model	NEXT Series
Category	Air Compressor
Language	English
