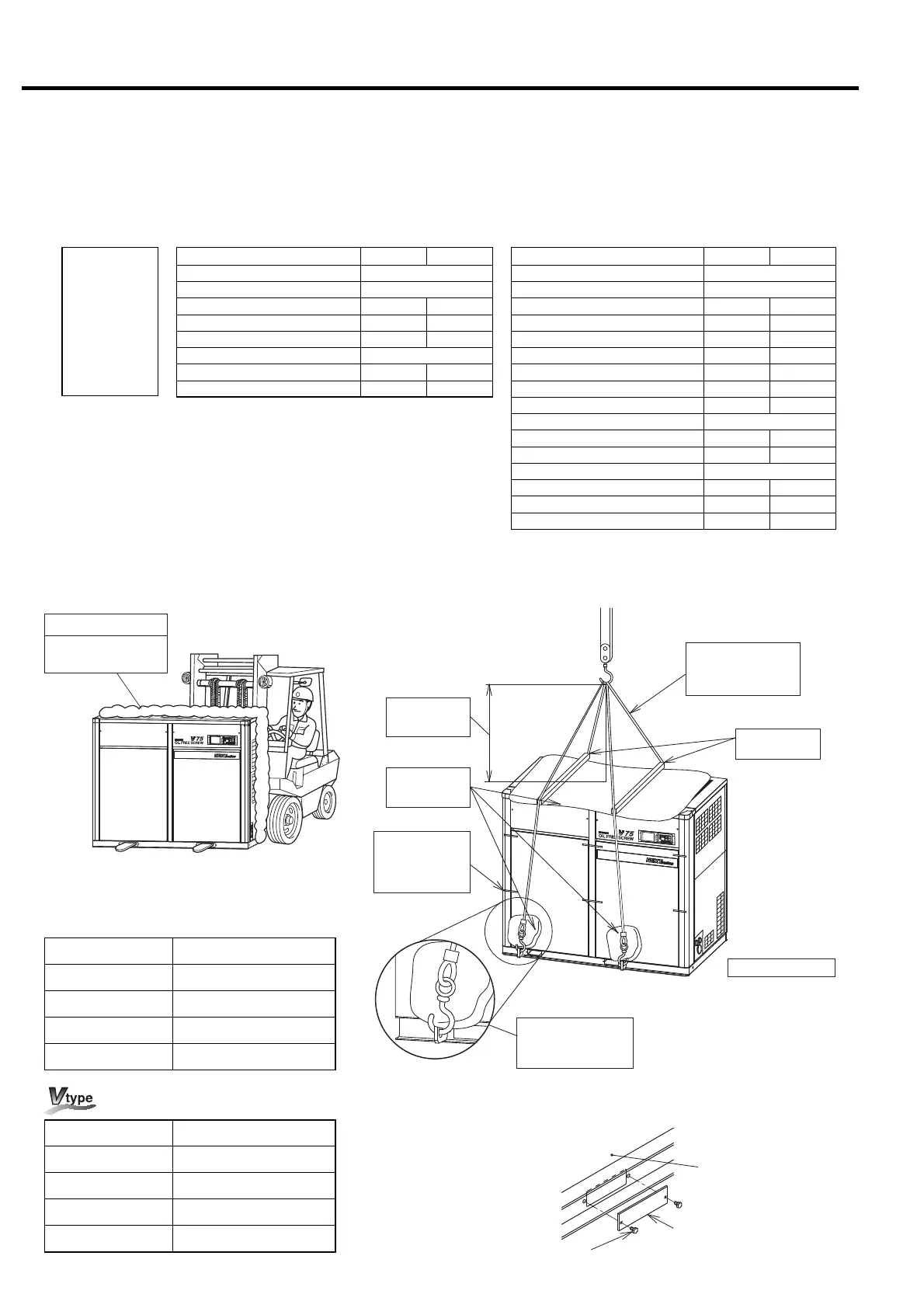

5. INSTALLING AND PIPING THE DSP
Pad
Use a pad to protect
the enclosure.
Use the adhesive
tapes to prevent the
front door from
detached during
conveyance.
Use a pad to
protect the
enclosure panel.
Use the adhesive tapes
to prevent the front door
from detached during
conveyance.
Keep the distance
of 67 inch (1.7 m)
or more.
Use the strong wires.
Adjust the wire length to
keep the balance when
hoisting it.
Lift the unit balanced.
Use the attached
tie frame.
5.1 Unpacking the Air Compressor
■ After unpacking the crate, verify that the product is in accordance with the order, by referring to section 15.
■ Verify that the product is not damaged or deformed during transportation.
Model Nameplate Standard Accessories
Output (kW)
Model
Frequency
(Hz)
5.2 Conveying the DSP Air Compressor
■ With a Forklift ■ With a Shop Crane
■ After installing the air compressor, plug the fork
slots with the fork slot covers.
Common Base
Fork Slot Cover
Bolt (M6×15)
Air-cooled
Fixed speed type Vtype
Foundation bracket, bolts, nuts 1 set
FORK SLOTS COVER set 1 set
R-NPT 1/4B FITTING 3 pcs 2 pcs
R-NPT 1/2B FITTING 4 pcs 4 pcs
HANDLE 1 pc 1 pc
Motorized Isolation Valve ASSY 1 set
GREASE PUMP 1 pc 1 pc
RMS GREASE 1 pc 1 pc
Water-cooled
Fixed speed type Vtype
Foundation bracket, bolts, nuts 1 set
FORK SLOTS COVER set 1 set
R-NPT 1/4B FITTING 3 pcs 2 pcs
R-NPT 1/2B FITTING 4 pcs 4 pcs
HANDLE 1 pc 1 pc
R-NPT 1/4B FITTING 3 pcs 2 pcs
R-NPT 1/2B FITTING 4 pcs 4 pcs
HANDLE 1 pc 1 pc
R-NPT 3/8B FITTING 1 pc 1 pc
Motorized Isolation Valve ASSY 1 set
GREASE PUMP 1 pc 1 pc
RMS GREASE 1 pc 1 pc
Motorized Water Isolation Valve ASSY 1 set
R-NPT 1 1/2B FITTING 2 pcs 2 pcs
BALL VALVE 1 pc 1 pc
R-NPT 1/2B FITTING 1 pc 1 pc
[Fixed-speed compressor]
Model Total Mass
DSP-45/55ATN 3,350 lbs (1,520 kg)
DSP-45/55WTN 3,280 lbs (1,490 kg)
DSP-75ATN 3,990 lbs (1,810 kg)
DSP-75WTN 3,660 lbs (1,660 kg)
Model Total Mass
DSP-55VATN 2,980 lbs (1,350 kg)
DSP-55VWTN 2,930 lbs (1,330 kg)
DSP-75VATN 3,480 lbs (1,580 kg)
DSP-75VWTN 3,130 lbs (1,420 kg)
