Hitachi NEXT Series User Manual

Enclosure
Oil Filling Port
Air Intake
(Inlet to the Air End)
Oil Level Gauge
Sling Fitting
Instrument Panel
Left Door
Plate of Operating/
Servicing Instructions
Air Exhaust
(Air Compressor Package)
Compressed Air Discharge
Power Supply Port
Air Intake
(Air Compressor Package)
Air Exhaust
Enclosure panels
lower the sound level
of the air compressor
package.
Use the port to fill the
gear case with oil.
This indicates the
quantity of the oil in
the gear case. Check
the oil level before
starting the DSP and
when operating it.
Use the sling fitting
when moving and
installing the DSP air
compressor.
Read carefully the
plate before operating
and servicing the DSP.
Open the left door only
when servicing the
DSP air compressor.
Keep it closed when
operating the DSP air
compressor.
This panel discharges
the hot air generated
in the air compressor.
Check the
specifications, power
supply and voltage
before connecting the
power supply.
Air Intake
Air Exhaust
Air Intake
Air Intake
OMR
8.5 for the details
3.1 for the details
6
2. GENERAL DESCRIPTION
2.1 Appearance
This section illustrates and describes the major components of the DSP air compressor. Be familiar with the name,
location and function of each component before using the DSP air compressor.

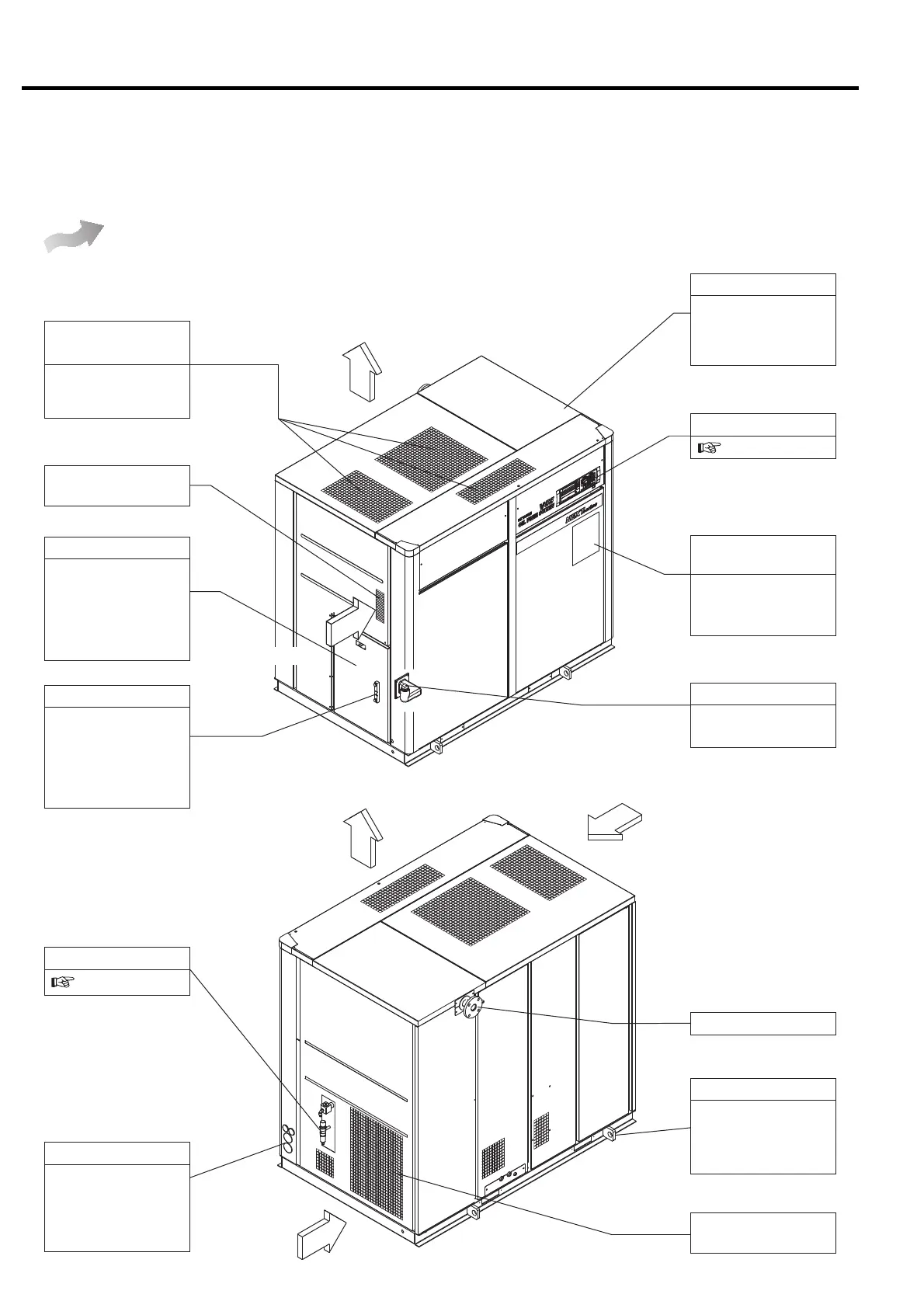

[Front View]
Air-Cooled
DSP-45/55/75ATN
DSP-55/75VATN
[Rear View]
