Hitachi NEXT Series User Manual

72
8. STANDARD COMPONENTS AND SUBSYSTEMS [Air/Oil/Water Flow]

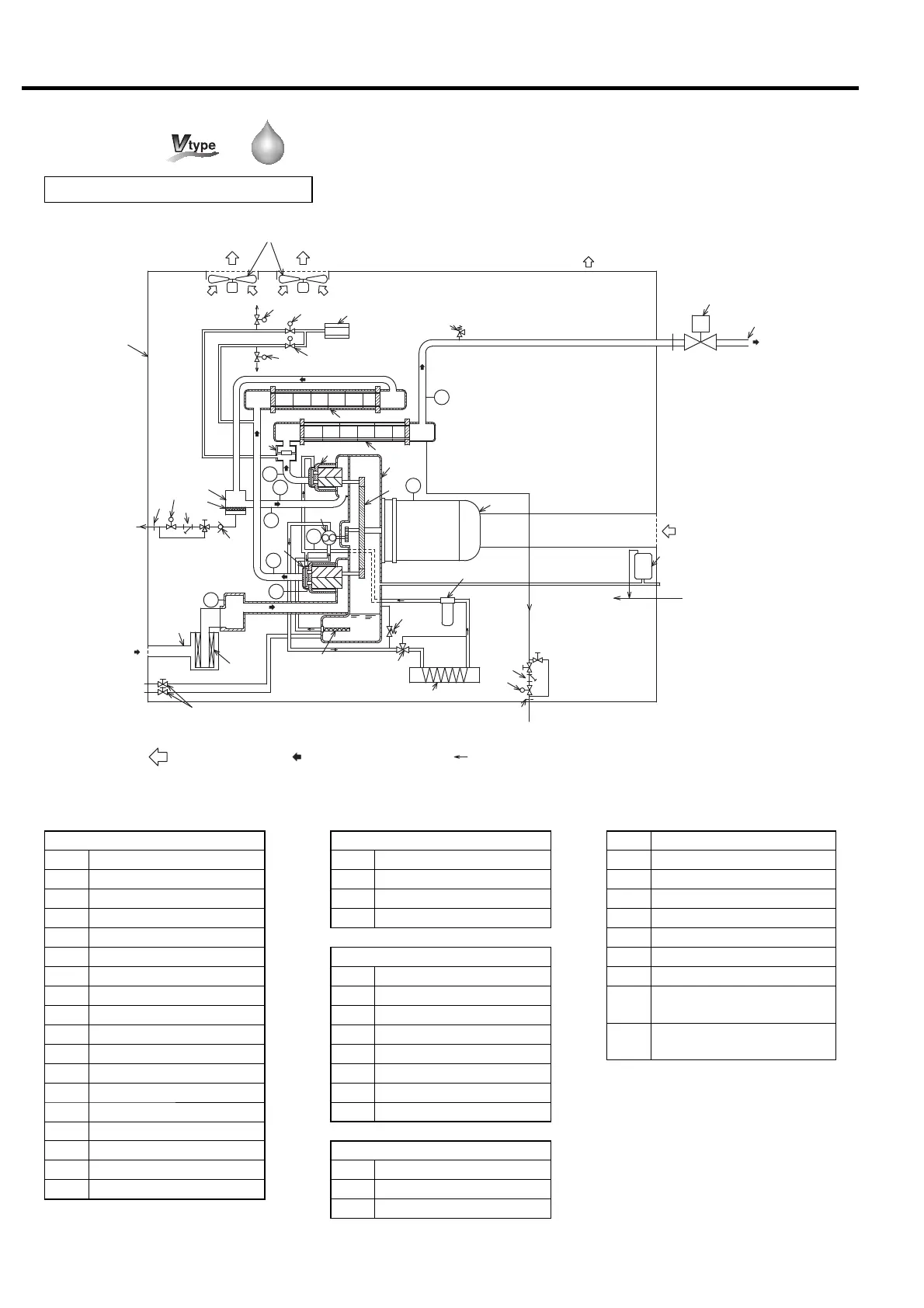

Flow diagram
Water-Cooled
13
9
7
51
6
21
53
32
52
11
10
PS2
4
3
5
8
33
31
TH3
TH2
1
PS1
TH4
TH5
63SV
24
22
22
23
23
38
39
13
34
35
14
14
PS4
15
2
36
18
THM
M
17
20
15
Air exhaust Air exhaust
Air exhaust
Drain discharge
Cooling air flow Compressed air flow Lubricating oil flow
Compressed
air discharge
Air intake for
main motor
Control air for OMR
Air intake for
compressed air
Oil drain
Oil drain
Intercooler
condensate
drain
Legend of Sensors and Switches
Symbol Part name
PS2
Pressure Sensor (discharge air pressure)
PS4 Pressure Sensor (oil pressure)
PS1 Pressure Sensor (interstage pressure)
TH2 Temperature Sensor (2nd-stage in)
TH4 Temperature Sensor (1st-stage out)
TH3 Temperature Sensor (2nd-stage out)
TH5 Temperature Sensor (oil)
THM
Temperature Sensor (for main
motor surface temperature)
63SV
Pressure Differential Sensor (For
suction filter clogging detection)
Compressed Air Flow and Oil Flow
Capacity Control & Blowoff Air Flow
21 Air Intake Filter
22 Blowoff Solenoid Valve (1)
23 Blowoff Solenoid Valve (2)
24 Blowoff Silencer
Oil Flow
31 Oil Strainer
32 Oil Pump
33 Oil Relief Valve
34 Oil Cooler
35 Oil Filter
36 Temperature Control Valve
38 Oil Drain Valve
39 Oil Mist Remover
Air Flow and Other
51 Fan
52 Enclosure
53 Air Intake Duct
Legend of the Diagram
Compressor Air Flow
1 1st-Stage Airend
2 2nd-Stage Airend
3 Gear Case
4 Step-up Gear
5 Main Motor
6 Intercooler
7 Check Valve
8 Aftercooler
9 Air Relief Valve
10 Discharge Port
11 Check Valve
13 Orifice
14 Drain Solenoid
15 Y-type Strainer
16 Drain trap
17 Demister
18 Motorized isolation valve
20
Drain separator
