English
ā 15 ā

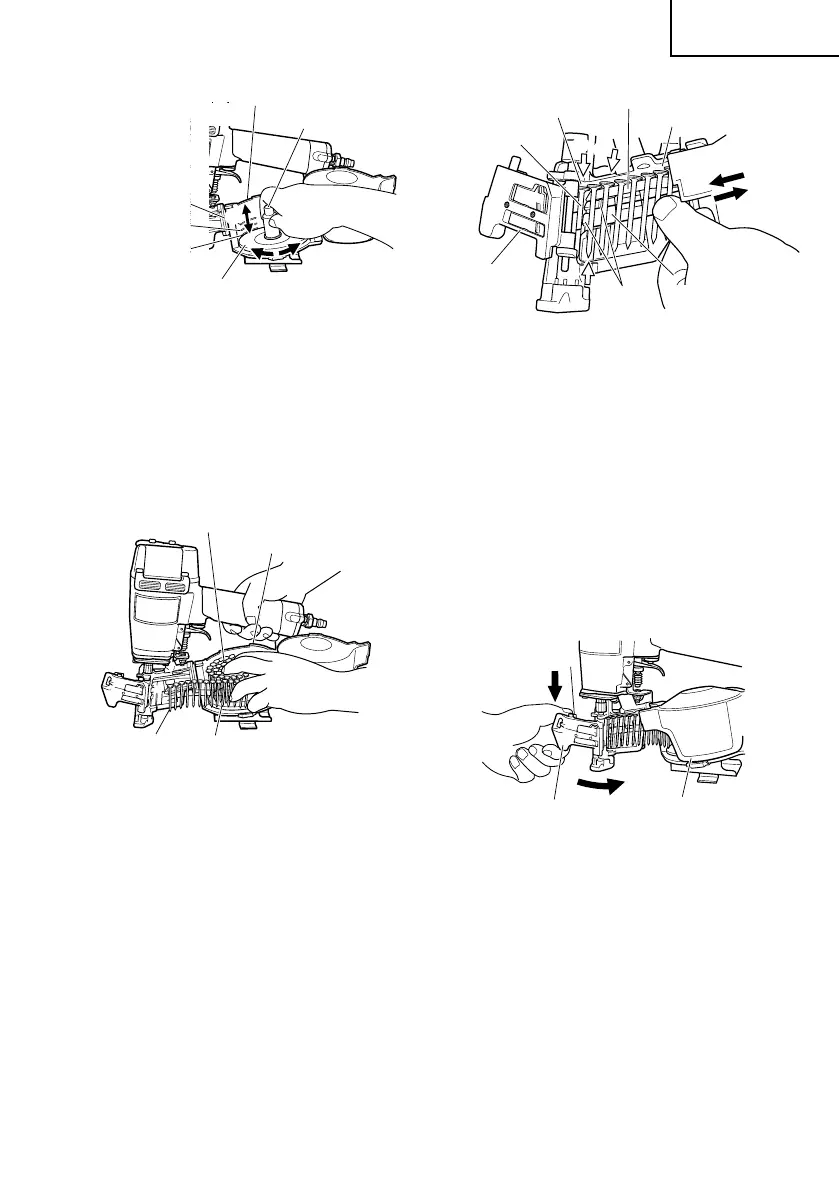

NOTE: Before loading nails in the magazine,
adjust the nail holder. If the magazine
cover is forcibly closed without
adjusting the nail holder correctly,
the nail holder may be damaged.
(3) Place the nail coil in the magazine.
Insert the first nail into the magazine
opening.
(4) Close the magazine cover.
(5) 1 Uncoil enough nails to reach the
driving hole.
2 Insert the first nail into the driving hole
and the second nail between the two
pawls of the feeder.
3 Fit the nail heads in the guide slot.
NOTE: Be careful not to deform the collated
wires and not to disengage the nails
with the guide surface.
Otherwise, the nail guide will not
close correctly.
4 Pulling the nails to the right.
After checking and making sure that
the magazine cover is closed, hook
your fingers on the nail guide and
knob, turn the nail guide clockwise
while pressing the knob downward,
and then close the nail guide
completely.
(6) Lock the knob completely.
The Nailer is now ready to operate.
For 1-1/2" (38 mm)
For 7/8", 1" and
1-1/4" (22 mm,
25 mm, 32 mm)
Plate
1
2
Nail Holder
For 1-3/4" (45 mm)
Magazine
3
First Nail
Magazine
Magazine Opening
Nail
Driving Hole
First Nail
Nail Guide
Guide Slot
Pawl
Guide Surface
Feeder
1
2
4
2
3
4
Knob
4
Nail Guide
Magazine Cover
