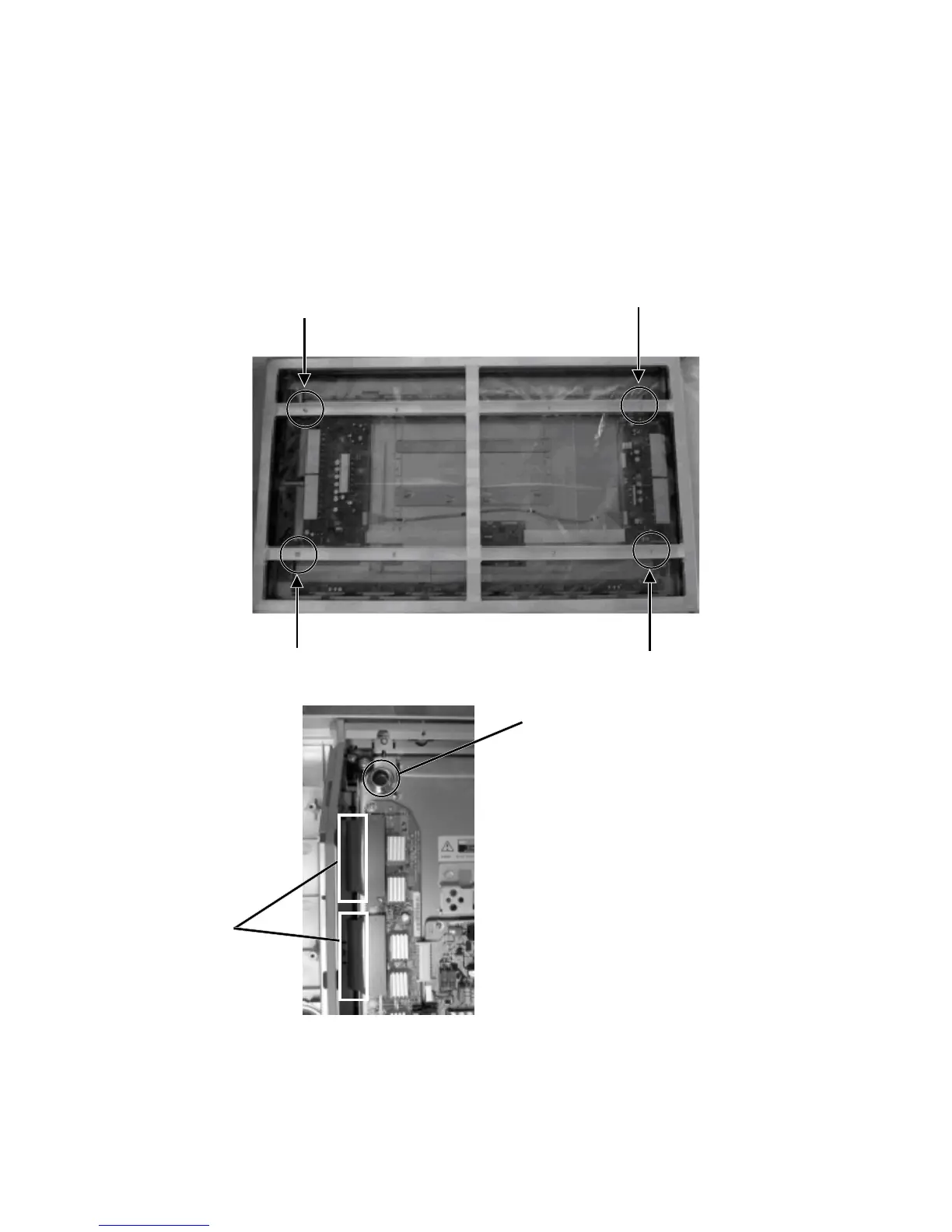

DISASSEMBLY INSTRUCTIONS
Handle the PDP Module with 2 people.
There is a step difference between the cover and the PDP Module, so when you remove the screws, place a cushion on it
to keep the PDP Module from being scratched. Then remove the 4 screws (1) carefully.
When you remove the cover, do not scratch the FPC on both ends of PDP Module.
Hold all four ends of the holder and be careful not to touch the glass area.
Be careful not to damage the vacuum exhaust pipe.
Moisture condensation may damage the PDP Module, so leave it in the service room for 48 hours.
Reuse the cover, vinyl sheet and screws when returning the PDP Module.
1.
2.
3.
4.
5.
6.
7.
NOTES FOR NEW PDP MODULE HANDLING
(1)
(1)
(1)
(1)
FPC
Vacuum Exhaust Pipe
PDP Module
