Hitachi P42A01 Service Manual

B1-8
DISASSEMBLY INSTRUCTIONS
Install the PDP Filter on the set. (Refer to 1-6: PDP FILTER PREPARATION)
Install the Shield Main on the set. (Refer to 1-5: PDP FILTER)
Assemble the Frame Main to the PDP Module.
Hold the Frame Main carefully and install the New PDP Module on the set.
Install the Side Jack Ass'y and Button Frame Ass'y on the set. (Refer to 1-4: PDP MODULE)
1-7: PDP MODULE
1.
2.
3.
4.
5.

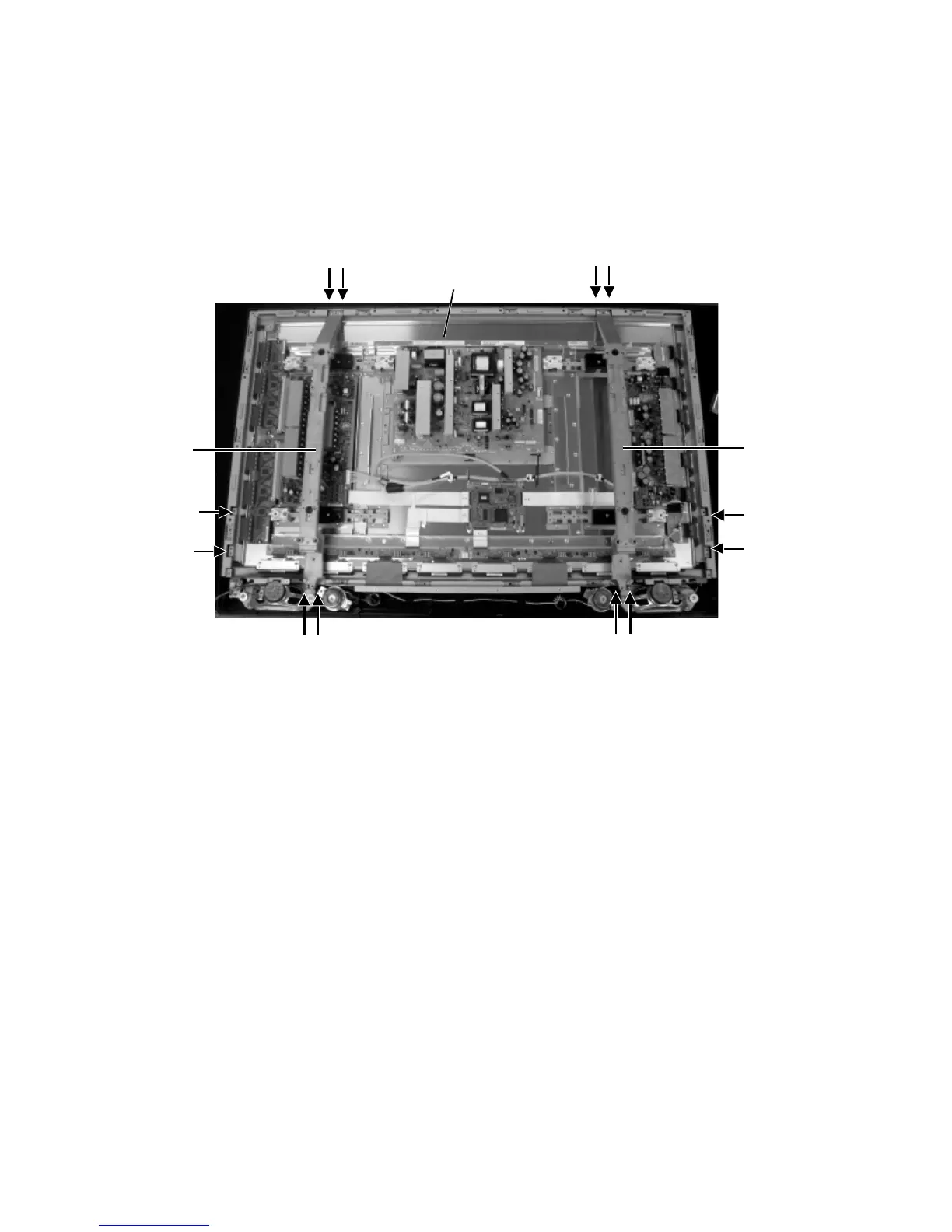

PDP Module
Frame Main
Frame Main
Screw
Screw
Screw
Screw
Screw
Screw
Screw
Screw
