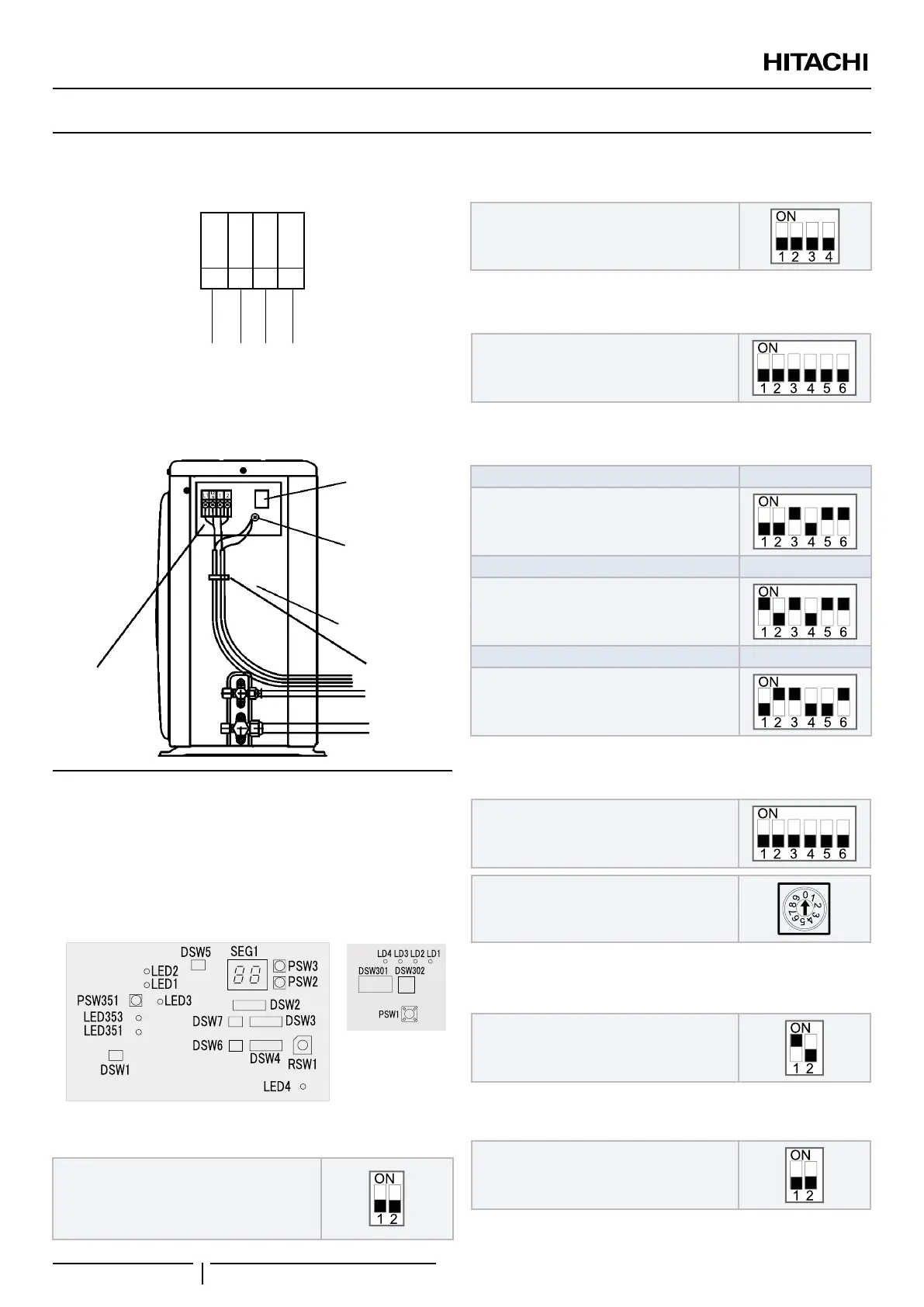

10.2 LIGAÇÕES ELÉTRICAS PARA UNIDADE EXTERIOR



L2
N
2




(5 V)









10.2.1 Ajuste dos comutadores DIP da unidade
exterior
Quantidade e posição dos comutadores DIP



PCB1

PCB2

DSW1: Não é necessário nenhum ajuste





DSW301: Modo teste de funcionamento

DSW2: Ajuste das funções opcionais
(obrigatória)

DSW3: Ajuste de potência (não é necessário
nenhum ajuste)
Modelo RAS-2WHVRP

Modelo RAS-2.5WHVRP

Modelo RAS-3WHVRP

DSW4 / RSW1: Não é necessário nenhum ajuste
(não alterar)


Micro interruptor n.º 5: Resistência do terminal
nal (não é necessário nenhum ajuste)

DSW6: Não é necessário nenhum ajuste (não
alterar)


PMML0509 rev.0 - 02/2019
82
