9.1.9 Removing Float Switch
1 Remove the drain pan according to the item “9.1.6 Removing
Drain Pan”.
2 Remove the insulation which attaches the wires for oat switch
and drain-up mechanism together.
3 Cut the plastic band xing the wires at the xing plate for oat
switch.
4 Removing Float Switch. The oat switch is attached next to the
drain-up mechanism. Remove the oat switch by loosening the
xing screw for the xing base.
? NOTE
• When reassembling, wrap up the wires for oat switch and drain-up
mechanism together by the insulation. Fix securely them to the original
position. When attaching the drain pan again, pay attention not to pull
the wires strongly. Otherwise, the insulation attaching at the cabinet
may be peeled.
• Pay attention to handle the oat switch. If it is dropped to a oor, the
malfunction may occur.
• When attaching the oat switch, tighten the screw by hand. (Do not use
a motor-driven screwdriver.)

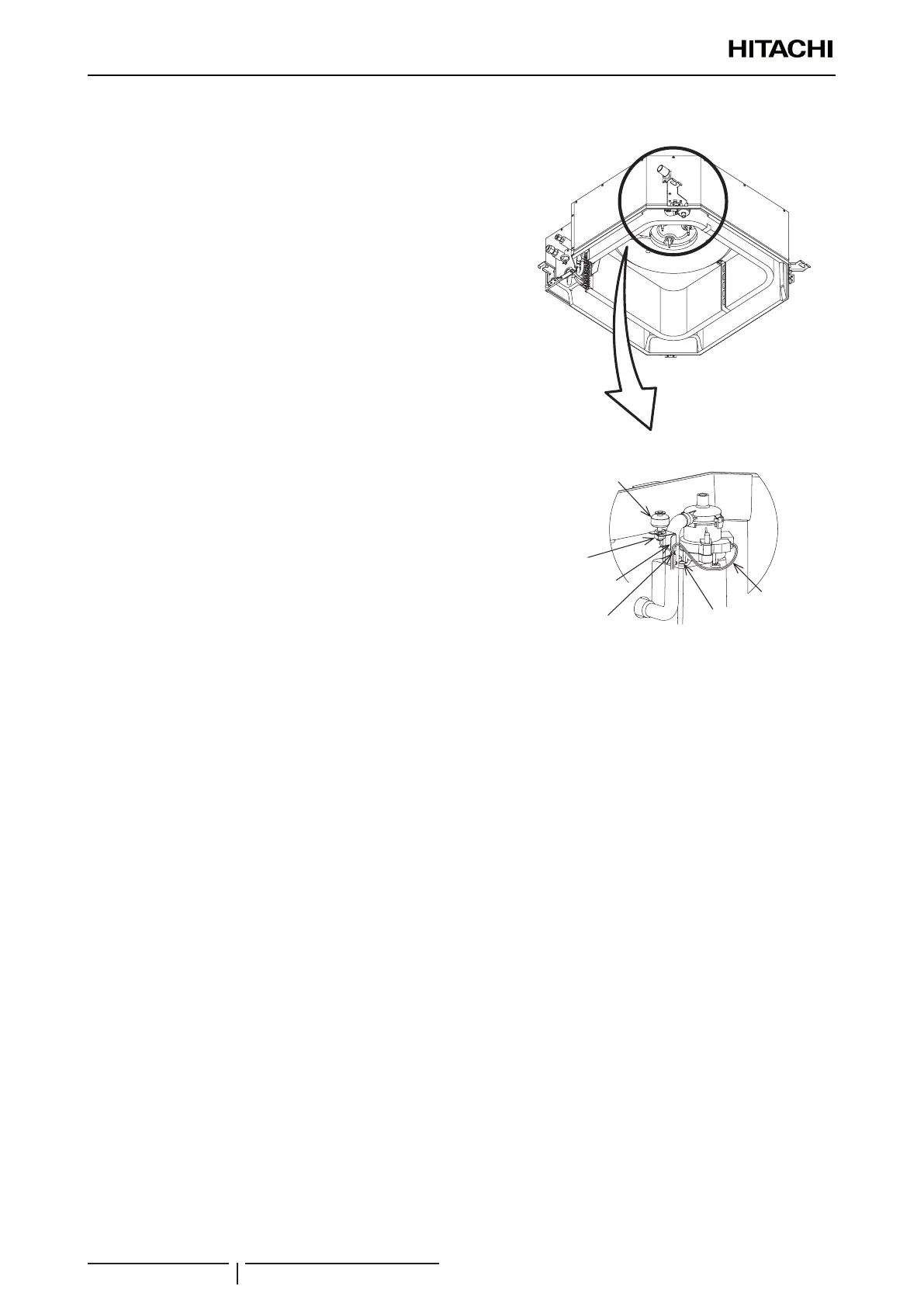

Float switch
Nut
Fixing plate
for oat switch
Plastic band
Lead wires
Screw for
xing plate
