9.2.5 Removal of the fan runner and the fan motor
1 Remove the air inlet grille as indicated in “9.3.1 Removal of the
Air lter and the Air inlet grille”.

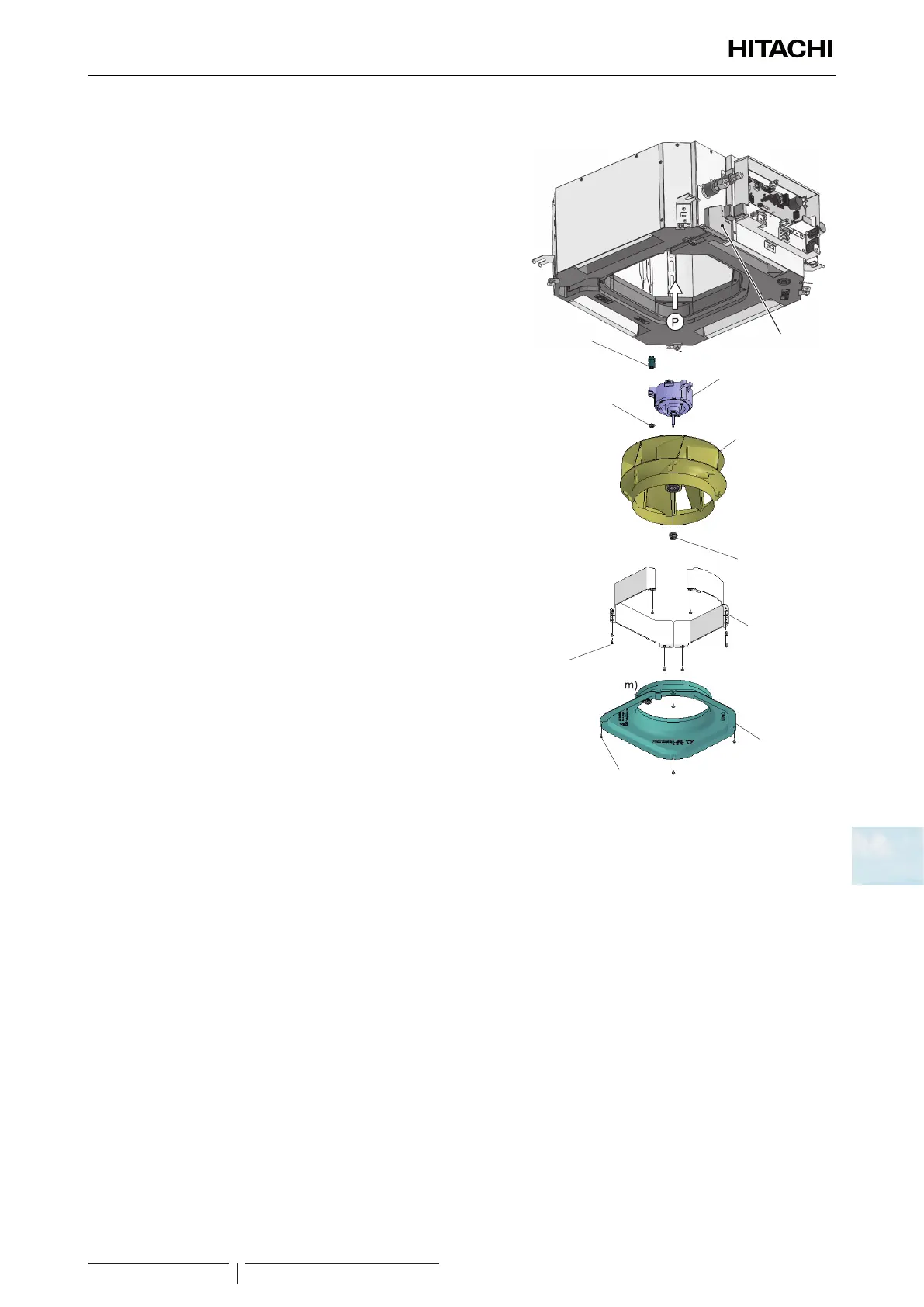

Vibration
absorver
(3 pcs.)
Fixing nut
(3 pcs.)
Fan motor
Fan runner
Bell-mouth
Fixing nut
Fan guide
Fixing screw (x8)
Fixing screw (x4)
Wire cover
2 Remove the bell-mouth. Remove the 4 xing screws attaching
the bell-mouth to the drain pan and remove the bell-mouth.
3 Removing the fan guide. Remove the 8 xing screws and
remove the drain pan.
4 Removing the Fan runner and the Fan Motor
a. Remove the nut and the washer xing the fan runner.
b. Remove 3 nuts xing the fan motor.
c. Then remove the fan motor.
? NOTE
When reassembling these parts, tighten the nuts with a tightening
torque of 8N-m.
