3 Remove the electrical box cover.
4 Remove the service cover.
The liquid and gas pipe thermistors are secured to the copper
piping by a special clamp.
• Liquid pipe thermistor: covered with cork tape.
• Gas pipe thermistor: covered with pipe insulation.
Nº Part
1 Location of the thermistor
? NOTE
• Black connector: liquid thermistor.
• Yellow connector: gas thermistor.

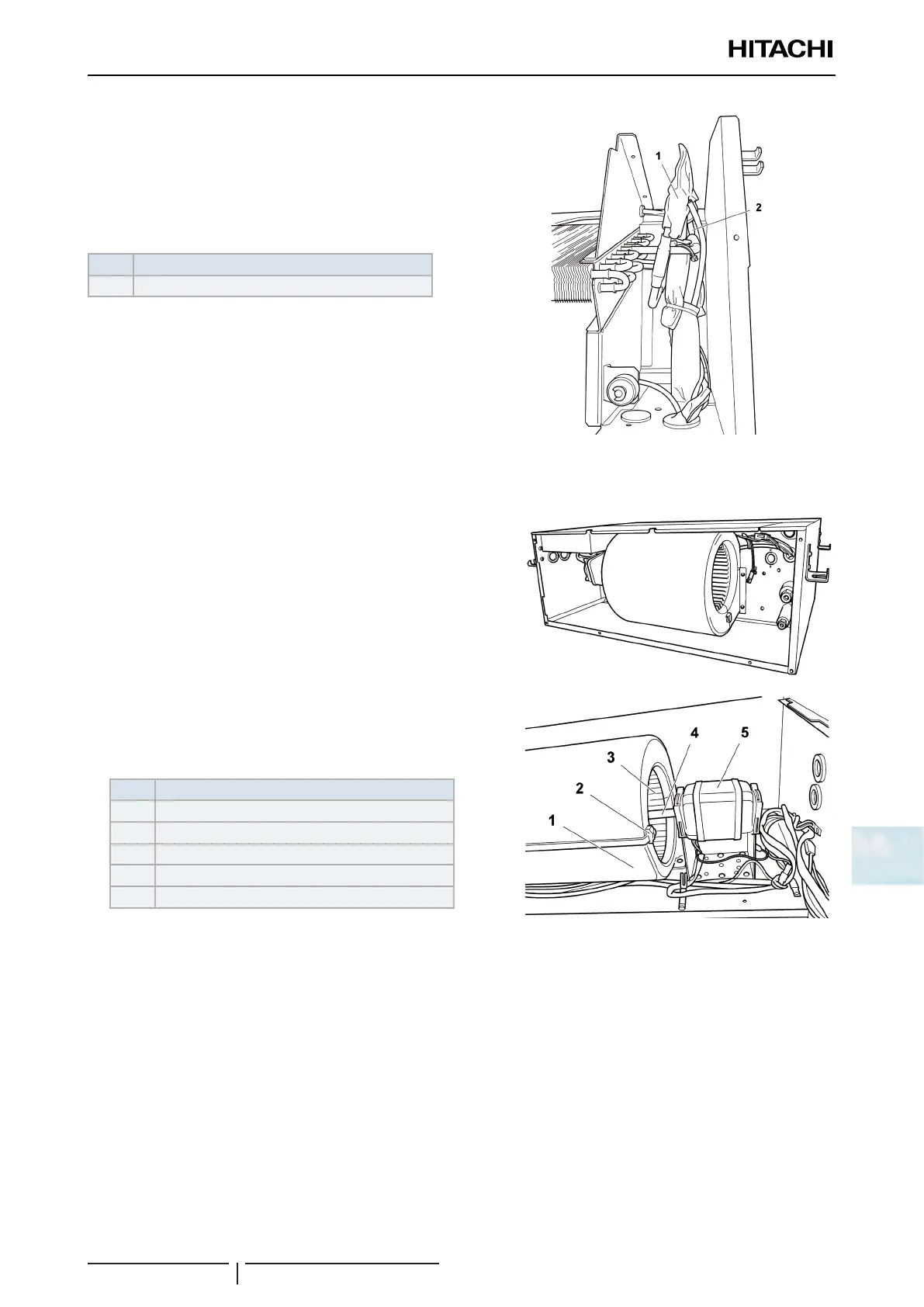

9.8.4 Removal of the fan parts
Fan parts: fan motor, fan casing and duct.
1 Remove the rear cover as indicated in chapter “9.8.2 Removal of
the inlet and outlet air thermistors”.
2 Remove the tape located in the centre of the casing.
3 Press the locks and remove half of the fan casing.
4 Remove the xture support screws and carefully remove the
motor together with the fans.
5 Loosen the screws securing the fans to the motor shaft.
? NOTE
If the fan casing is to be fully removed, remove the screws securing the
other half to the fan motor xture.
Nº Part
1 Fan casing
2 Lock
3 Fan duct
4 Shaft
5 Fan motor
