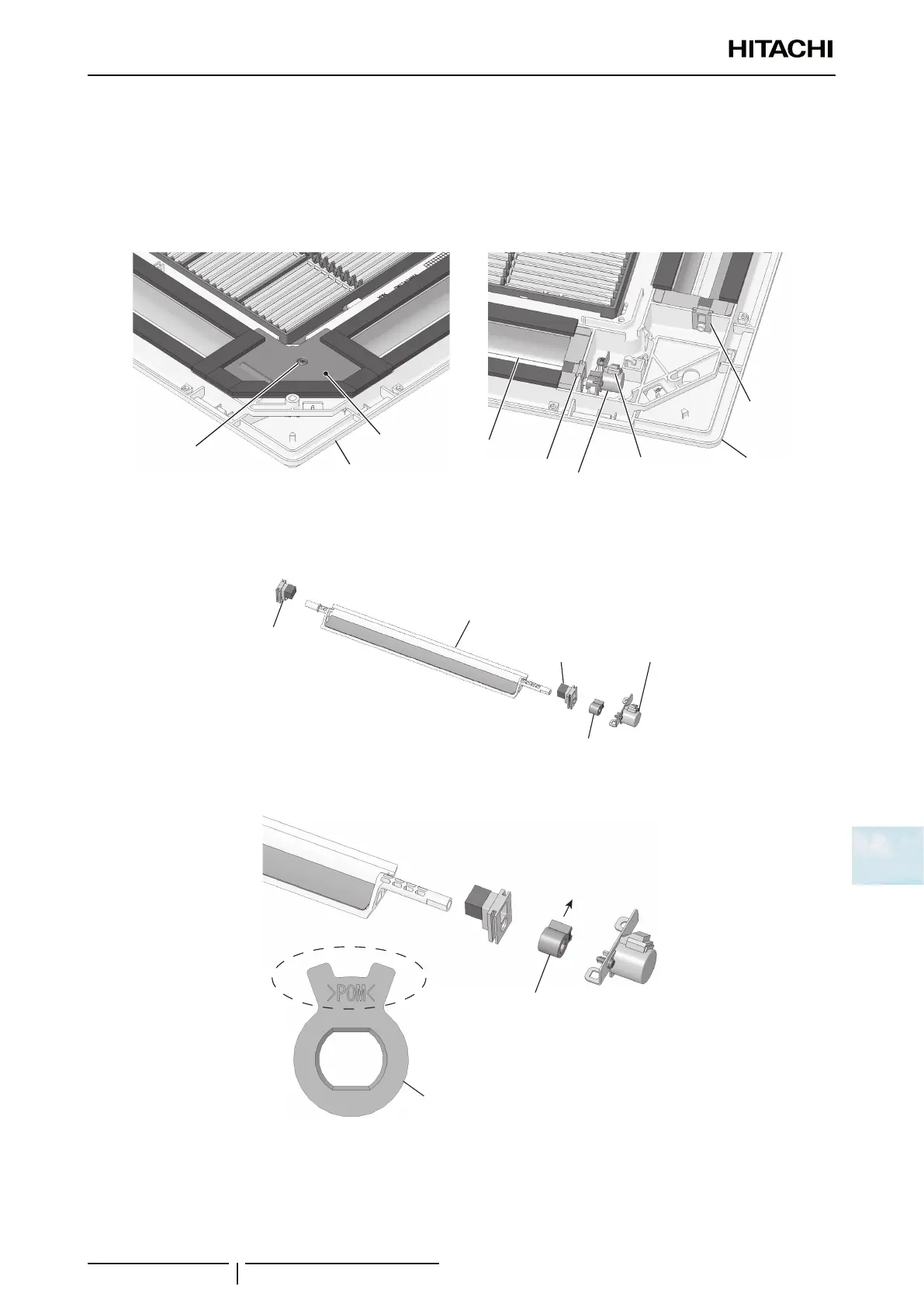

9.2.13 Removal of the automatic louver motor
1 Remove the optional air panel in line with the instructions given in chapter “9.2.4 Removal of the optional air panel”.
2 Remove the xing screw for C-cover and remove the C-cover.
3 Remove the xing screw on the AS motor from the air panel. Then, remove the louver, the louver bearing and the AS
motor.
4 Disconnect the connector for the AS motor. Press the catch to disconnect the connector to avoid breakage.
Screw
Air panel
C-Cover
Louver
Bearing
AS Motor
Connector
Air panel
Bearing
Bearing
Bearing
Louver
AS Motor
Stopper
Stopper
Air inlet side
Pay attention to the
direction of the stopper.
