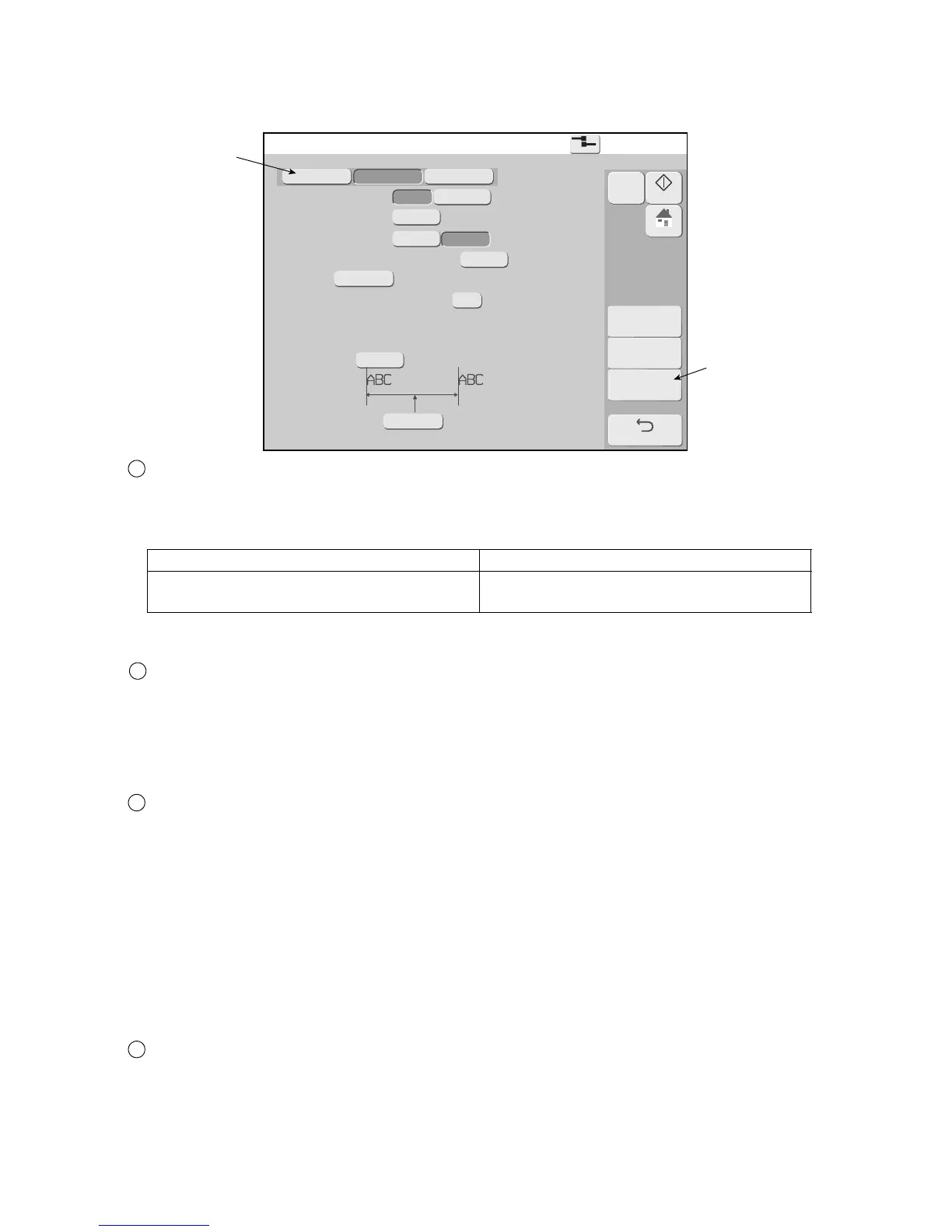

2nd screen of “Print specifications” screen
Product speed matching
●When printing is conducted with this feature activated, the character width is maintained
irrespective of the print target transport speed changes.
7
Difference between product speed matching setting
None Encoder
Prints per individual scan for an interval of
a definite period of time.
Printing is performed scan by scan at each
encoder pulse.
Refer to “4. Electric signal connection” of the Technical Manual for details.
Pulse rate division factor
●Specifies the pulse rate division Factor that determines the intervals at which the encoder signal is to be
recognized.
●The selectable setting ranges from 1/1 to 1/999.
●When a setting of 1/1 is selected, no pulse rate division Factor is effected.
●This feature cannot be activated if the product speed matching feature is disabled.
Speed compensation (RX-S)
●Set to prevent changes in the print position.
●Cannot be set when a Product speed matching feature is not specified.
●Adjusts print start delay according to the set value of “Distance between print head and work”.
●Cannot be used when Repeat print is specified.
●Note that a Print Overlap Fault may be generated when the printing interval is extremely short when the
Speed compensation setting is changed from “Disable” to “Enable”.
●Fine adjusts the print start delay from the setting value of the Speed compensation fine control.
However, the following condition must be satisfied.
0 [Print start delay]+[Speed compensation fine control]
●Set values for “Speed compensation” and “Speed compensation fine control” are not memorized per
print date but held as a common value.
Line speed
●Inputs the line speed.
●When the line speed was input, the print start delay and repeat intervals set values can be input in mm
units by pressing change unit.
●The selectable setting ranges from 0 to 999.9 m/minutes.
●This feature cannot be activated if the product speed matching feature is enable.
8
9
10
<
=
Changes the repeat
intervals input units.
