●Set the print specifications 4-63
Distance between print head and work.
●Inputs the distance between the print head and the print target.
●When product speed matching is “encoder” and “Speed compensation” was set to “Enable”, the print
start delay is adjusted by considering the distance between the print head and the print target.
When “Speed compensation” is set to “Disable”, the distance between the print head and the print target
is not referenced, even if set.
11
12
●The term "chattering" refers to a state where signal voltage instability occurs when the sensor
signal starts or ends.
Target sensor timer
●You can specify the time for displaying a fault message when the sensor is continuously ON.
●When the sensor on time exceeds a set value, the message "Target Sensor Fault" is displayed.
●If the "Target sensor timer" feature is not needed, select a setting of 0.
●The selectable setting is from 0.0 to 99.9 seconds.
Target sensor filter
●Perform this setup when you intend to maintain operation normality even in the event of
chattering.
●The time for ignoring chattering is set for when a sensor signal chatters when printed matter shields the
sensor from light.
●When a fault occurs due to chattering, the message "Print Overlap Fault" is displayed.
●If the target sensor filter feature is not needed, select a setting of 0.
●The selectable setting ranges from 0 to 9999 milliseconds.
13

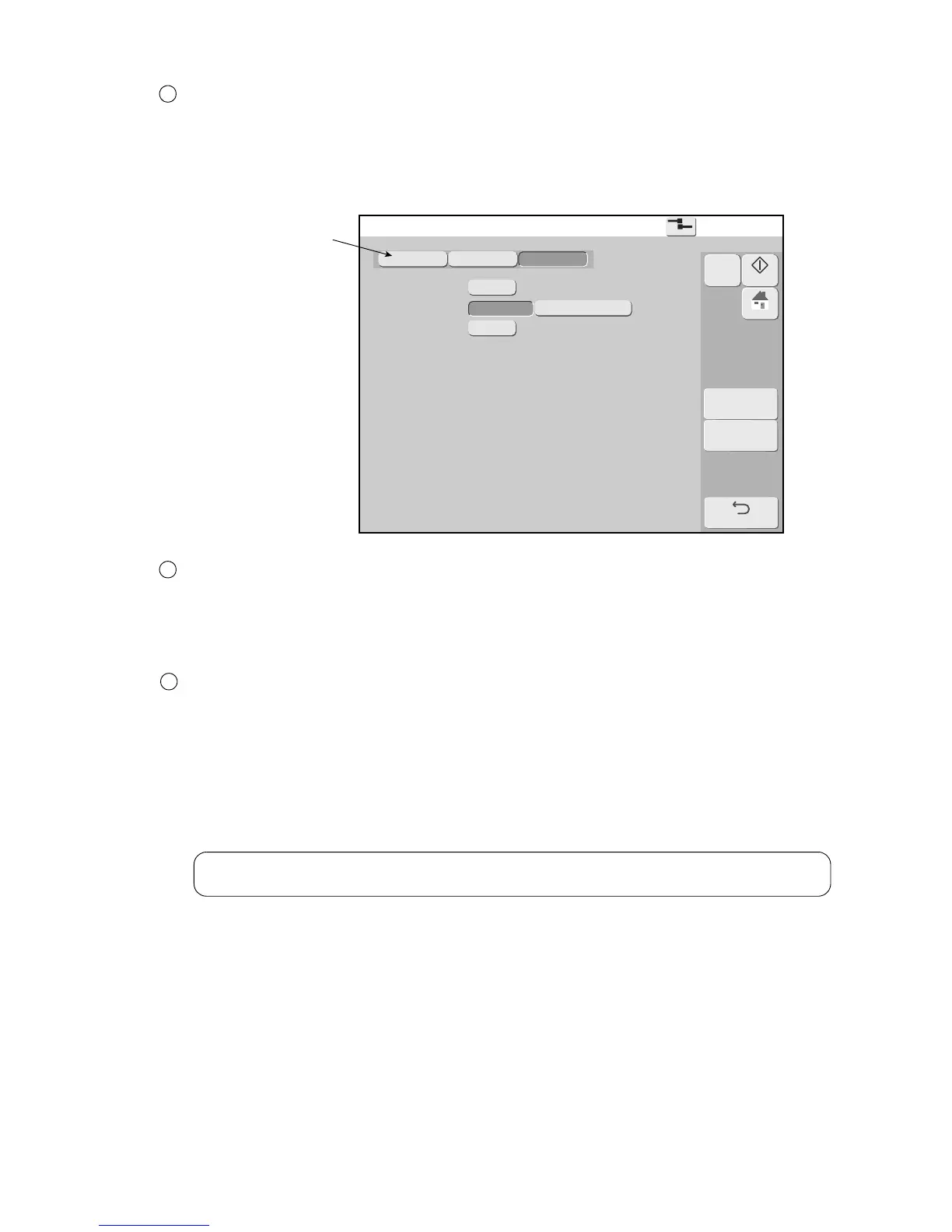

Screen switching
