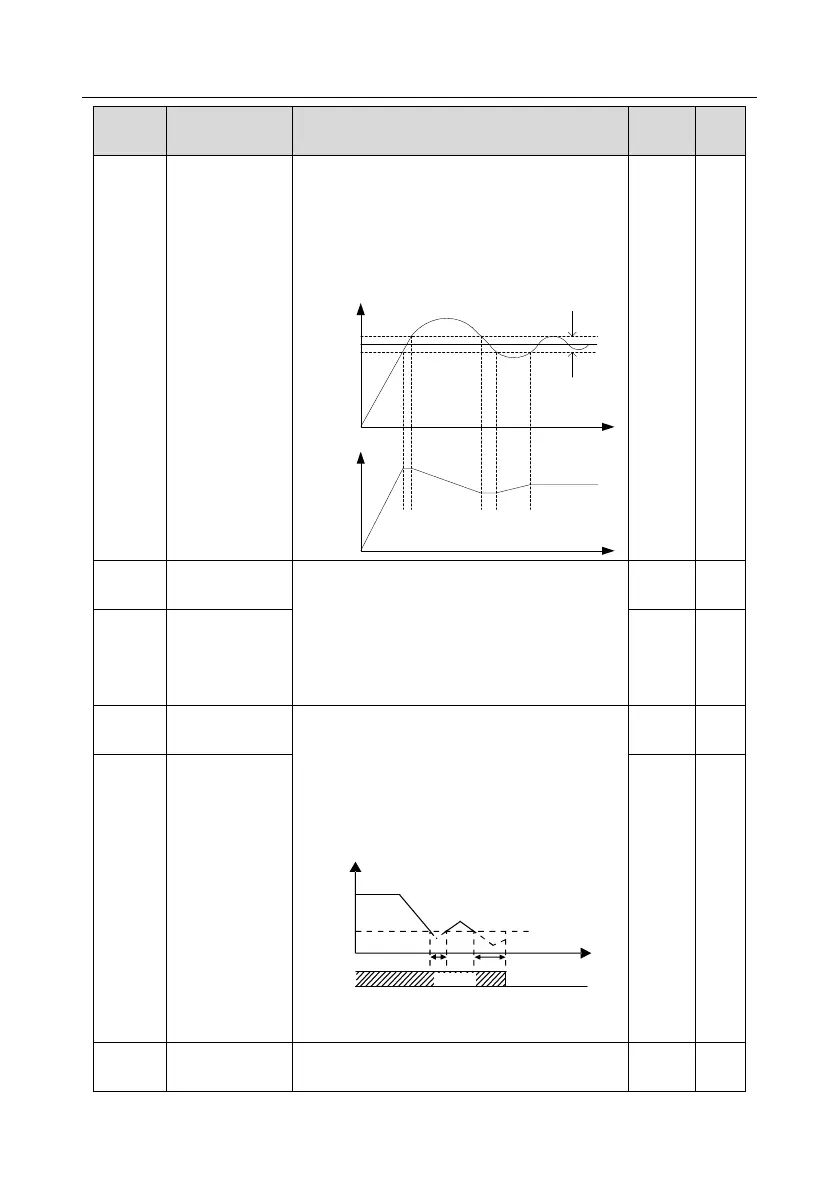

Hitachi S1 Series User Manual

S1 series standard inverter
-139-
Function
code
Name
Detailed parameter description
Default
value
Modify
P09.08
Limit of PID
control deviation
It is the max. allowable deviation of PID system
output value relative to closed-loop reference
value. Within this limit, PID regulator stops
regulation. Set this function code properly to
regulate the precision and stability of PID system.
Setting range: 0.0–100.0%
Reference
Deviation
limit
Feedback
Output
frequency f
Time t
Time t
0.0%
○
P09.09
Upper limit value
of PID output
These two function codes are used to set the
upper/lower limit value of PID regulator.
100.0% corresponds to Max. output frequency
(P00.03) or max. voltage (P04.31)
Setting range of P09.09: P09.10–100.0%
Setting range of P09.10: -100.0%–P09.09
100.0%
○
P09.10
Lower limit value
of PID output
0.0%
○
P09.11
Feedback offline
detection value
Set PID feedback offline detection value, when
the detection value is no more than the feedback
offline detection value, and the duration exceeds
the value set in P09.12, the inverter will report
"PID feedback offline fault", and keypad displays
PIDE.
T
Output frequency
t1 t2
P09.11
t1＜T2, so the inverter
continues running
t2=P09.12
Running
Fault output PIDE
PIDE
Setting range of P09.11: 0.0–100.0%
Setting range of P09.12: 0.0–3600.0s
0.0%
○
P09.12
Feedback offline
detection time
1.0s
○
P09.13
PID control
selection
0x0000–0x1111
Ones:
0x0001
○

Hitachi S1 Series Specifications

General

Output Frequency	0 - 400 Hz
Overload Capacity	150% for 60 seconds
Frequency	50/60 Hz
Control Method	Sensorless Vector Control
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit
Communication	RS485, Modbus RTU
Output Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC (Matches Input Voltage)
Cooling Method	Fan Cooled
