Hitachi S1 Series User Manual

S1 series standard inverter
-221-

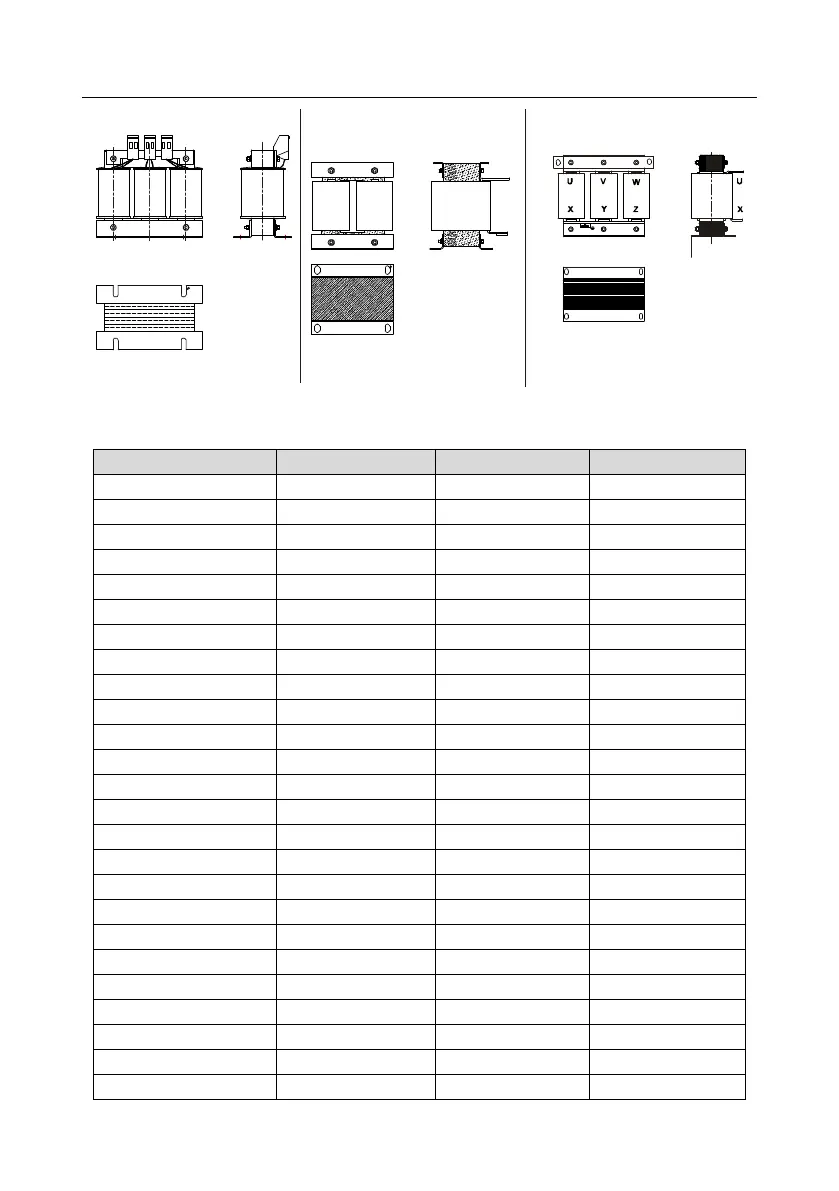

Input reactor DC reactor Output reactor
Reactor models
Inverter model
Input reactor
DC reactor
Output reactor
S1-00032SFE
/
/
/
S1-00055SFE
/
/
/
S1-00100SFE
/
/
/
S1-00130SFE
/
/
/
S1-00032HFE
ACR-1R5-4
/
OCR-1R5-4
S1-00055HFE
ACR-1R5-4
/
OCR-1R5-4
S1-00073HFE
ACR-2R2-4
/
OCR-2R2-4
S1-00125HFEF
ACR-004-4
/
OCR-004-4
S1-00170HFEF
ACR-5R5-4
/
OCR-5R5-4
S1-00230HFEF
ACR-7R5-4
/
OCR-7R5-4
S1-00320HFEF
ACR-011-4
/
OCR-011-4
S1-00380HFEF
ACR-015-4
/
OCR-015-4
S1-00450HFEF
ACR-018-4
/
OCR-018-4
S1-00600HFEF
ACR-022-4
/
OCR-022-4
S1-00750HFEF
ACR-037-4
/
OCR-037-4
S1-00920HFEF
ACR-037-4
/
OCR-037-4
S1-01150HFEF
ACR-045-4
/
OCR-045-4
S1-01500HFEF
ACR-055-4
/
OCR-055-4
S1-01700HFEF
ACR-075-4
/
OCR-075-4
S1-02150HFEF
ACR-0110-4
/
OCR-110-4
S1-02600HFEF
ACR-110-4
/
OCR-110-4
S1-03050HFEF
ACR-160-4
DCR-132-4
OCR-200-4
S1-03400HFEF
ACR-160-4
DCR-160-4
OCR-200-4
S1-03800HFEF
ACR-200-4
DCR-200-4
OCR-200-4
S1-04250HFEF
ACR-200-4
DCR-220-4
OCR-200-4

Hitachi S1 Series Specifications

General

Output Frequency	0 - 400 Hz
Overload Capacity	150% for 60 seconds
Frequency	50/60 Hz
Control Method	Sensorless Vector Control
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overheat, Short Circuit
Communication	RS485, Modbus RTU
Output Voltage	3-Phase 200-240VAC, 3-Phase 380-480VAC (Matches Input Voltage)
Cooling Method	Fan Cooled
