Hitachi SJ300 Series

6

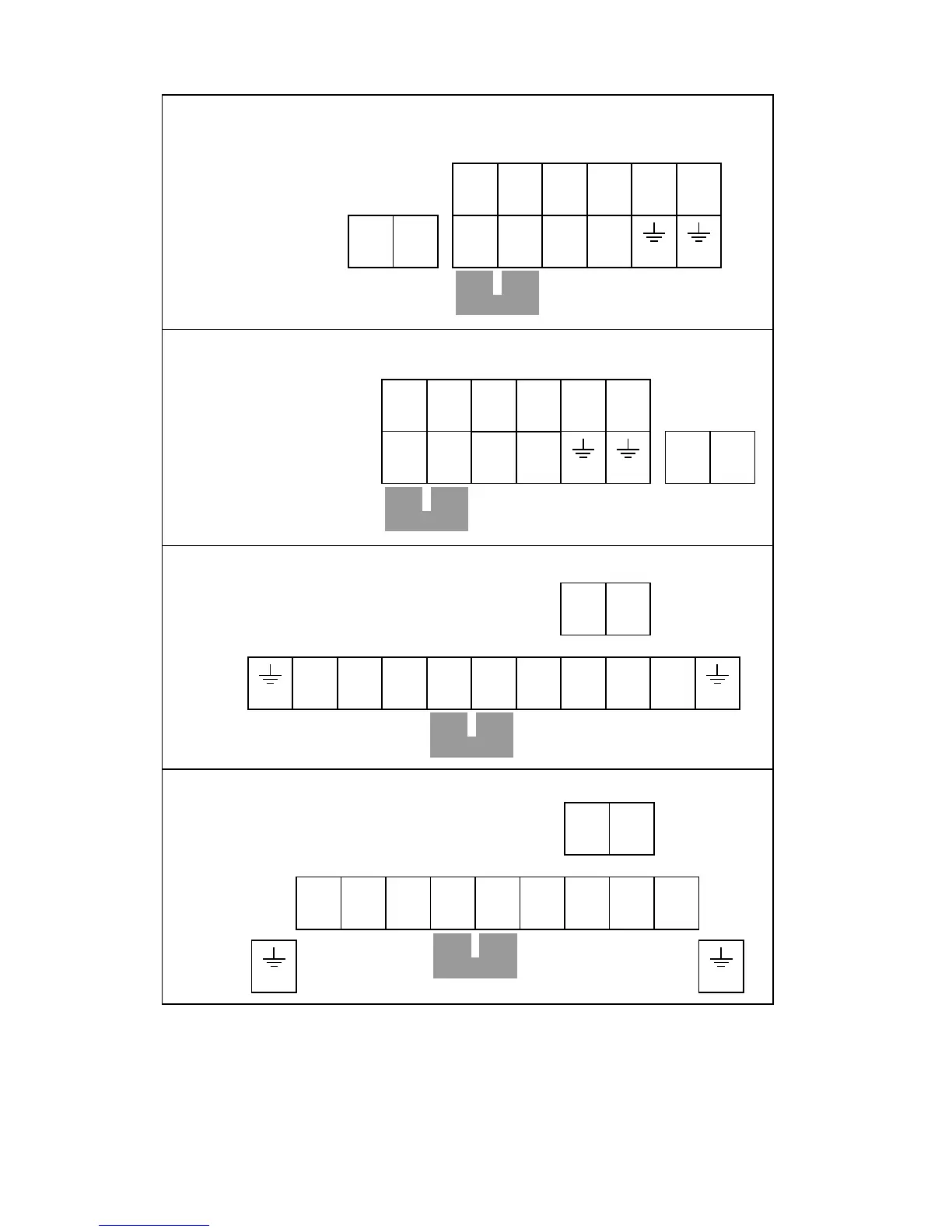

Power Circuit Terminals
(L1)
R
(L2)
S
(L3)
T
(+1)
PD
(T2)
V
(T3)
W
(G)(G)
(R0)
R0
(T0)
T0
(L1)
R
(L2)
S
(L3)
T
(+1)
PD
(+)
P
(T2)
V
(T3)
W
(G)(G)
(R0)
R0
(T0)
T0
(L1)
R
(L2)
S
(L3)
T
(+1)
PD
(+)
P
(T2)
V
(T3)
W
(G) (G)(R0)
R0
(T0)
T0
(–)
N
(T1)
U
(+)
P
(–)
N
(T1)
U
(–)
N
(T1)
U
(RB)
RB
Inverter models:
–004LFU,
–007 to –055LFU,
–007 to –055HFE, HFU
(L1)
R
(L2)
S
(L3)
T
(+1)
PD
(+)
P
(T2)
V
(T3)
W
(G) (G) (R0)
R0
(T0)
T0
(–)
N
(T1)
U
(RB)
RB
Inverter models:
–075LFU
–075HFE, HFU,
–110LFU
–110HFE, HFU
Inverter models:
–150LFU, 185LFU,
–300LFU, –370LFU,
–150 to –550HFE, HFU
Inverter models:
–220LFU, –450LFU, –550LFU
–750 to –1100HFE, HFU,
–1320HFE, –1500HFU
Jumper
Jumper
Jumper
Jumper
