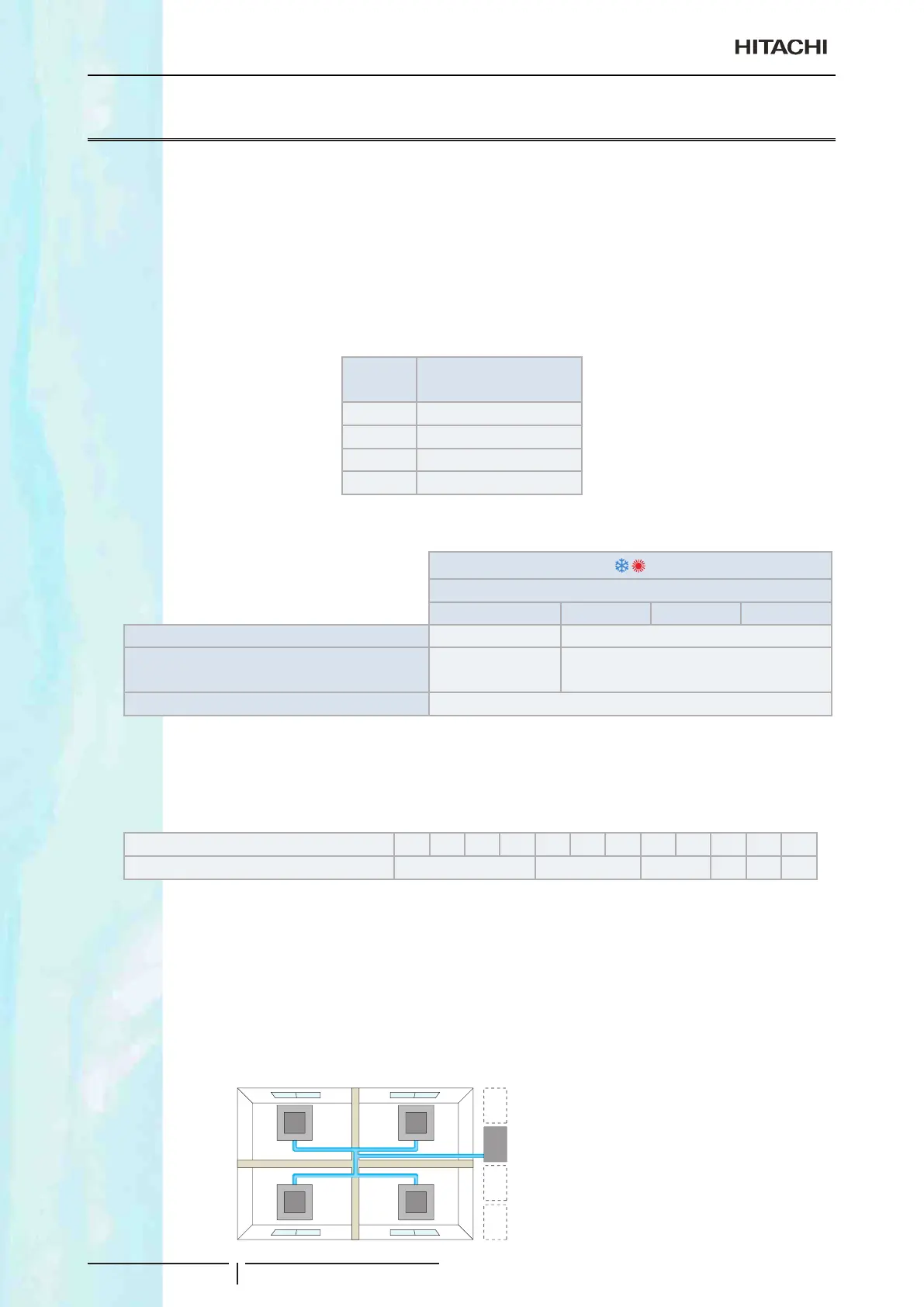

Hitachi UTOPIA R32 Series Technical Catalogue

2 Features and benets
General features and benets of the UTOPIA Prime / UTOPIA IVX Prime Series
TCGB0136 rev.1 - 05/2021
22
2.3 General features and benets of the UTOPIA Prime / UTOPIA IVX
Prime Series
1 Connected capacity ratio of Indoor Units from 90% up to 115% (from 90% up to 100% for 3HP).
2 Connection of up to 4 Indoor Units (depending on the models).
3 Compliance with Eco Design (ErP) and Energy Labelling (ELD) directives about seasonal energy performance:
- ErP 206/2012&ELD (626/2011) for models up to 12kW of Cooling capacity.
- ErP 2016/2281 for models higher than 12kW of Cooling capacity.
4 Minimum connectable capacity of Indoor Units as low as 0.8HP.
2.3.1 Main features
The number of the indoor units connectable to one outdoor units is:
HP
Maximum number of
connectable indoor units
3
2
4
4
5
4
6
4
? NOTE
Please check chapter 4.1 Combinability range.
Outdoor unit model
3 HP 4 HP 5 HP 6 HP
Maximum number of connected indoor units
2 4
Connected capacity ratio of indoor unit %
(number of connected Indoor Units)
90-100% (1 or 2
units)
90-115% (1 to 4 units)
Minimum capacity of indoor units (HP)
0.8
? NOTE
Where the parameters of installation are close to their limit values (long indoor-to-indoor pipe distances, high outdoor-to-indoor
height difference, long pipes in general, etc) it is recommended to follow table for best comfort (see chapter 4.1.2 Connected
capacity ratio)
Indoor unit with the highest capacity (HP) 0.8 1.0 1.3 1.5 1.8 2.0 2.3 2.5 3.0 4.0 5.0 6.0
Indoor unit with the lowest capacity (HP) 0.8 1.0 1.3 1.5 1.8 2.0

Easy installation work
Multiple indoor units can be connected to one outdoor unit. As a result, piping and wiring work becomes as easy as when
arranging just one refrigerant system. The installation work is made easier and with a shorter schedule, in comparison
with the single type where an outdoor unit is required for each indoor unit.
Easy and shortened installation schedule become possible because four indoor units can be connected to one refrigerant
system.
This helps to save more installation space and so increases exibility in installation location.
One refrigerant cycle
One outdoor unit
Reduction of
installation
area
