7 General dimensions
Dimensions
TCGB0136 rev.1 - 05/2021
72

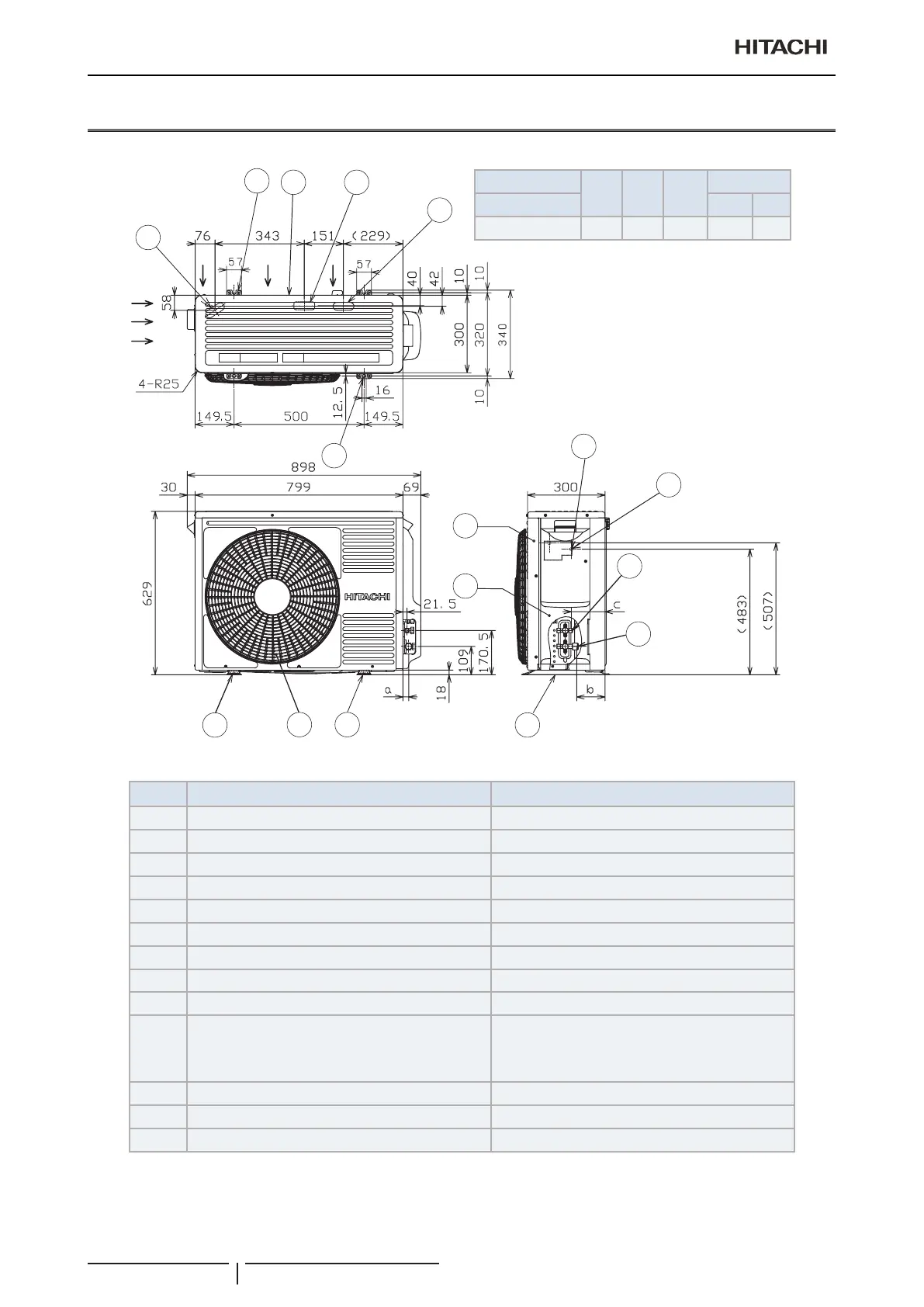

7.1 Dimensions
7.1.1 RAS-3HVRC2
1
3 4
1
7
8
6
9
10
11
12
13
5
Dimension
a b c
on table
Model d e
RAS-3HVRC2 26.5 103 127.5 15.88 9.52
Units in mm.
Number Description Remarks
1 Punched drain hole 30x80 long hole
2 Attachment hole for M10 anchor bolt 2-U cut hole
3 Air suction inlet —
4 Punched drain hole For drain pipe
5 Attachment hole for M10 anchor bolt 2-Long hole
6 Foot part
7 Air discharge outlet —
8 Pipe cover —
9 Service cover —
10
Terminal board for power supply and transmission
Terminal screw of power supply wire (M5)
Terminal screw of transmission wire (M4)
—
11 Terminal screw of earth wire (M5) —
12 Connection of refrigerant liquid pipe With are nut for Øe copper pipe
13 Connection of refrigerant gas pipe With are nut for Ød copper pipe
