MAIN PARTS

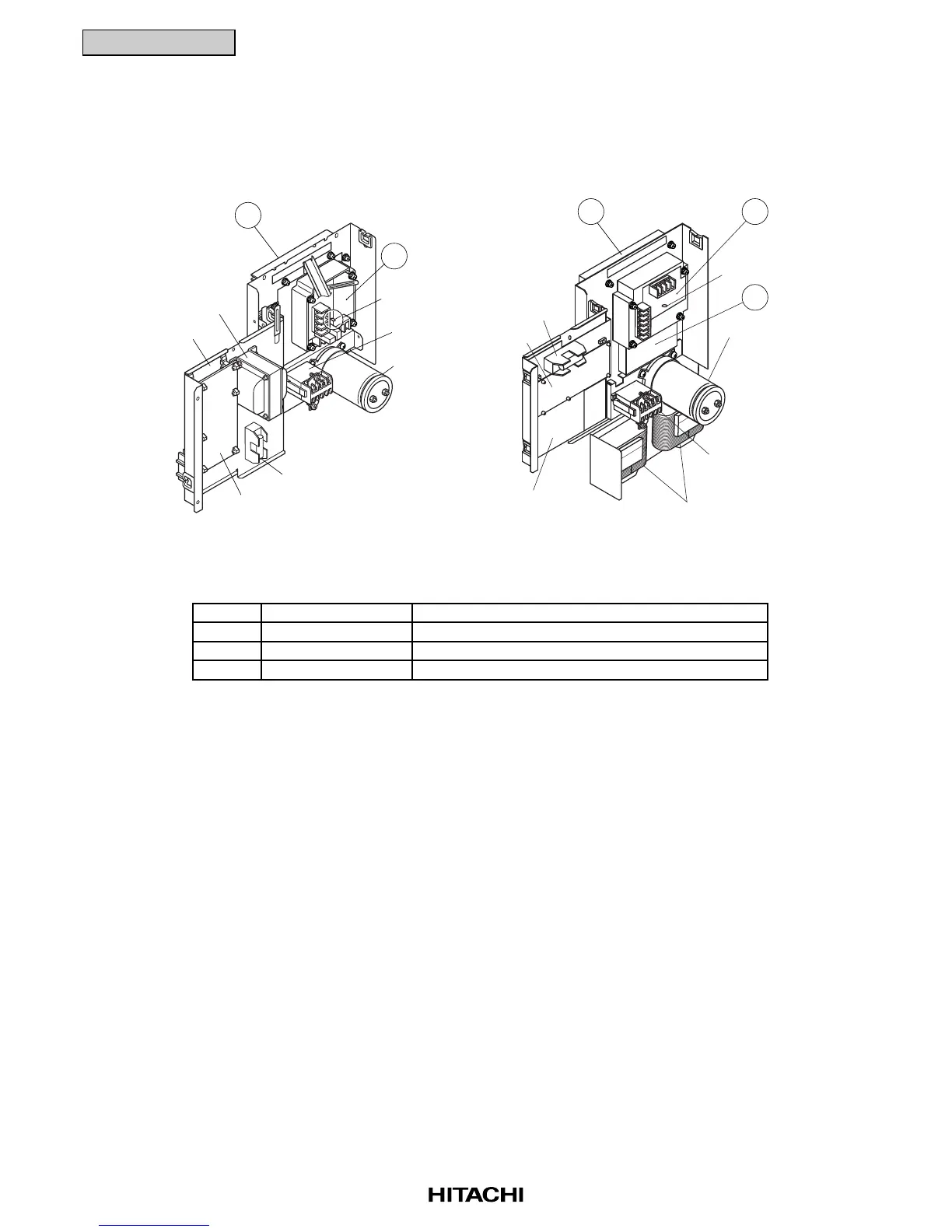

3.1.2 Arrangement of Inverter Power Unit
No. Parts Model
1 Fin (mm) -
2 ISPM HS17A1F06 (3HP and 4HP), HF30A1F06 (5HP)
3 ACT Module LACT33020B
RAS-3HVRG and RAS-4HVRG
Capacitor
Power Plate
Fuse
LED201 (Red)
Reactor
Noise Filter
Magnetic Contactor
1 2
3
RAS-5HVRG
1
2
Reactor
Power Plate
Noise Filter
Fuse
Capacitor
Magnetic
Contactor
LED201
(Red)
