2-3
SERVICING
2.1.5 Removing Compressor

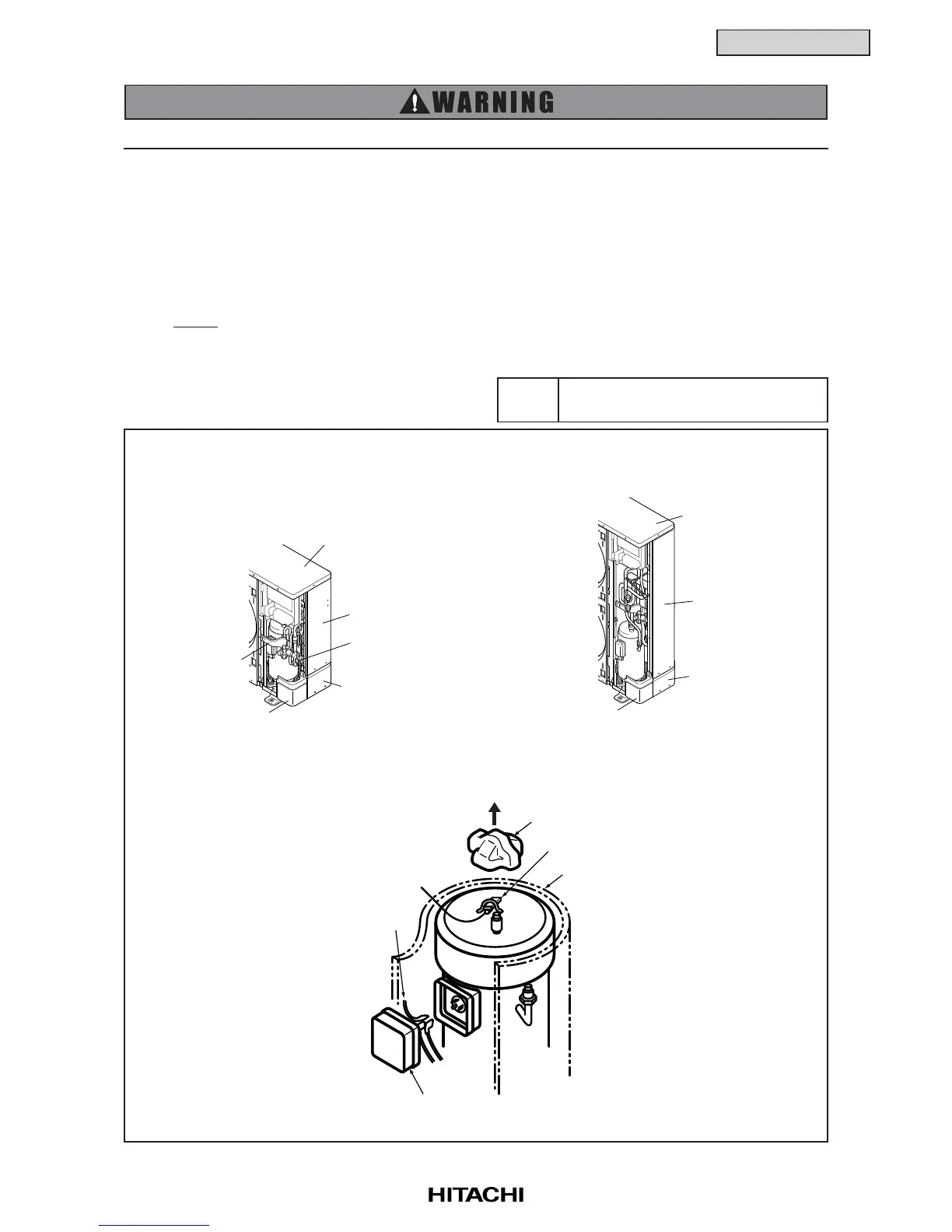

(1) Remove the service cover according to the item 2.1.1 “Removing Service Cover”. If the outdoor
unit is installed close to a wall, disconnect the refrigerant pipe and move the outdoor unit away from
the wall.
(2) Collect the refrigerant from the check joint.
(3) Remove the valve stay.
(4) Open the soundproof cover of the compressor, remove the terminal cover for the compressor and
disconnect the wiring from the compressor terminals.
NOTE:
Check to ensure each terminal Nos. when connecting the compressor power wires. If incorrectly
connected, the compressor will fail due to reverse rotation.
(5) Remove the soundproof cover, thermistor
holder on the compressor and thermistor.
TURN OFF all power source switches.
Phillips Screwdriver, Charge Hose,
Adjustable Wrench (2)
Tool
Upper Cover
Rear Cover
Front Pipe Cover
Rear Pipe Cover
Valve Stay
Front Pipe Cover
Rear Pipe Cover
Check Joint
Upper Cover
Rear Cover
Holder for Td Thermistor
Sound-proof Cover
Td Thermistor
Wires for Compressor
Terminal Box Cover
RAS-3HVRG and 4HVRG RAS-5HVRG
