4-2 ●Installing Precautions
Upward printing
Lateral printing
Downward printing
Print head
cable included
1m
1.5m
Print head
Print head cable
Main body installation surface
IJ printer
main body
Upward
printing
Lateral
printing
Downward
printing
Print head
cable included
1m
1.5m
Print head
Print head cable
Main body installation surface
IJ printer
main body

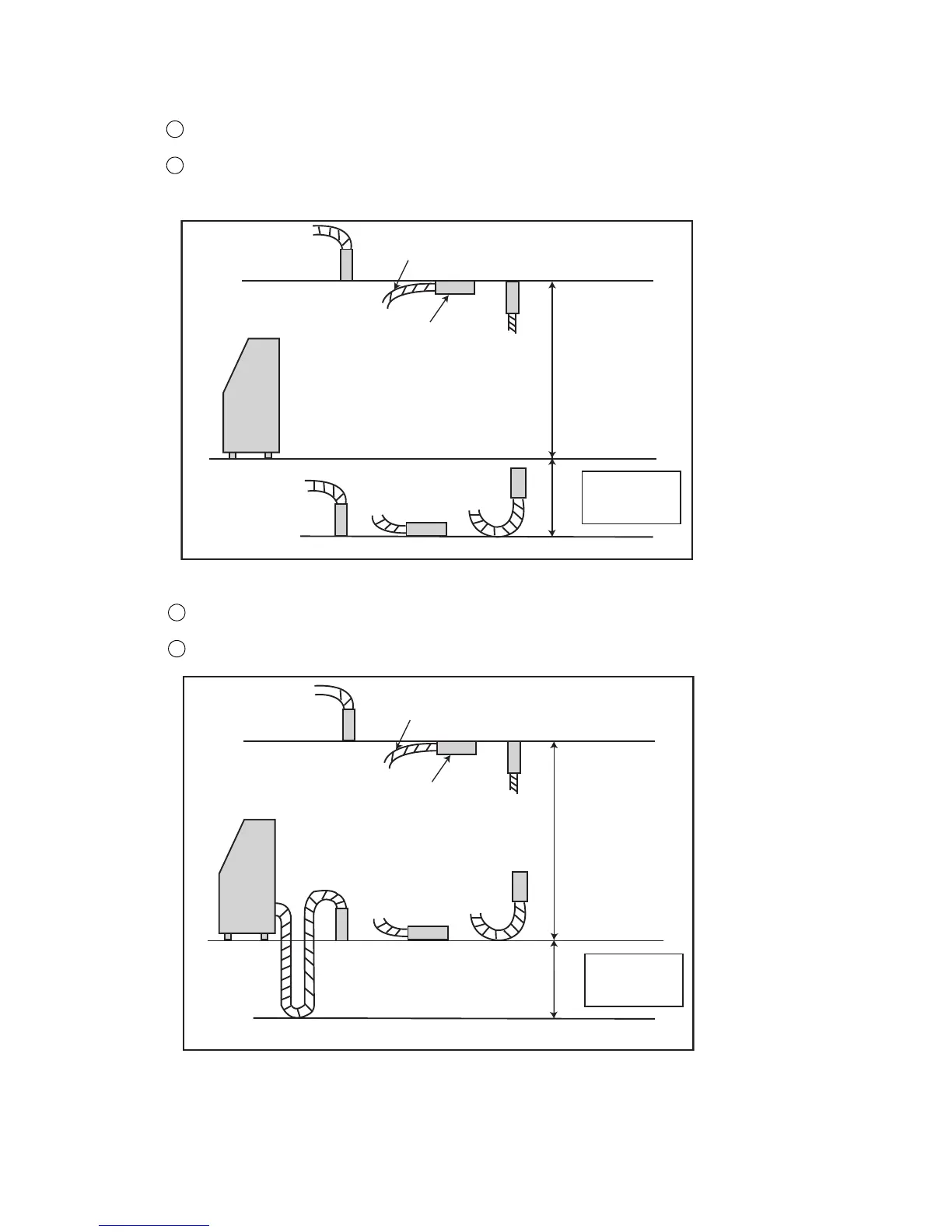

(9) When installing the print head and print head cable, comply with the following conditions or it will
increase the risk of degraded performance of the ink supply and ink recovery behavior.
a) 0 to 45 ℃
When positioning the end of the print head above the printer main body installation surface,ensure
that the distance between the end of the print head and the installation surface does not exceed 1.5 m.
When positioning the end of the print head below the printer main body installation surface, ensure
that the distance between the end of the print head and the installation surface does not exceed 1 m.
2
1
b) 45 to 50 ℃
When positioning the end of the print head above the printer main body installation surface,ensure
that the distance between the end of the print head and the installation surface does not exceed 1.5 m.
Do not install the end of the print head lower than the body mounting surface.
2
1
