Number Item Description
6 Lock Locks and unlocks the front
panel bezel by using the
supplied key.
Note: Removing a controller can cause the POWER, READY, WARNING, and
ALARM LEDs on the front panel to turn o. These LEDs return to the on status
after the storage system recovers from the controller replacement.

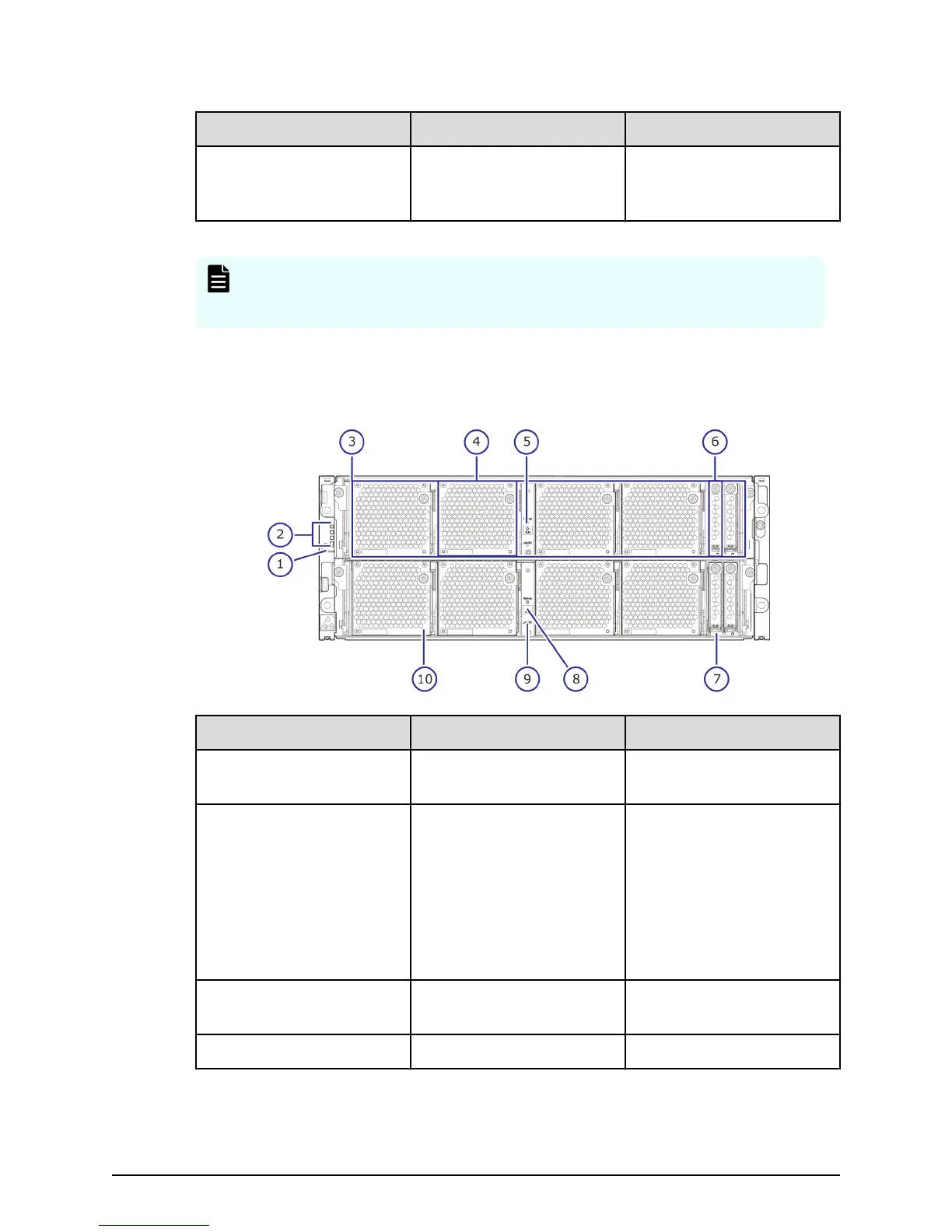

CBL controller front panel LEDs (without bezel)
The following table describes the denitions of the CBL controller front panel LEDs.
Number Item Description
1 POWER ON/OFF (main
switch)
Powers the storage system.
2 POWER, READY, WARNING,
and ALARM LEDs
Note: When System Option
Mode 1097 is set to ON,
the WARNING LED does not
blink, even if the following
failure service information
messages (SIM) are issued:
452xxx, 462xxx, 3077xx,
4100xx, and 410100.
3 Controllers Controller 1 (bottom) and
Controller 2 (top).
4 Backup module N/A
CBL controller front panel LEDs (without bezel)
Chapter 2: System controller
Hitachi Virtual Storage Platform F700 Hardware Reference Guide 16
