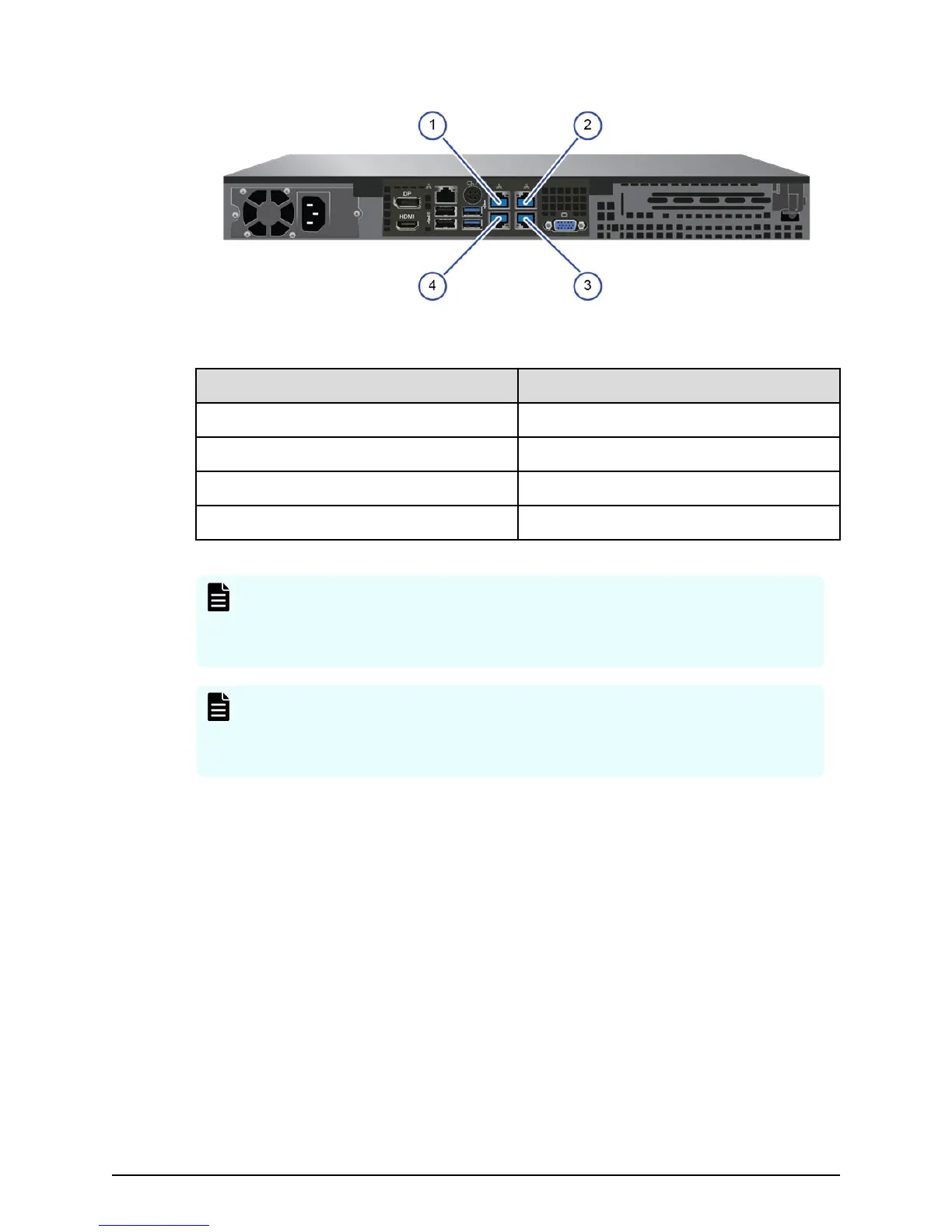

Table 4 SVP (Windows 10 Enterprise) rear panel
Item Description
1 Management (DKC CTL1) - LAN3 port
2 Management (DKC CTL2) - LAN4 port
3 Maintenance - LAN2 port
4 Management (User) - LAN1 port
Note: The SVP running Windows 10 operating system does not provide an
option to disable Spanning Tree Protocol (STP). If your network has BPDU
enabled to prevent loops, connect the user LAN port on controllers 1 and 2 to
an Ethernet switch that is also connected to the LAN1 port on the SVP.
Note: After the Initial Startup Wizard is complete, the SVP can be used in non-
bridge mode. In this mode, the cables can be removed from SVP ports LAN3
and LAN4 and attached to switches. For more information, contact customer
support.
SVP rear panel
Chapter 4: Service processor
Hitachi Virtual Storage Platform F700 Hardware Reference Guide 38
