Number Item Description
1 STATUS LED Green: Front end module is
in the power-on state.
Red: Front end module can
be removed safely.
2 PORT (Link/Speed) LED Yellow: 1-Gbps link.
Green: 10-Gbps link.
O: No link connection.
3 PORT LED Green: Link connection is
established.
Blinking: Communication is
in progress.
O: No link connection or
not ready to communicate.
4 ISCSI connectors Connect to Ethernet cables.

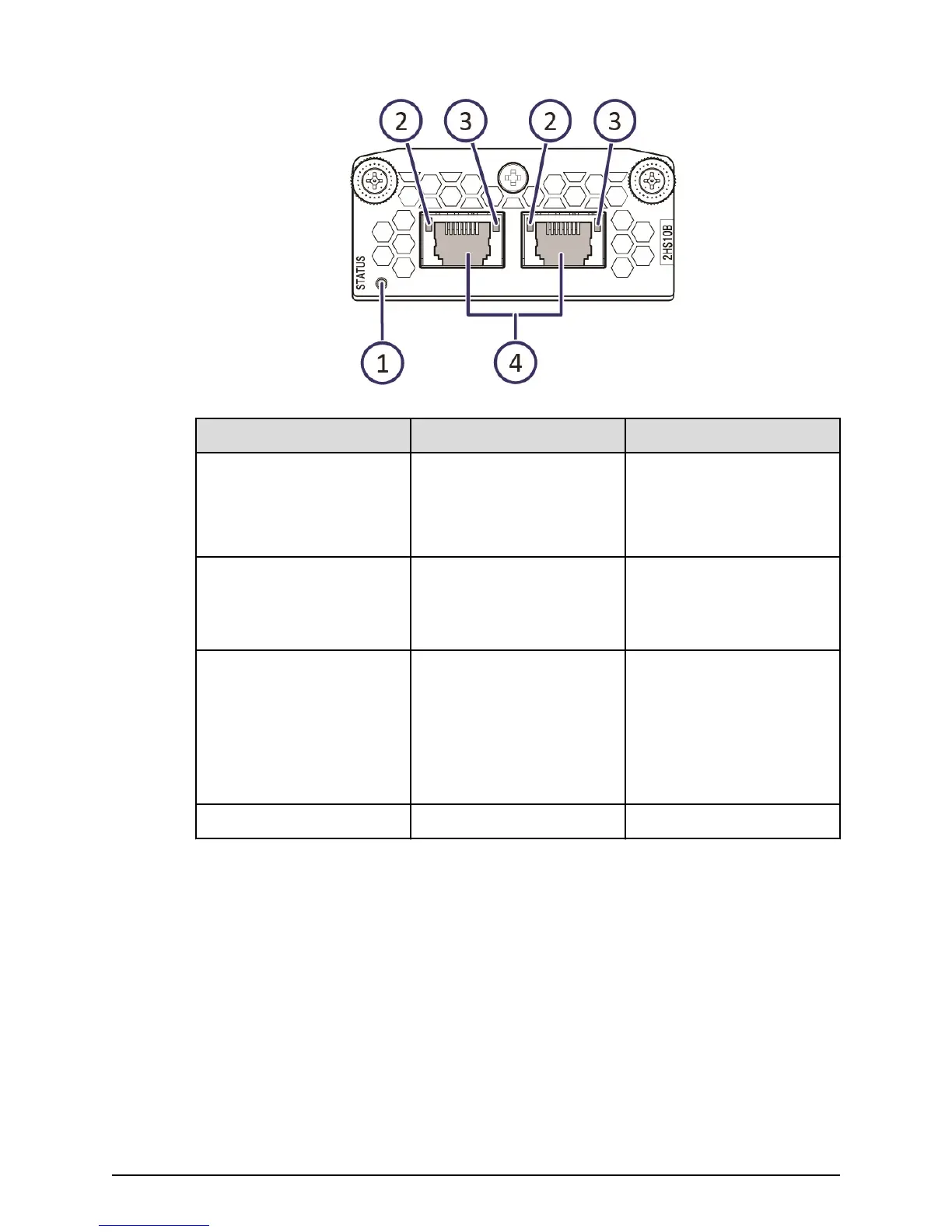

10-Gbps iSCSI board LEDs and connectors (copper)
Chapter 2: System controller
Hitachi Virtual Storage Platform F700 Hardware Reference Guide 21
