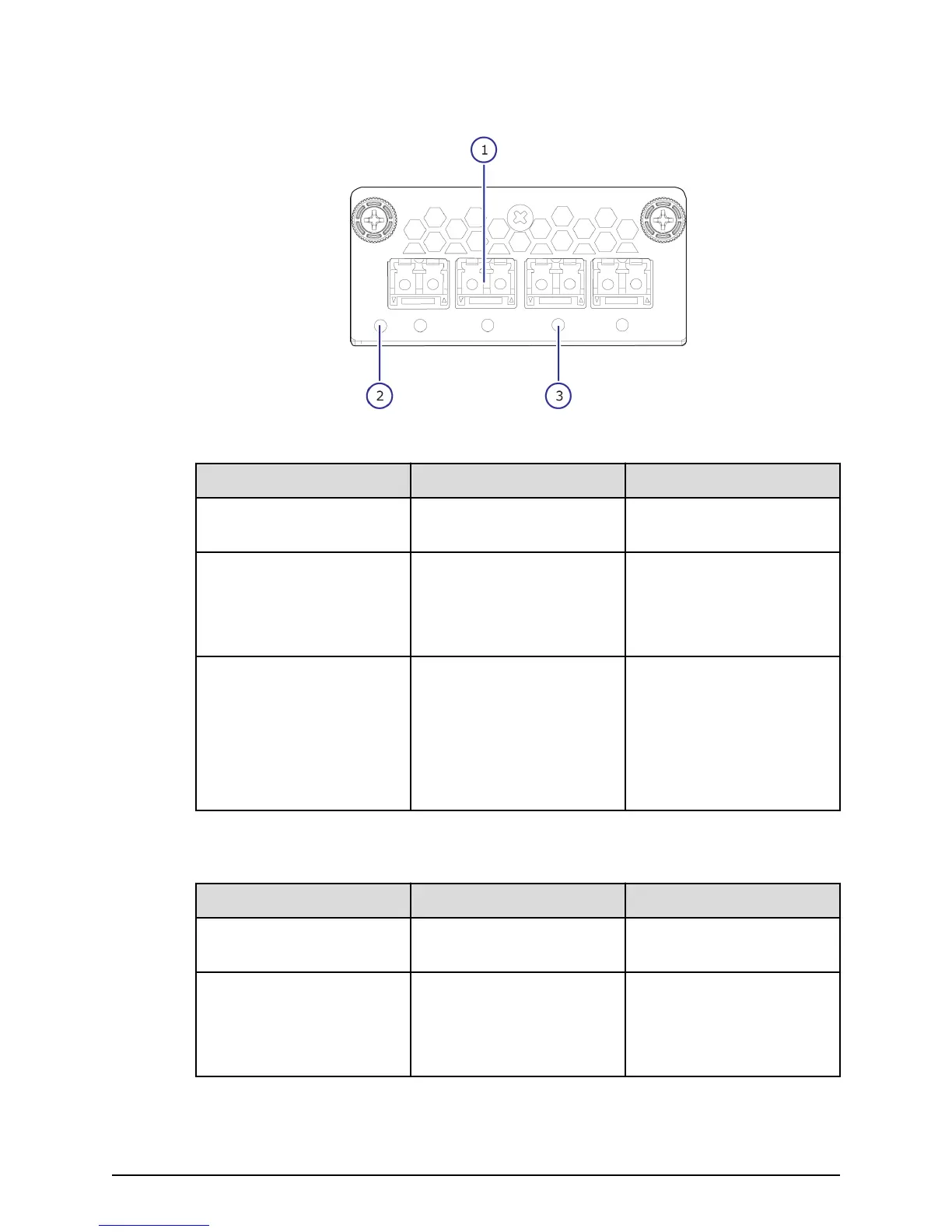

8-Gbps, 16-Gbps, or 32-Gbps Fibre Channel (4-port) board LEDs and connectors
Table 1 8-Gbps Fibre Channel
Number Item Description
1 Fibre Channel connectors Connect to Fibre Channel
cables.
2 STATUS LED Green: Front end module is
in power-on state.
Red: Front end module can
be removed safely.
3 PORT LED Red: Small form-factor
pluggable can be removed.
Blue: Normal link status at
8-Gbps.
Green: Normal link status
at 2-Gbps or 4-Gbps.
Table 2 32-Gbps, 16-Gbps Fibre Channel
Number Item Description
1 Fibre Channel connectors Connect to Fibre Channel
cables.
2 STATUS LED Green: Front end module is
in power-on state.
Red: Front end module can
be removed safely.
8-Gbps, 16-Gbps, or 32-Gbps Fibre Channel (4-port) board LEDs and connectors
Chapter 2: System controller
Hitachi Virtual Storage Platform F700 Hardware Reference Guide 22
