Hitachi Virtual Storage Platform F350 User Manual

CHB number
8-Gbps, 16-Gbps, or 32-Gbps Fibre Channel ports (left to right)
Port 1 Port 2 Port 3 Port 4
CHB-2H 2H 4H 6H 8H

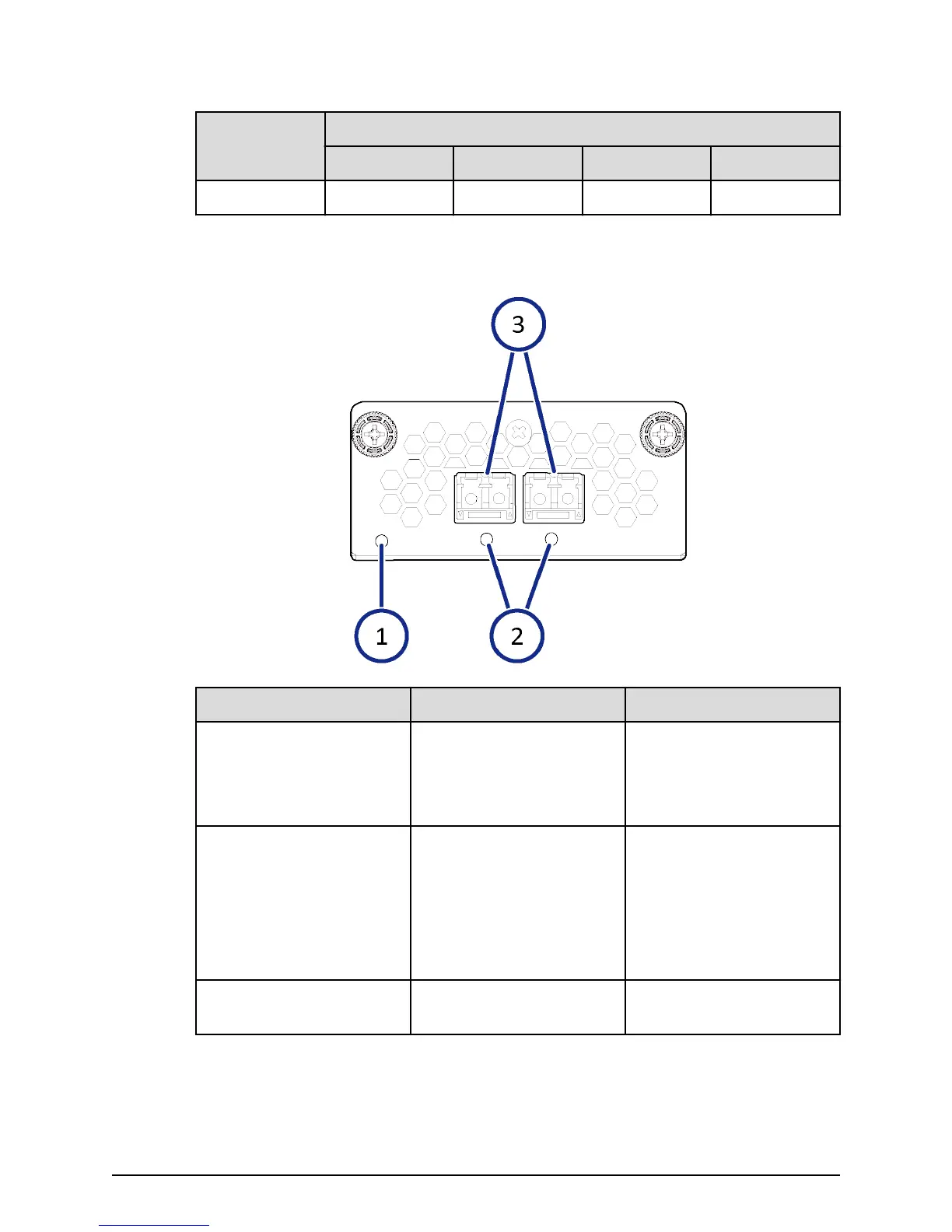

16-Gbps Fibre Channel (2-port) board LEDs and connectors
Number Item Description
1 STATUS LED Green: Front end module is
in the power-on state.
Red: Front end module can
be removed safely.
2 PORT LED Red: Small form-factor
pluggable can be removed.
Blue: Normal link status at
16-Gbps.
Green: Normal link status
at 4-Gbps or 8-Gbps.
3 Fibre Channel connectors Connect to Fibre Channel
cables.
16-Gbps Fibre Channel (2-port) board LEDs and connectors
Chapter 2: System controller
Hitachi Virtual Storage Platform F700 Hardware Reference Guide 24
