Number Item Description
Blink green: Drive is being
accessed.
4 Small form-factor drives The twenty-four 2.5-inch
small form factor drives are
positioned vertically. The
slots are organized from 0
to 23.

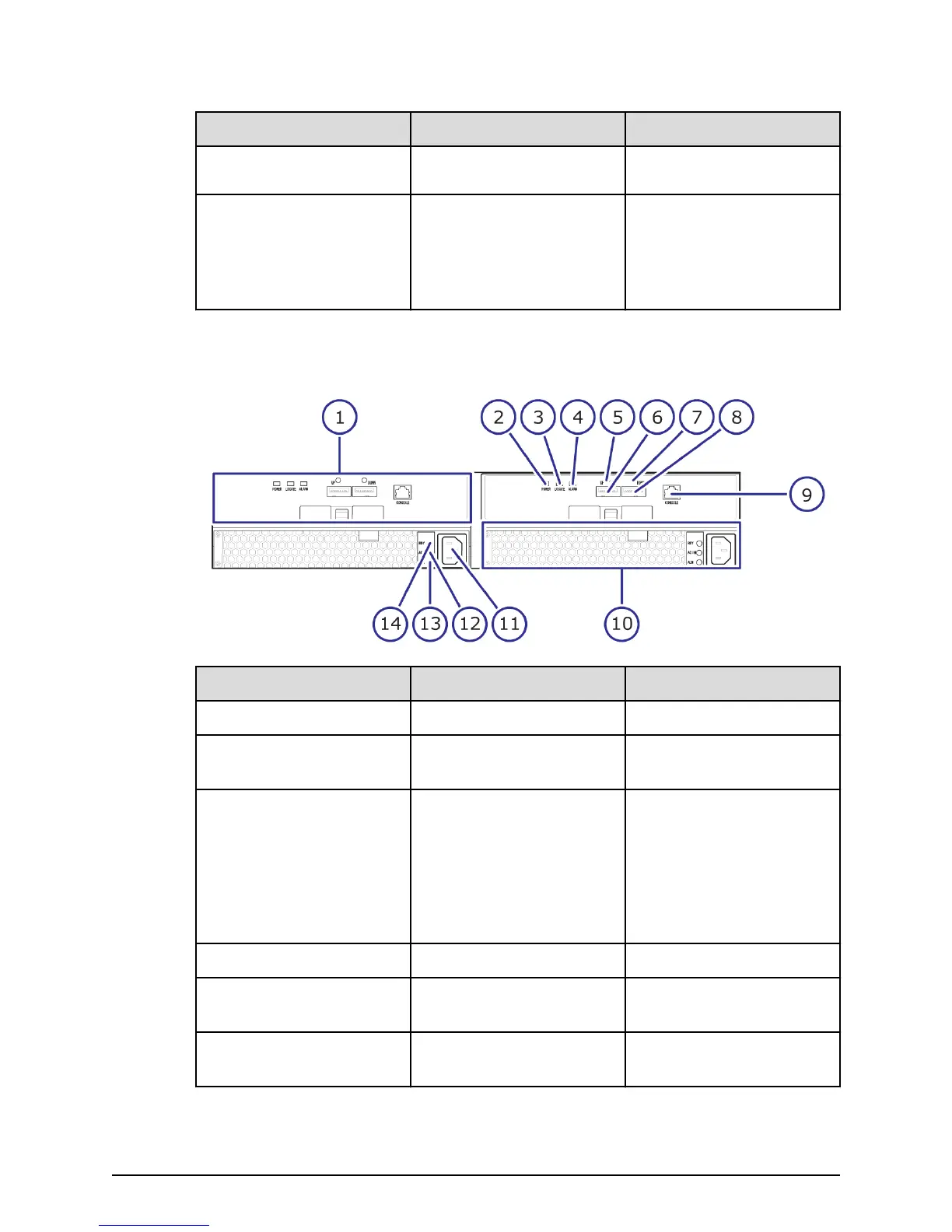

SFF rear panel
Number Item Description
1 ENC N/A
2 POWER LED Green: ENC is in the power-
on state.
3 Locate LED Amber:
■
Indicates the location of
the chassis.
■
Can be turned on or
turned o by the
maintenance utility.
4 ALARM LED Red: ENC can be replaced.
5 PATH (IN) LED Blue: IN side port is linked
up.
6 PATH (IN) connector Connects to a controller or
drive tray.
SFF rear panel
Chapter 3: Drive trays
Hitachi Virtual Storage Platform F700 Hardware Reference Guide 29
