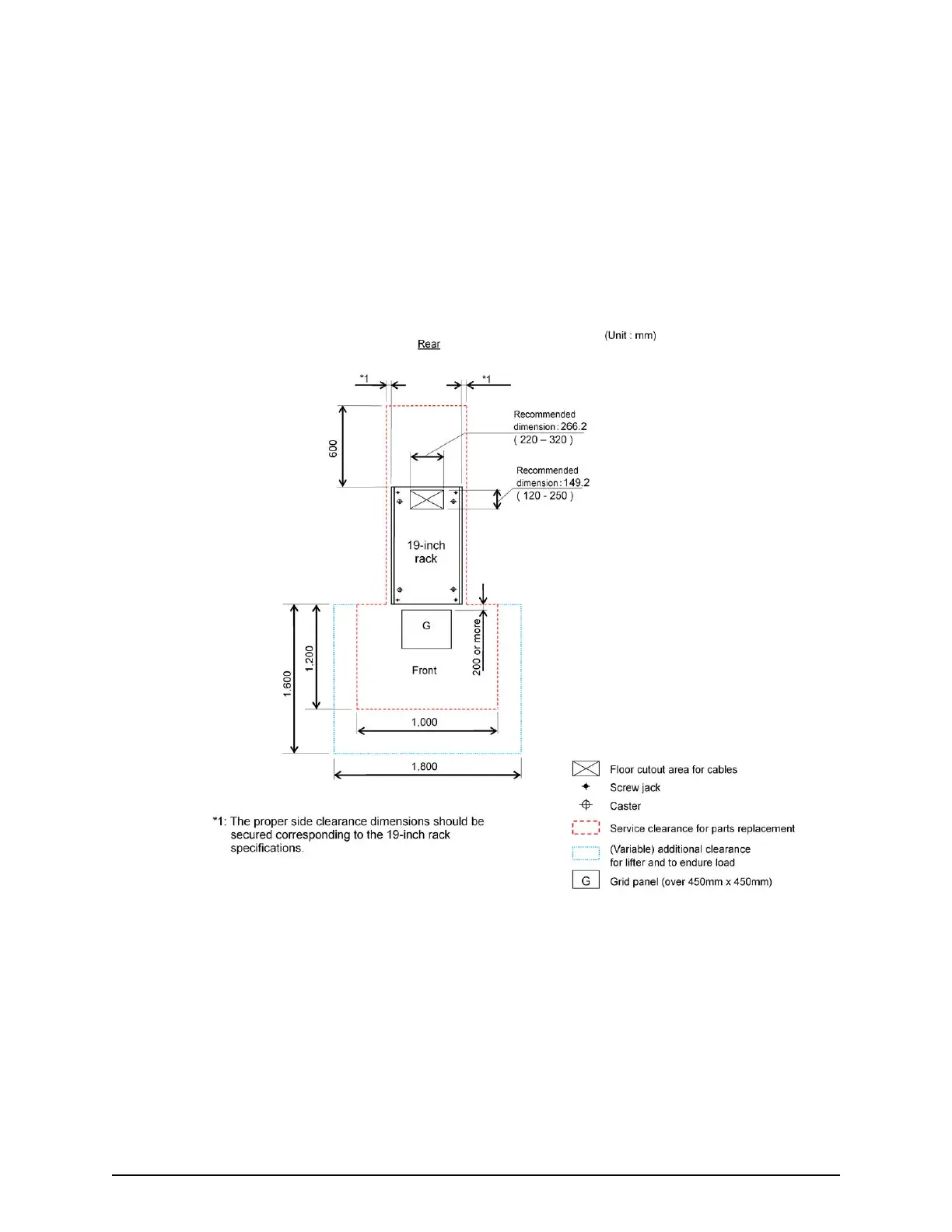

The space requirements must take into consideration the total oor clear
ance required
for the storage system. This includes:
■
The space required by the equipment
■
Service clearance - the oor space required to access the storage system.
■
Additional space required to distribute the equipment weight on your computer
room's raised oor. The amount of additional space required depends on your oor
load rating.
■
Additional space required to view the storage system LEDs on the front and rear
panels.
Cable management
Rack installations should be planned for oper
ational eciency, ease of maintenance, and
safety. Hitachi oers the Backend Conguration Utility (BECK), a graphical, cable-
management application that can relieve the typical cable congestion created when
populating a rack with storage systems and their accessories.
Cable management
Chapter 1: Installation site considerations
Site Preparation Guide for VSP G/F350, G/F370, G/F700, G/F900 14
