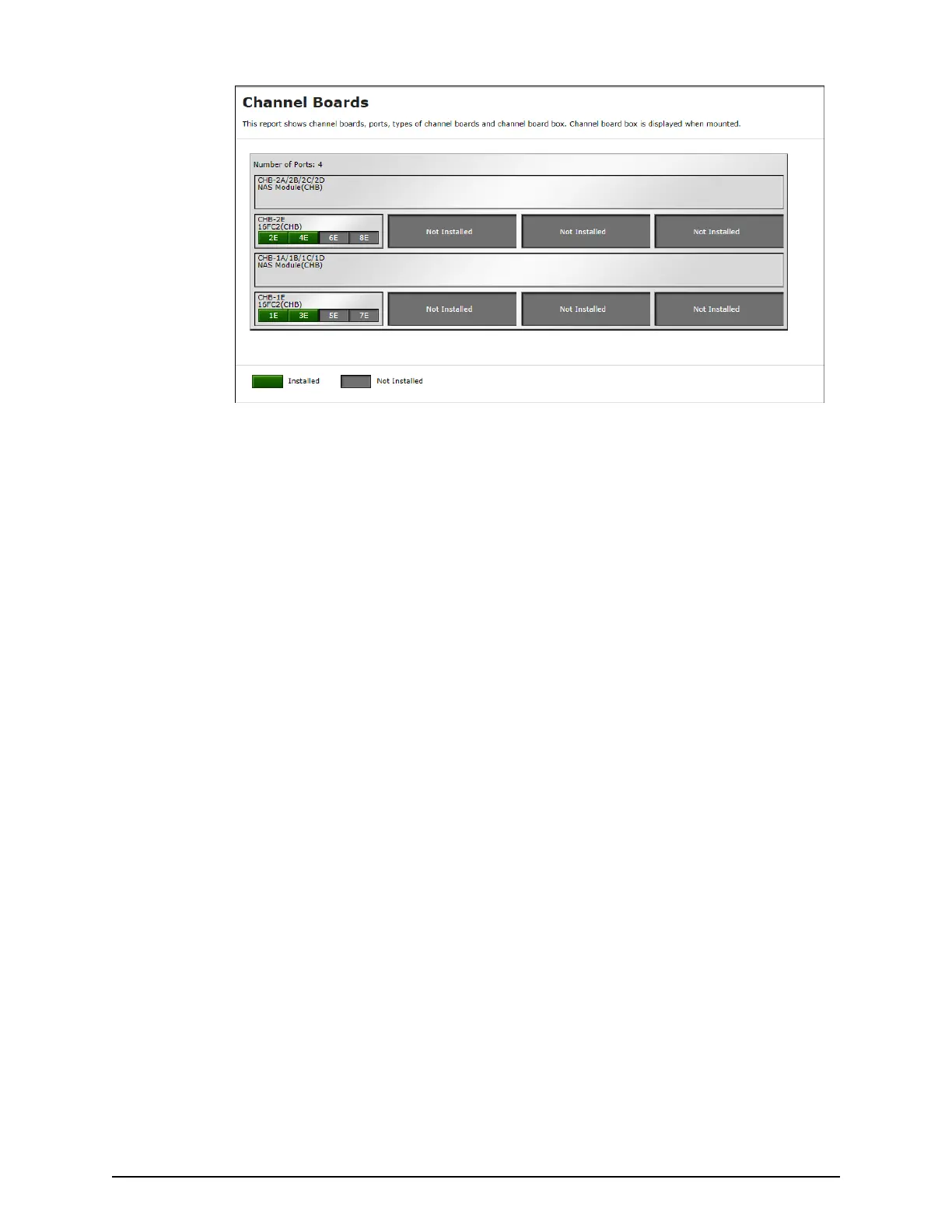

Figure 15 Channel Boards report (when a NAS module is mounted)
Physical View report
This r
eport shows disk controller chassis and drive boxes, and includes channel boards,
disk boards, data drives, spare drives, and free drives.
It also shows the storage system type, serial number, and software version. You can
check the legend for disk units, such as SAS, SSD, Spare, Free, or Not Installed.
If a PCIe channel board installed in the DKC is connected to a channel board box, the
status of the channel board box is displayed.
Physical View report
Appendix A: Examples of storage conguration reports
System Administrator Guide for VSP Gx00 models and VSP Fx00 models 236
