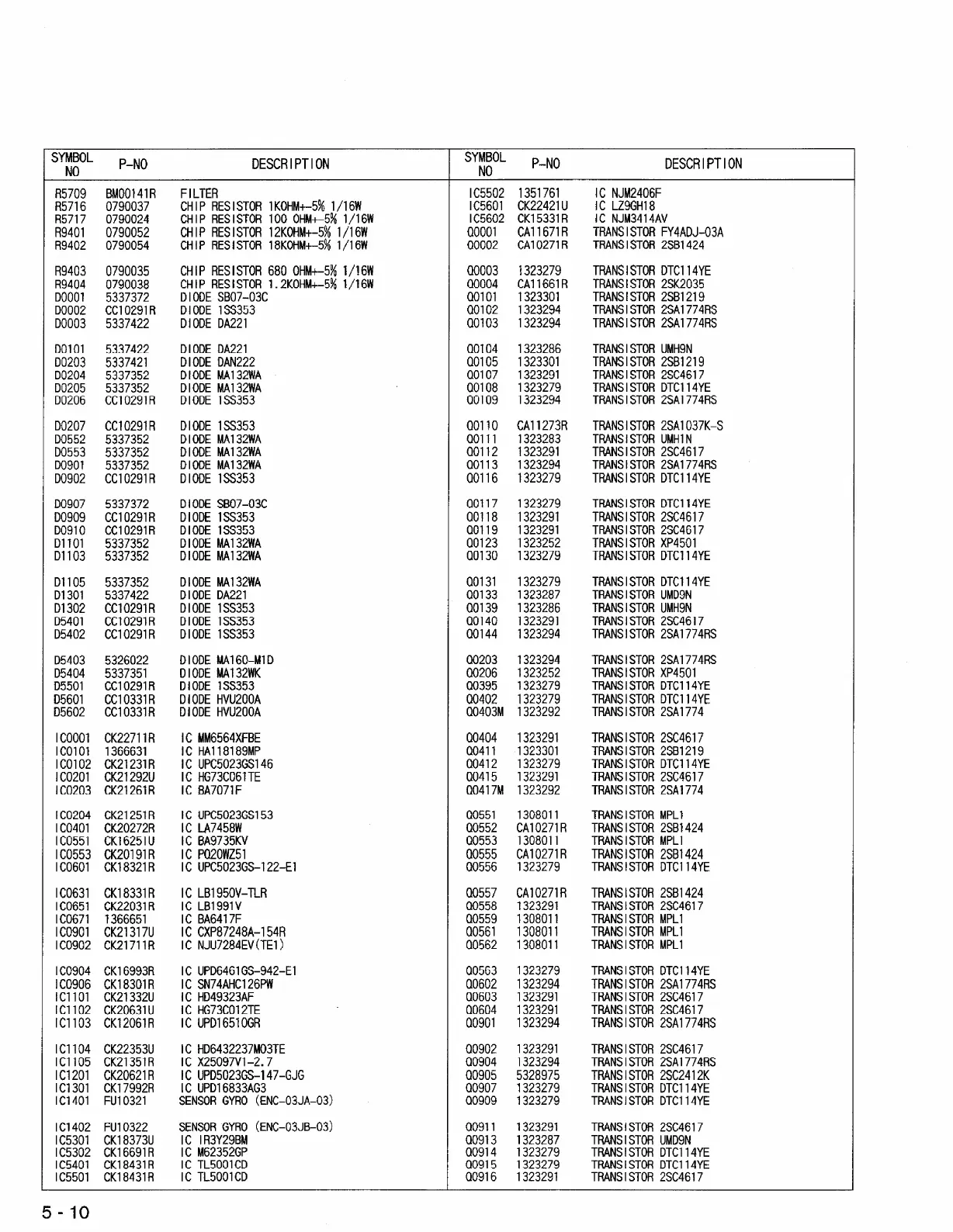

SYMf3OL
P-NO DESCRIPTION
SYMBOL
NO NO
P-NO DESCRIPTION
R5709 BM00141R FILTER lC5502 1351761 IC NJM2406F
R5716 0790037 CHIP RESISTOR lKOHM+-5% 1,'16W IC5601 CK22421U IC LZ9GH18
R5717 0790024 CHIP RESISTOR 100 OHM+-5% 1/16W
lC5602 CK15331R IC NJM3414AV
R9401 0790052 CHIP RESISTOR 12KOHMt-5% 1/16W a0001
CA11671R
TRANSISTOR FY4ADJ-03A
R9402 0790054 CHIP RESISTOR 18KOHMt-5% 1/16W 00002 CA10271R
TRANSISTOR 2SB1424
R9403 0790035 CHIP RESISTOR 680 OHM+-5% 1/16W
Q0003 1323279 TRANSiSTOR DTC114YE
R9404 0790038 CHIP RESISTOR 1.2KOHM+-5% l/f61
Q0004 CA11661R TRANSISTOR 2SK2035
DO001 5337372
DIODE SB07-03C QOlOl 1323301 TRANSISTOR 2SB1219
DO002 CC10291R DIODE lSS353 Q0102 1323294
TRANSISTOR 2SA1774RS
DO003 5337422
DIODE DA221 Q0103 1323294 TRANSISTOR 2SA1774RS
DO101 5337422 DIODE DA221 00104 1323286 TRANSISTOR UMHSN
DO203 5337421
DIODE DAN222 00105 1323301 TRANSISTOR 2SB1219
DO204 5337352
DIODE MA132WA Q0107 1323291 TRANSISTOR 2SC4617
DO205 5337352
DIODE MA132WA 00108 1323279 TRANSISTOR DTC114YE
DO206 CC10291R DIODE lSS353 00109 1323294 TRANSISTOR 2SA1774RS
DO207 CC10291R DIODE lSS353 00170 CA11273R TRANSISTOR 2SA1037K-S
DO552
5337352
DIODE MA132WA 00111 1323283 TRANSISTOR UMHlN
DO553 5337352 DIODE MA132WA 00112 1323291 TRANSISTOR 2SC4617
DO901 5337352 DIODE MA132WA 00113 1323294 TRANSISTOR 2SA1774RS
DO902 CC10291R DIODE lSS353
00116 1323279 TRANSISTOR DTC114YE
DO907 5337372 DIODE SBO7-03C Q0117 1323279
TRANSISTOR DTC114YE
DO909 CC10291R DIODE lSS353 00118 1323291 TRANSISTOR 2SC4617
DO910 CC10291R DIODE lSS353
00119 1323291 TRANSISTOR 2SC4617
DllOl 5337352 DIODE MA132WA Q0123
1323252 TRANSISTOR XP4501
D1103 5337352
DIODE MA132WA Q0130 1323279 TRANSISTOR DTC114YE
D1105 5337352
DIODE MA132WA Q0131 1323279 TRANSISTOR DTC114YE
D1301 5337422
DIODE DA221 00133 1323287 TRANSISTOR UMDSN
D1302 CC10291R DIODE lSS353 00139 1323286 TRANSISTOR UMHSN
D5401
CC10291R
DIODE lSS353 00140 1323291 TRANSISTOR 2SC4617
D5402 CC10291R DIODE lSS353 00144 1323294 TRANSISTOR 2SA1774RS
D5403 5326022
DIODE MA160-MlD 00203 1323294 TRANSISTOR 2SA1774RS
D5404 5337351 DIODE MA132WK 00206 1323252 TRANSISTOR XP4501
D5501 CC10291R DIODE lSS353 00395 1323279 TRANSISTOR DTC114YE
05601 CC10331R DIODE HVU200A Q0402 1323279 TRANSISTOR DTC114YE
D5602 CC10331R DIODE HVU200A Q0403M 1323292 TRANSISTOR 2SA1774
ICOOOI CK22711R IC MM6564XFBE 00404 1323291 TRANSISTOR 2SC4617
ICOlOl 1366631 IC HA118189MP Q0411
1323301 TRANSISTOR 2381219
ICO102 CK21231R IC UPC5023GS146 Q0412
1323279 TRANSISTOR DTCl14YE
ICO201 CK21292U IC HG73C06fTE Q0415 1323291 TRANSISTOR 2SC4617
ICO203 CK21261R IC BA7071F Q0417M 1323292 TRANSISTOR 2SA1774
ICO204 CK2125lR IC UPC5023GS153
(10551 1308011 TRANSISTOR MPLl
ICO401 CK20272R IC LA7458W Q0552 CA10271R TRANSISTOR 2SBl424
IC0551 CKl6251U IC BA9735KV
Q0553 1308011 TRANSISTOR MPLl
lC0553 CK20191R
IC PQ20WZ51 Q0555 CA10271R TRANSISTOR 2SB1424
ICO601 CK18321R
IC UPC5023GS-122-El Q0556 1323279 TRANSISTOR DTC114YE
ICO631 CK18331R IC LB1950V-TLR Q0557 CA10271R TRANSISTOR 2SB1424
ICO651 CK22031R IC LB1991V Q0558 1323291 TRANSISTOR 2SC4617
ICO671 1366651
IC BA6417F Q0559 1308011 TRANSISTOR MPLl
ICO901 CK21317U IC CXP87248A-154R Q0561 1308011 TRANSISTOR MPLl
ICO902 CK21711R IC NJU7284EVcTEl) 00562 1308011 TRANSISTOR MPLl
ICO904 CK16993R IC UPD6461GS-942-El 00563 1323279 TRANSISTOR DTC114YE
ICO906 CK18301R IC SN74AHC126PW Q0602 1323294 TRANSISTOR 2SA1774RS
ICllOl CK21332U IC HD49323AF Q0603 1323291 TRANSISTOR 2SC4617
IC1102 CK20631U IC HG73COl2TE 00604 1323291 TRANSISTOR 2SC4617
IC1103 CK12061R IC UPD165lOGR 00901 1323294 TRANSISTOR 2SA1774RS
IC1104 CK22353U IC HD6432237M03TE 00902 1323291 TRANSISTOR 2SC4617
IC1105 CK21351R IC X25097Vl-2.7 00904 1323294 TRANSISTOR 2SA1774RS
IC1201 CK20621R
IC UPD5023GS-147-GJG 00905 5328975 TRANSISTOR 2SC2412K
ICI301 CK17992R IC UPD16833AG3 Q0907 1323279 TRANSISTOR DTC114YE
IC1401 FU10321 SENSOR GYRO (ENC-03JA-03) 00909 1323279 TRANSISTOR DTC114YE
IC1402 FU10322 SENSOR GYRO (ENC-03JB-03) Q0911 1323291 TRANSISTOR 2SC4617
IC5301 CK18373U
IC IR3Y29BM 00913 1323287 TRANSISTOR UMDSN
lC5302 CK16691R IC M62352GP Q0914 1323279 TRANSISTOR DTC114YE
IC5401 CK18431R IC TL5001CD 00915 1323279 TRANSISTOR DTC114YE
IC5501 CK18431R IC TL5001CD 00916 1323291 TRANSISTOR 2SC4617
