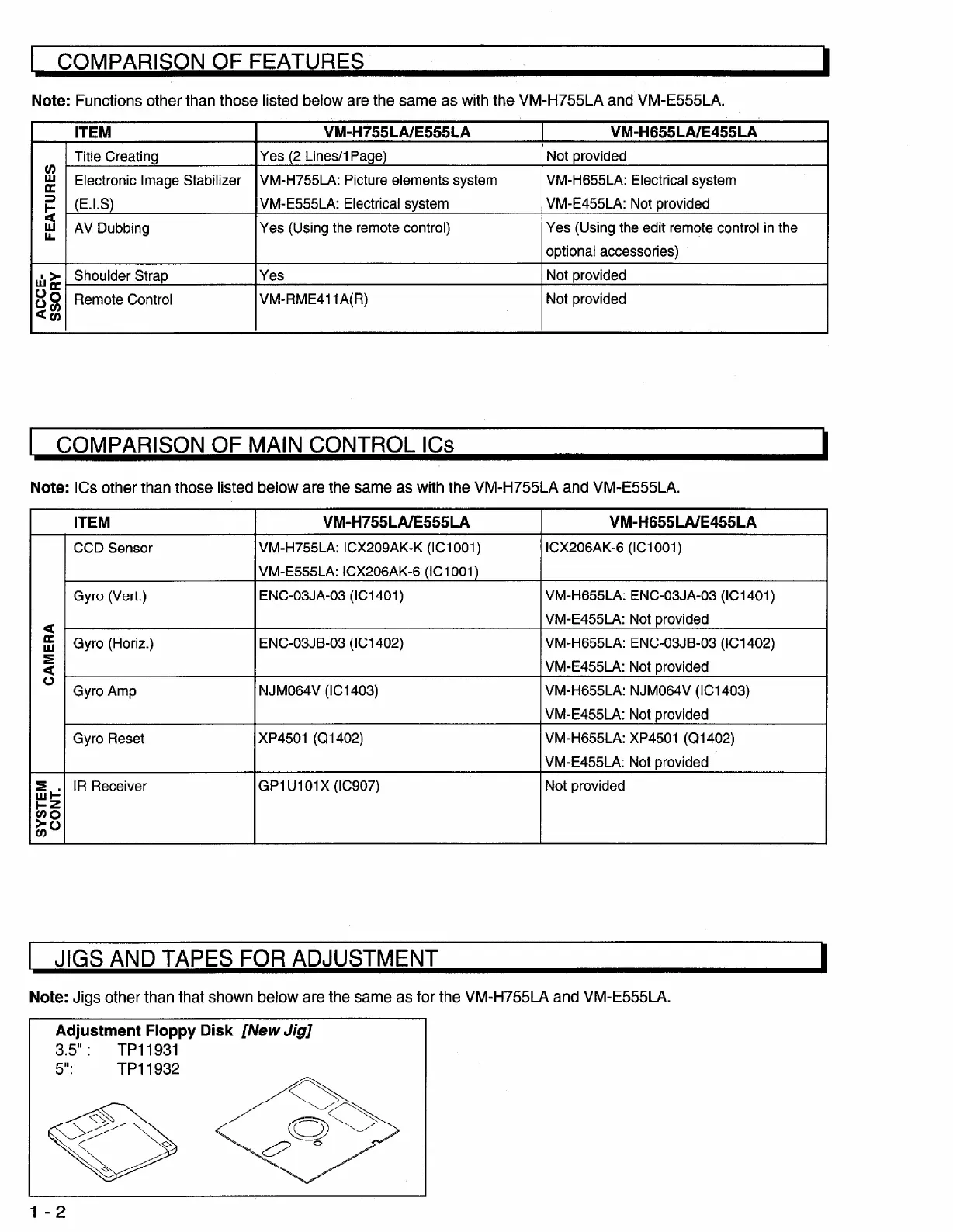

Hitachi VM-E455LA - Model Feature and IC Comparison; Adjustment Tools and Procedures

Note: Functions other than those listed below are the same as with the VM-H755LA and VM-E555LA.
ITEM
1
VM-H755LA/E555LA
VM-H655LA/E455LA
I
r
Title Creating
Yes (2 lines/l Page) Not provided
ii
5
Electronic Image Stabilizer
VM-H755LA: Picture elements system VM-H655LA: Electrical system
t-g (E-I-S)
VM-E555LA: Electrical system
VM-E455LA: Not provided
t AV Dubbing
Yes (Using the remote control) Yes (Using the edit remote control in the
optional accessories)
1 + Shoulder Strap
’ 8 Remote Control
ou3
au3
Yes
Not provided
VM-RME41 lA(R) Not provided
Note: ICs other than those listed below are the same as with the VM-H755LA and VM-E555LA.
ITEM VM=H755LA/E555LA
VM-H655LA/E455LA
CCD Sensor
VM-H755LA: ICX209AK-K (ICI 001)
ICX206AK-6 (ICI 001)
VM-E555lA: ICX206AK-6 (ICI 001)
Gyro (Ver-t.)
ENC-03JA-03 (ICI 401) VM-H655L4: ENC-03JA-03 (IC1401)
2
VM-E455LA: Not provided
%
Gyro (Horiz.)
ENC-03JB-03 (lC1402) VM-H655LA: ENC-03JB-03 (IC1402)
s.
VM-E455LA: Not provided
Gyro Amp
NJM064V (IC1403) VM-H655LA: NJM064V (IC1403)
VM-E455LA: Not provided
Gyro Reset
XP4501 (Cl 402) VM-H655lA: XP4501 (Q1402)
VM-E455LA: Not provided
z . I R Receiver
FS
GPl UlOlX (IC907)
Not provided
Note: Jigs other than that shown below are the same as for the VM-H755LA and VM-E555LA.
Adjustment Floppy Disk [New Jig]
3.5” :
TPI 1931
5”: TPI 1932
