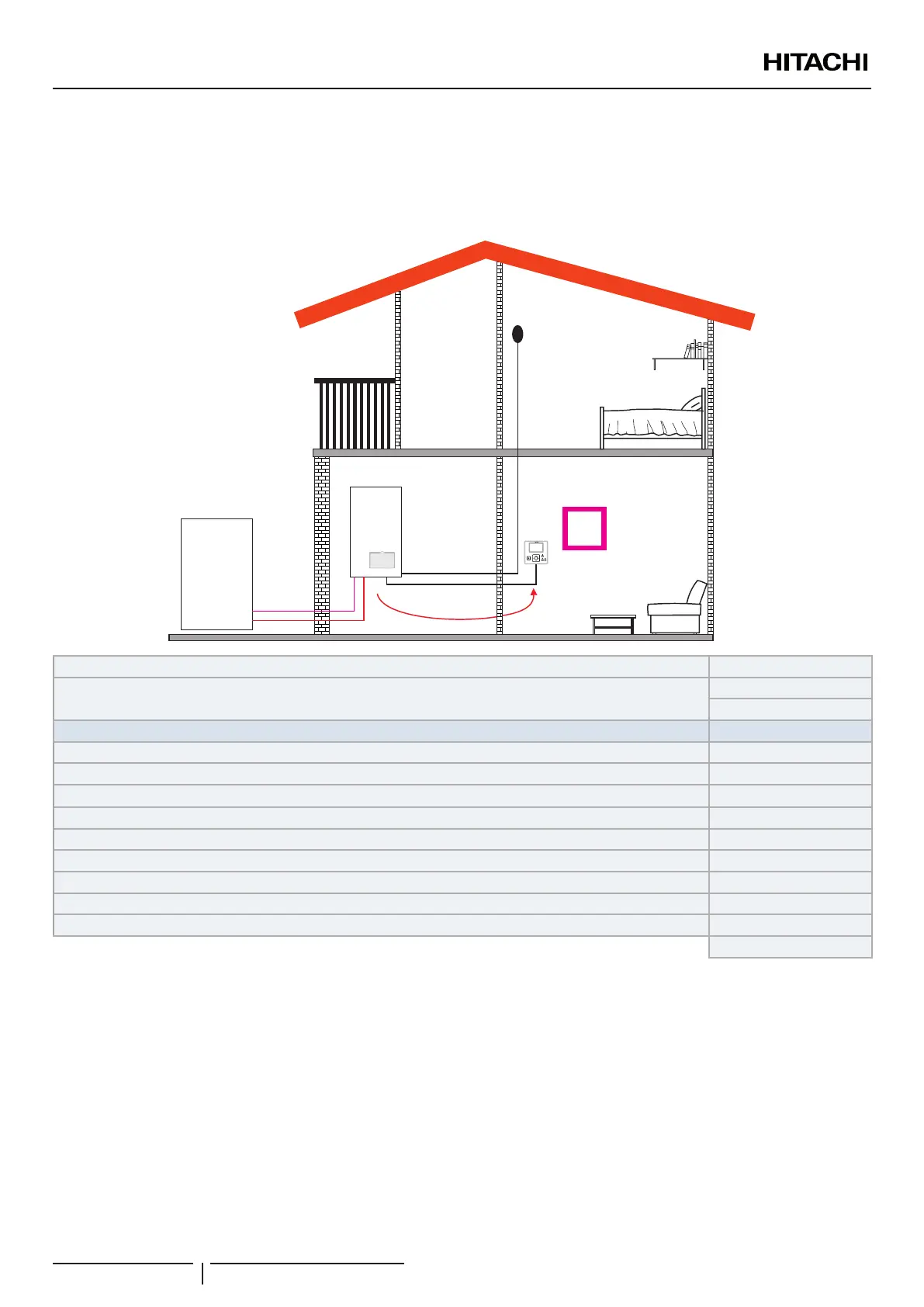

Hitachi YUTAKI RWM-2R1E Instruction And Operation Manual


Example 3
1- Master unit controller as unit conguration
2- Wired unit controller as a Room Thermostat for Zone 1
3- Wired room sensor for Zone 2
OK
Outdoor unit
Indoor unit
1
Living room Zone 1
Bedrrom Zone 2
Order FIRST
Type
Master
Unit + Circuits
Questions Answers
Is this device attached to the unit? NO
Is this device controlling the unit? YES
Is this device used as a Room Thermostat of a zone? YES, IN BOTH ZONES
Which are the emitters of circuit 1? Underoor heating
Which are the emitters of circuit 2? Underoor heating
Do you have domestic hot water tank? NO
Do you have swimming pool? NO
Do you have boiler? NO
Do you have electric backup heater? NO
COMPLETED
