MAINTENANCE
7-62

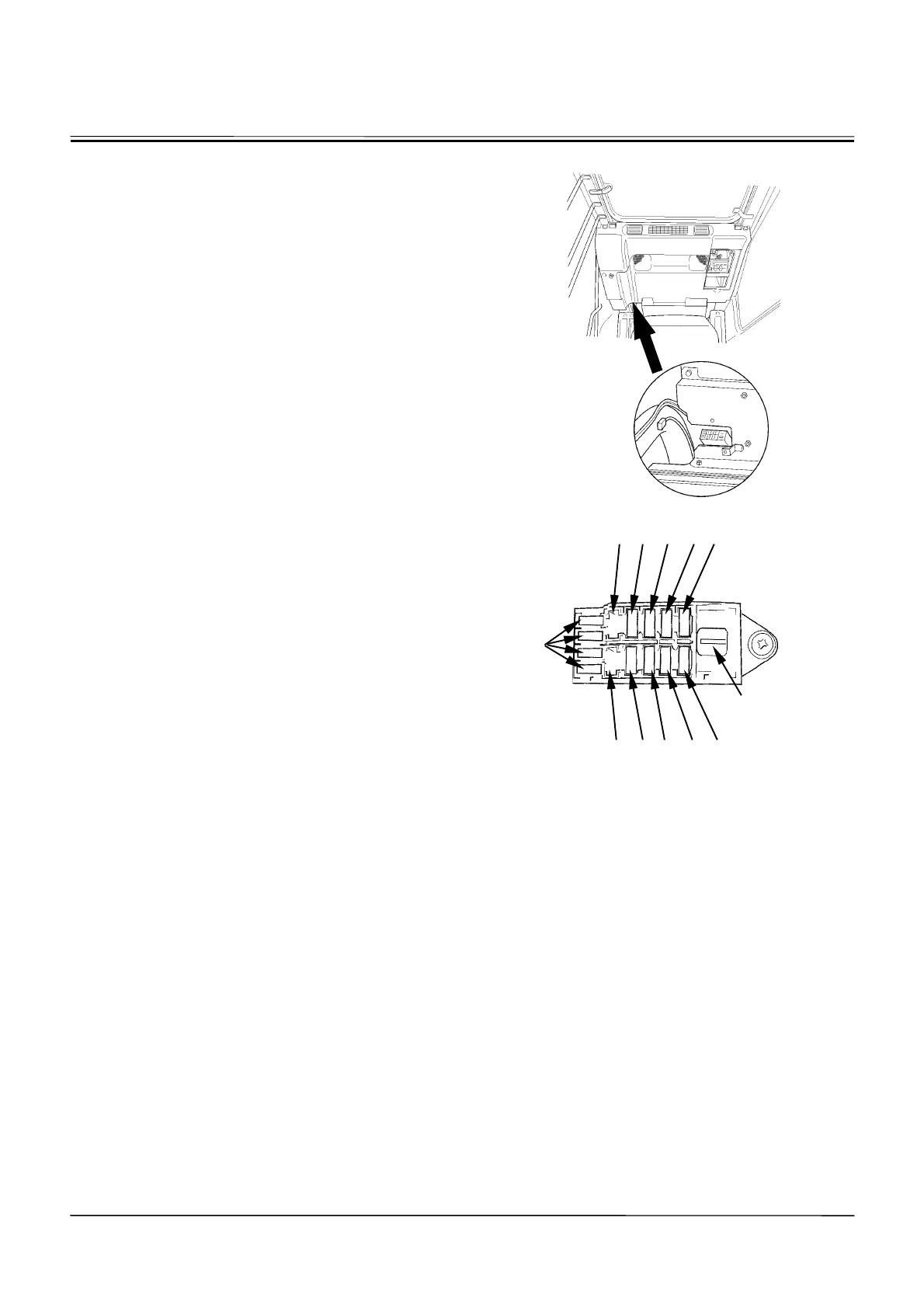

ADDITIONAL FUSE BOX (Optional)
25- SPARE
30- SPARE
24- AUXILIARY
10A
29- AUXILIARY
5A
23- CAB LAMP REA
10A
28- QUICK HITCH
5A
22- WARNING LAMP
10A
27- CAB LAMP FRONT+2
10A
21- SEAT HEATER
10A
26- SEAT DAMPER
10A
M1CC-01-018
EM1SE-01-003
M1G6-07-015
29 28 27 26 30
23 25 24 22 21
Tool
Spare
Fuses
