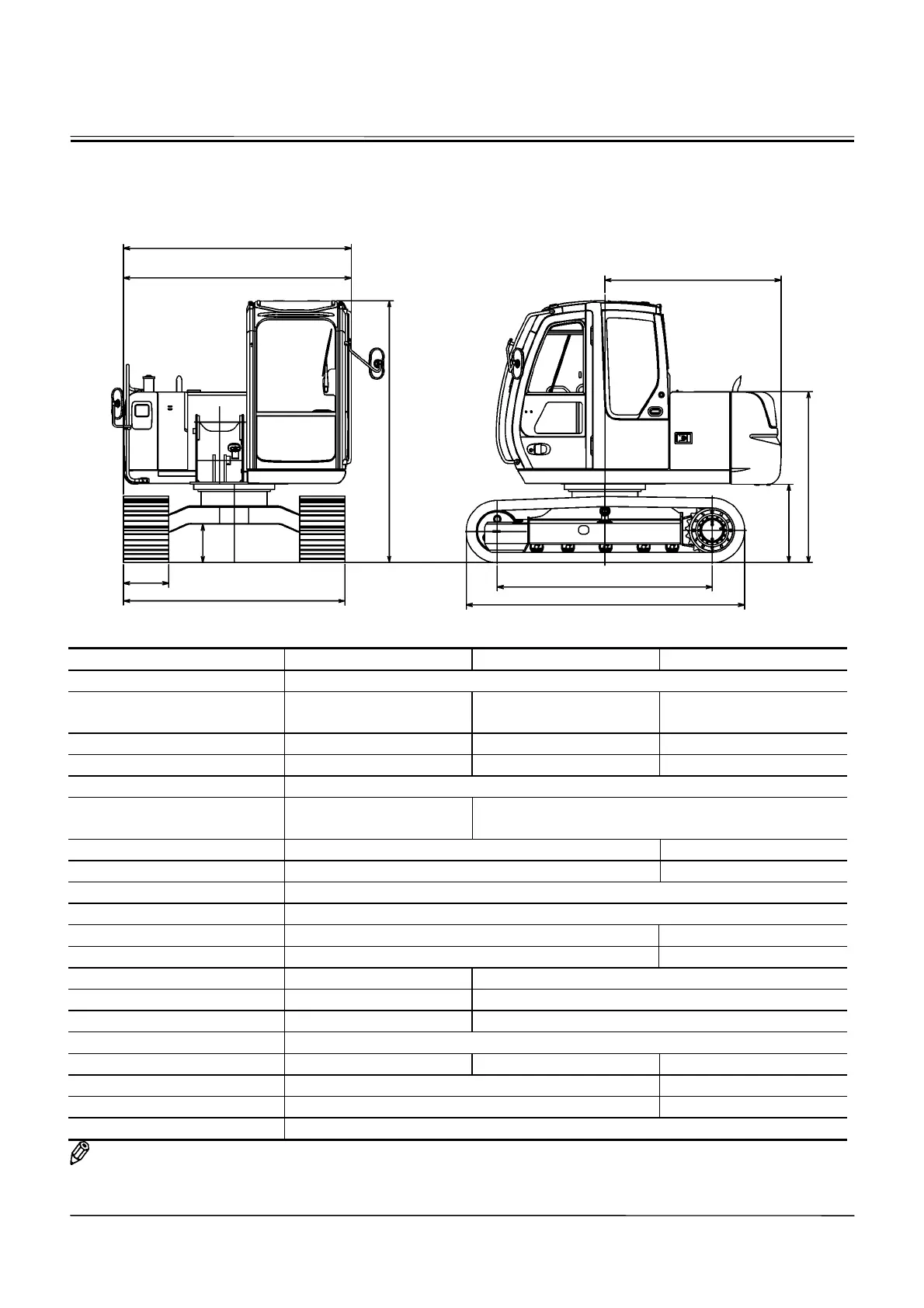

SPECIFICATIONS
12-1
SPECIFICATIONS
ZAXIS70, 70LC, 85US
M1CD-12-001
Model ZAXIS70 ZAXIS70LC ZAXIS85US
Type of Front-End Attachment 1.62 m (5 ft 4 in) Arm
Bucket Capacity (Heaped)
PCSA 0.28 m
3
(0.37 yd
3
),
CECE 0.24 m
3
PCSA 0.33 m
3
(0.43 yd
3
),
CECE 0.29 m
3
PCSA 0.28 m
3
(0.37 yd
3
),
CECE 0.24 m
3
Operating Weight 6400 kg (14100 lb) 6500 kg (14300 lb)
7100 kg (15650 lb)
Basic Machine Weight 5050 kg (11100 lb) 5130 kg (11300 lb)
5800kg (12790 lb)
Engine Isuzu CC-4JG1 40.5 kW/2100 min
–1
(55 PS/2100 rpm)
A: Overall Width
(Excluding back mirrors)
2260 mm (7 ft 5 in) 2320 mm (7 ft 7 in)
B: Cab Height 2600 mm (8 ft 6 in)
2690 mm (8 ft 10 in)
C: Rear End Swing Radius 1750 mm (5 ft 9 in)
1210 mm (4 ft 0 in)
D: Minimum Ground Clearance *360 mm (1 ft 2 in)
E: Counterweight Clearance * 760 mm (2 ft 6 in)
F: Engine Cover Height * 1680 mm (5 ft 6 in)
*
1740 mm (5 ft 9 in)
G: Overall Width of Upperstructure 2260 mm (7 ft 5 in) 2320 mm (7 ft 7 in)
H: Undercarriage Length 2765 mm (9 ft 1 in) 2920 mm (9 ft 7 in)
I: Undercarriage Width 2200 mm (7 ft 3 in) 2320 mm (7 ft 7 in)
J: Sprocket Center to Idler Center 2140 mm (7 ft 0 in) 2290 mm (7 ft 6 in)
K: Track Shoe Width
450 mm (18 in) (Grouser shoe)
Ground Pressure
29 kPa (0.30 kgf/cm
2
, 4.2 psi) 28 kPa (0.29 kgf/cm
2
, 4.1 psi)
30kPa (0.31 kgf/cm
2
, 4.4 psi)
Swing Speed 11.3 min
–1
(rpm)
11 min
-1
(rpm)
Travel Speed (fast/slow) 5.0/3.4 km/h (3.1/2.1 mph)
5.0/3.3 km/h (3.1/2.1mph)
Gradeability 35° (tan
T
= 0.70)
NOTE:
*
The dimensions do not include the height of the shoe lug.
J
H
J
F
E
C
B
I
K
D
G
A
