OPTIONAL ATTACHMENTS AND DEVICES
13-7
SPECIFICATIONS
ZAXIS80SB, ZAXIS80SBLC (with Blade)
MICG-12-005
Model ZAXIS80SB ZAXIS80SBLC
Type of Front-End Attachment Boom-Swing Type 1.62 m (5 ft 4 in) Arm
Bucket Capacity (Heaped) PCSA 0.28 m
3
(0.37 yd
3
), CECE 0.24 m
3
Operating Weight 7950 kg (17500 lb) 8030 kg (17700 lb)
Basic Machine Weight 6610 kg (14600 lb) 6690 kg (14800 lb)
Engine Isuzu CC-4JG1 40.5 kW/2100 min
-1
(55 PS/2100 rpm)

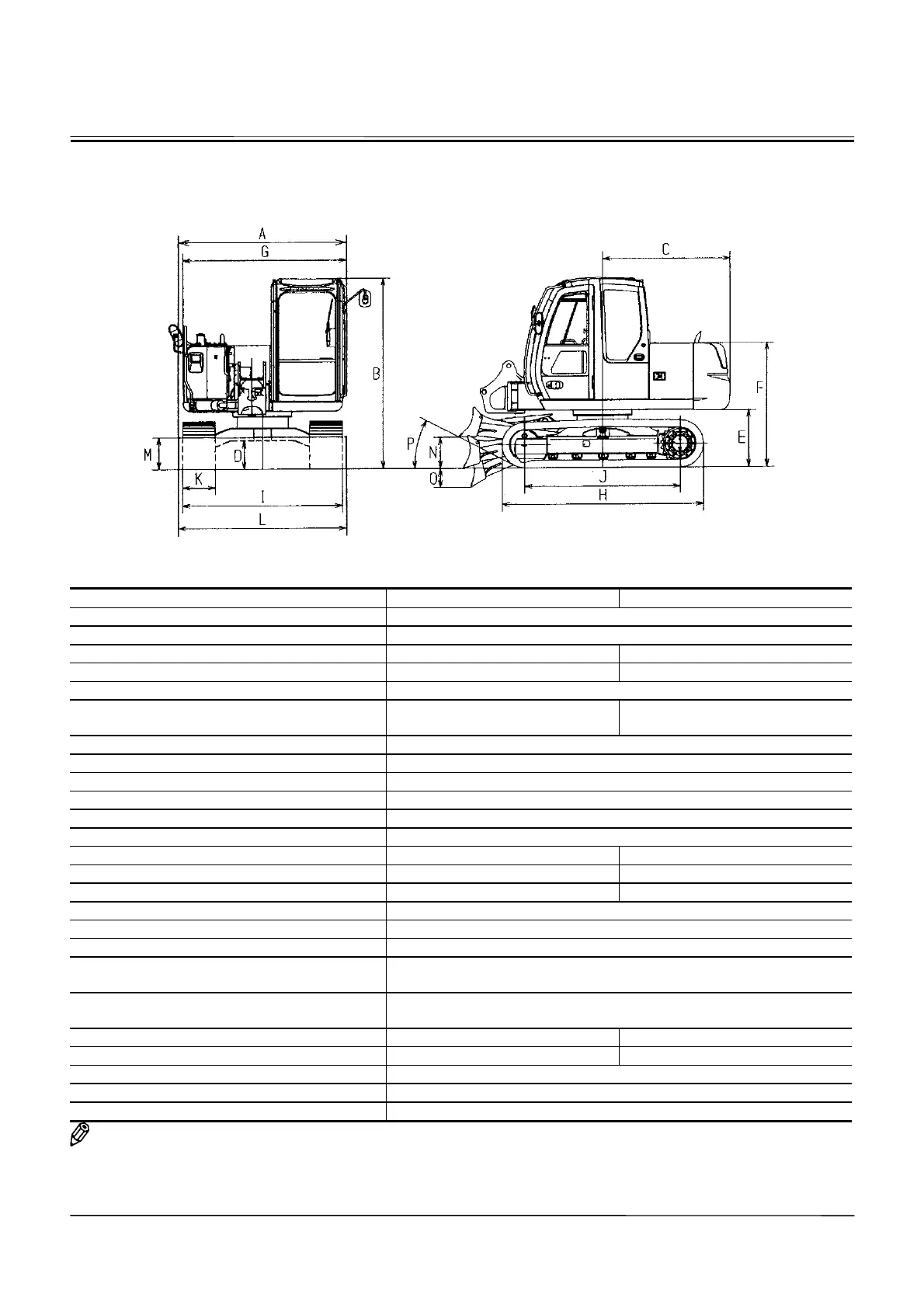

A: Overall Width
(Excluding Back Mirrors)
2260 mm (7 ft 5 in) 2320 mm (7 ft 7 in)
B: Cab Height 2600 mm (8 ft 6 in)
C: Rear End Swing Radius 1750 mm (5 ft 9 in)
D: Minimum Ground Clearance *360 mm (1 ft 2 in)
E: Counterweight Clearance *760 mm (2 ft 6 in)
F: Engine Cover Height *1690 mm (5 ft 6 in)
G: Overall Width of Upperstructure 2260 mm (7 ft 5 in)
H: Undercarriage Length 2765 mm (9 ft 1 in) 2920 mm (9 ft 7 in)
I: Undercarriage Width 2200 mm (7 ft 3 in) 2320 mm (7 ft 7 in)
J: Sprocket Center to Idler Center 2140 mm (7 ft 0 in) 2290 mm (7 ft 6 in)
K: Track Shoe Width 450 mm (18 in) (Grouser shoe)
L: Blade Width 2320 mm (7 ft 7 in)
M: Blade Height 435 mm (1 ft 5 in)
N: Blade Bottom Highest Position
(above ground level)
400 mm (1 ft 4 in)
O: Blade Bottom Lowest Position
(above ground level)
280 mm (11 in)
P: Maximum Approach Angle 26.2° 28.7°
Ground Pressure 34 kPa (0.35 kgf/cm
2
, 5.0 psi) 32 kPa (0.33 kgf/cm
2
, 4.7 psi)
Swing Speed 11.3 min
-1
(11.3 rpm)
Travel Speed (fast/slow) 5.0/3.3 km/h (3.1/2.1 mph)
Gradeability 35°(tan
T
=0.70)
NOTE:
*
The dimensions do not include the height of the shoe lug.
