Powered by AC Household Current:
In AC mode the X2AC+ has a maximum
charging output of 100 watts total. This charge output can be allocated
dierently to each channel utilizing the Power Distribution feature.
To adjust the wattage between channel got to BATT/PROGRAM menu and use
the INC. – or DEC + buttons to get to the SYSTEM SETTINGS, press ENTER/Start
to enter the System settings menu and use the – or + buttons to scroll to the AC
Max Power Set screen. Press ENTER/Start and the wattage amount will begin to
blink. Use the – or + buttons to adjust the wattage for that channel.
Adjusting one channel will change the other channel proportionally. i.e
you change one channel to 70 watts the other channel will only have 30
watts available for charging.
Powered by Automotive Battery or DC Power Supply: In DC mode the X2AC+
has a maximum charging output of 200 watts total. This is allocated a 100 watts
per channel and cannot be adjusted. It is extremely important that you use
either a fully charged 13.8V car battery or a high quality AC/DC power supply
in the range of 11-18V DC output with minimum power of 240W or higher to
ensure a reliable performance.
Battery & Power Supply Connections Power Distribution
TO AVOID SHORT CIRCUITS, ALWAYS CONNECT THE CHARGE LEADS
TO THE CHARGER FIRST, AND THEN TO THE BATTERY. REVERSE THE
SEQUENCE WHEN DISCONNECTING THE PACK.
Warning

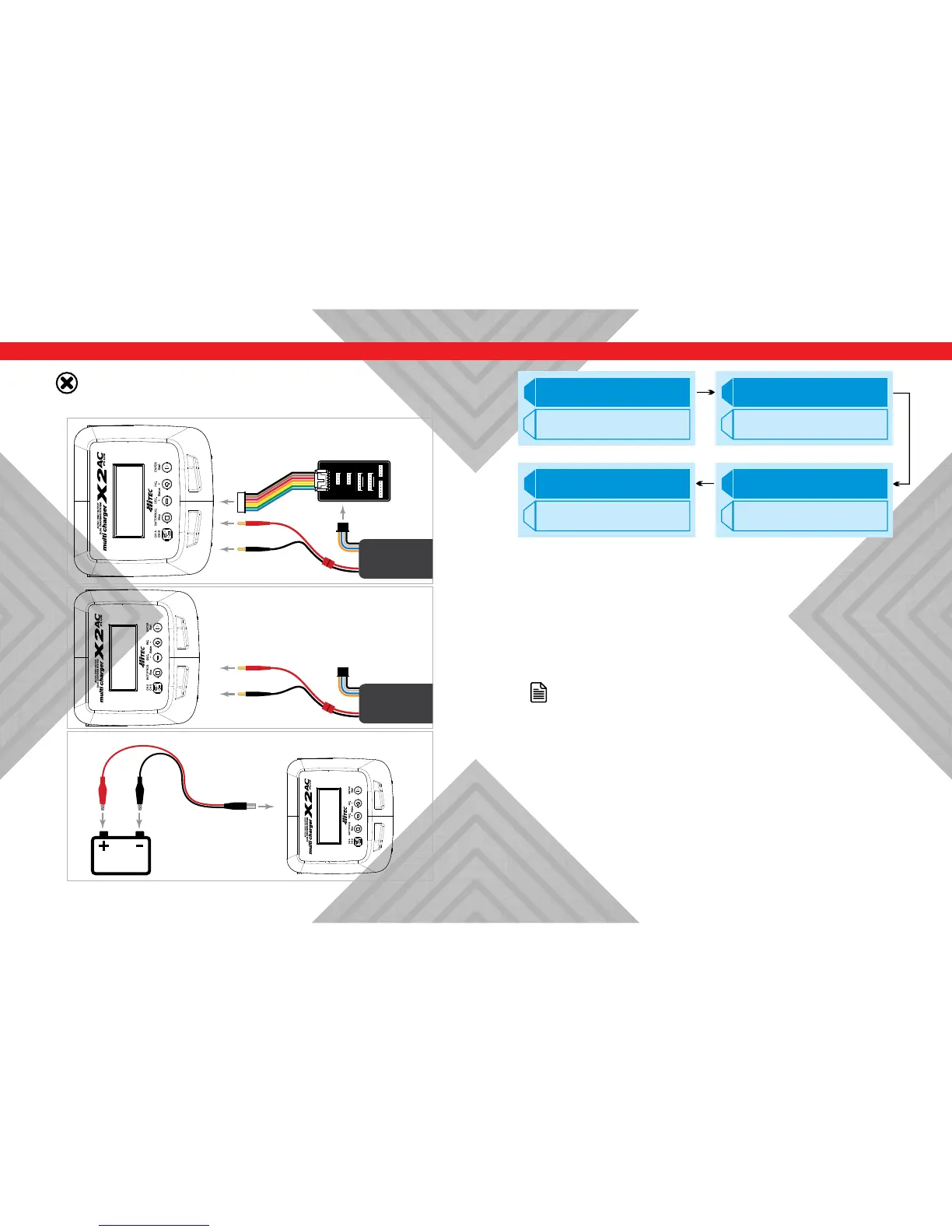

Battery Connection With Balance Adaptor.
Battery Connection
Without Balance Adaptor.
12VDC Battery/DC Power Supply Connection.
*
*
12VDC battery or
11~18V DC, 30 amp
power supply
To Next Page
