User Manual Description of the Motors
EM1 Series AC Servo Motors EM1-01-0-EN-2110-MA Page 17 of 72

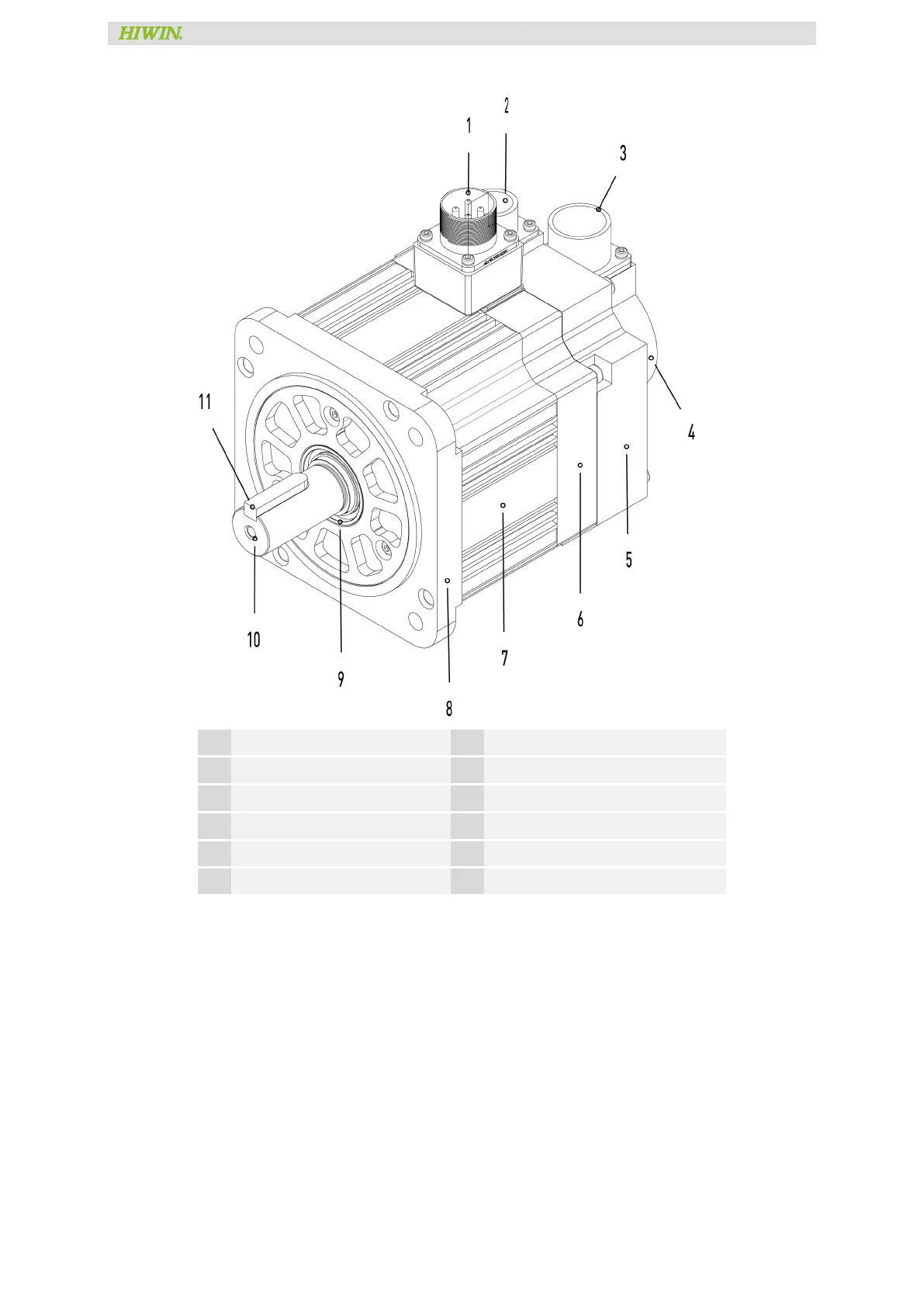

1 kW – 2 kW AC servo motor appearance are as bellowing.
1 Power connector 7 Motor cover (stator)
2 Brake connector 8 Front cover
3 Encoder connector 9 Oil seal
4 Encoder cover (encoder) 10 Shaft (rotor)
5 Brake cover (brake) 11 Key
6 Back cover
