Hiwin EM1 Series User Manual

User Manual Technical Data
EM1 Series AC Servo Motors EM1-01-0-EN-2110-MA Page 29 of 72
5.10 Degree of Protection
The degree of protection designation in accordance with EN 60034-5 (IEC 60034-5), EN 60529
(IEC 60529) and other related standards is described using the letters “IP” and two digits, e.g.
IP65.
IP = International Protection
1
st
digit = protection against the ingress of foreign bodies
2
nd
digit = protection against water
The validity of DIN 60034-5 refers to water as medium that can potentially enter, and not oil.
For the degree of protection of HIWIN servo motors, please refer to the chapter 8.2.1
Mechanical in this manual.

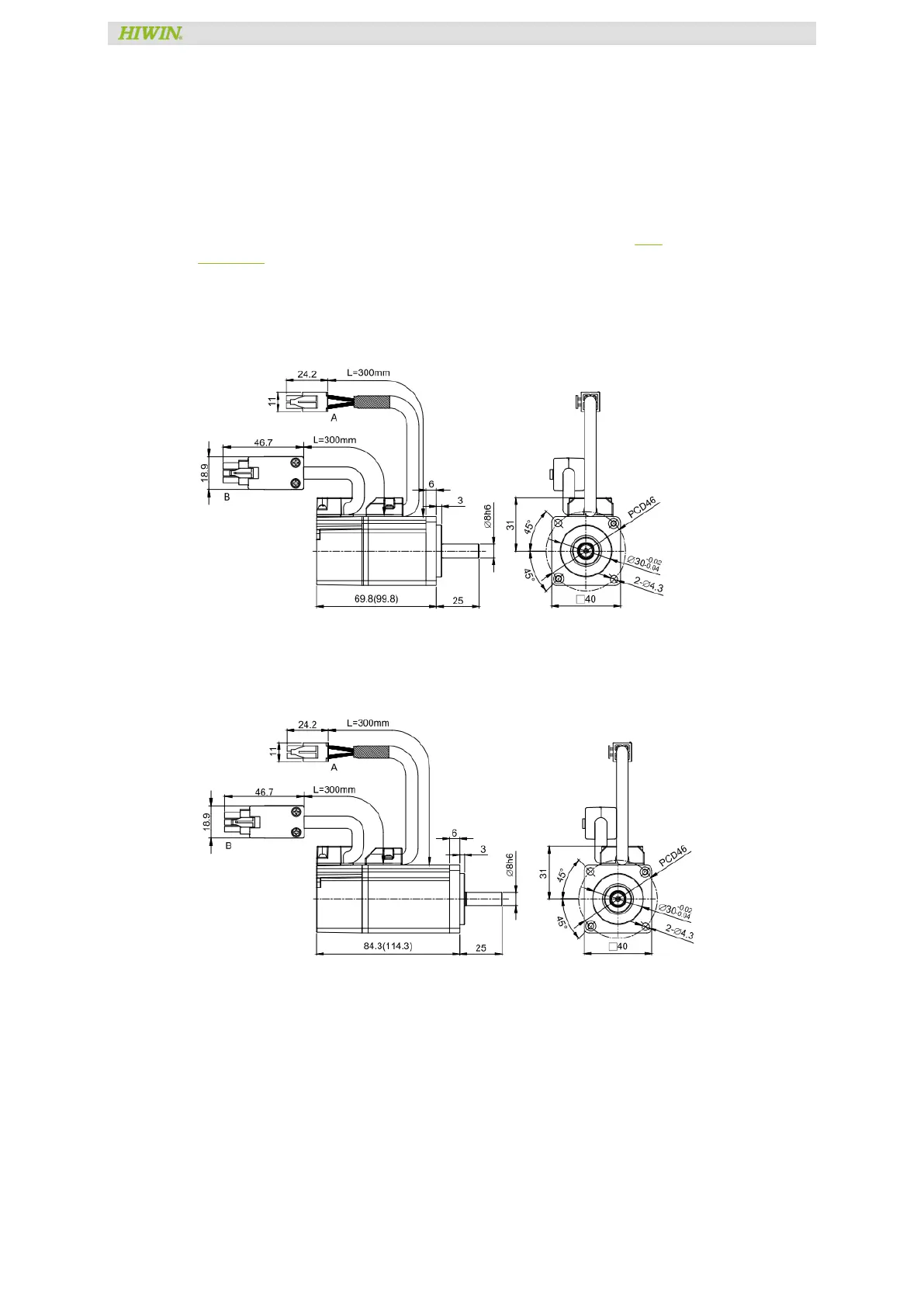

5.11 Mechanical Overview

EM1-C-M-05-2-X-X-0-X
For this motor type, power connector and encoder connector are not satisfied with IP65, motor
through shaft section need to add oil seal which is optional for all types of AC servo motor.

EM1-C-M-10-2-X-X-0-X
For this motor type, power connector and encoder connector are not satisfied with IP65, motor
through shaft section need to add oil seal which is optional for all types of AC servo motor.
