Hiwin EM1 Series User Manual

User Manual Description of the Motors
EM1 Series AC Servo Motors EM1-01-0-EN-2110-MA Page 16 of 72
4 Description of the Motors
4.1 General View

Combination of HIWIN AC servo motors and drives.
Servo Motor Model Rated Output Rated Torque Rated Speed Servo Drive Model
EM1-C-M-05-2-⎕-⎕-0-⎕ 50 W 0,16 Nm 3.000 rpm ED1⎕-⎕⎕-0422-A⎕
EM1-C-M-10-2-⎕-⎕-0-⎕ 100 W 0,32 Nm 3.000 rpm ED1⎕-⎕⎕-0422-A⎕
EM1-C-M-20-2-⎕-⎕-0-⎕ 200 W 0,64 Nm 3.000 rpm ED1⎕-⎕⎕-0422-A⎕
EM1-C-M-40-2-⎕-⎕-0-⎕ 400 W 1,27 Nm 3.000 rpm ED1⎕-⎕⎕-0422-A⎕
EM1-C-M-75-2-⎕-⎕-0-⎕ 750 W 2,39 Nm 3.000 rpm ED1⎕-⎕⎕-1022-A⎕
EM1-A-M-1K-2-⎕-⎕-0-⎕ 1 kW 4,77 Nm 2.000 rpm ED1⎕-⎕⎕-1022-A⎕
EM1-D-M-1A-2-⎕-⎕-0-⎕ 1,2 kW 5,73 Nm 2.000 rpm ED1⎕-⎕⎕-2032-A⎕
EM1-D-M-2K-2-⎕-⎕-0-⎕ 2 kW 9,55 Nm 2.000 rpm ED1⎕-⎕⎕-2032-A⎕


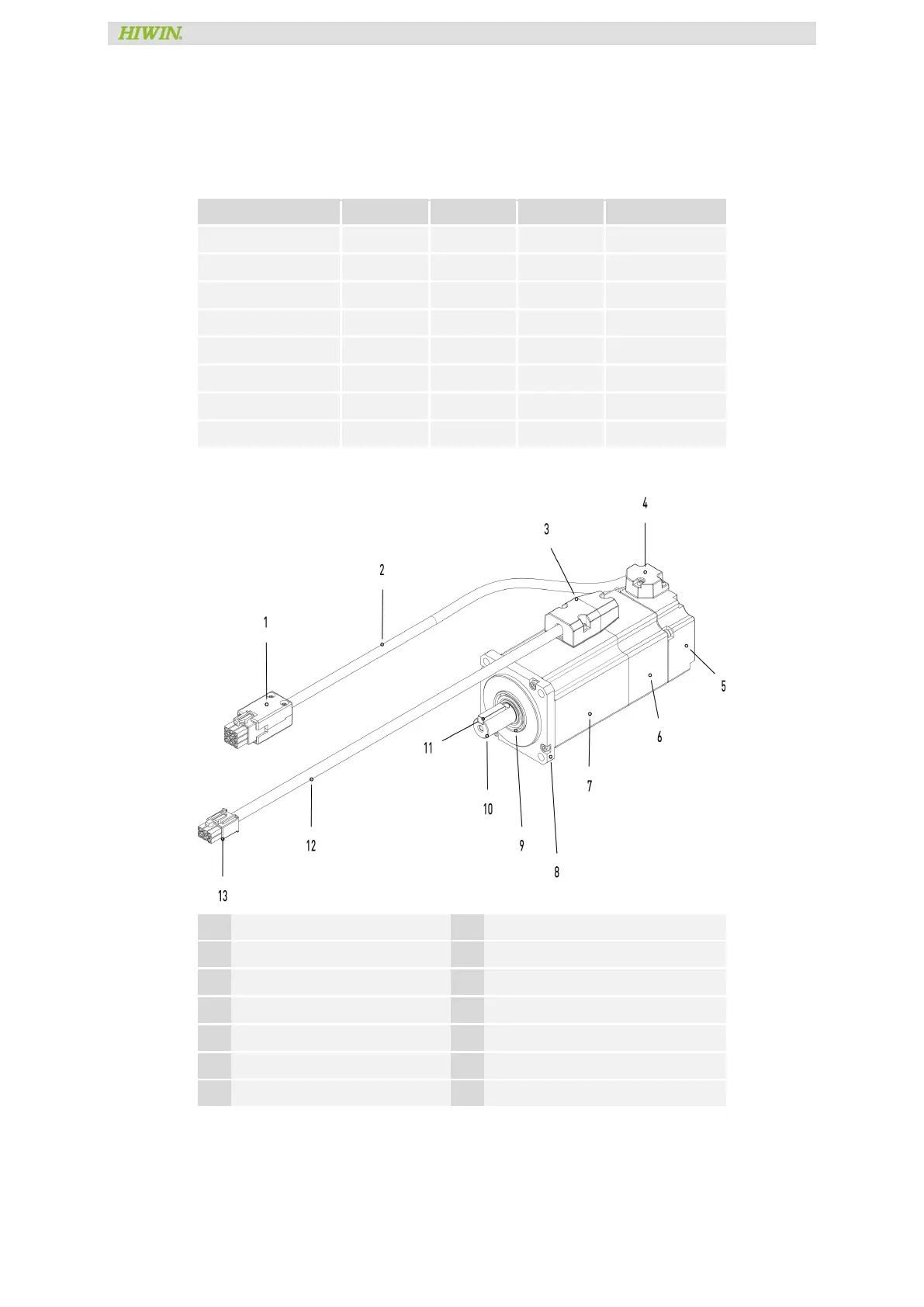

50 W – 750 W AC servo motor appearance are as bellowing.
1 Encoder connector 8 Front cover
2 Encoder cable 9 Oil seal
3
Power cab
10
Shaft (rotor)
4 Encoder cab 11 Key
5 Encoder cover (encoder) 12 Power cable
6 Brake cover (brake) 13 Power connector
7 Motor cover (stator)
