HKC HQ-005 Installation, Operation And Maintenance Manual

Installation, Operation and Maintenance Manual
HQ-005 Electric Actuator
Document No. HKQI-611
7 | P a g e

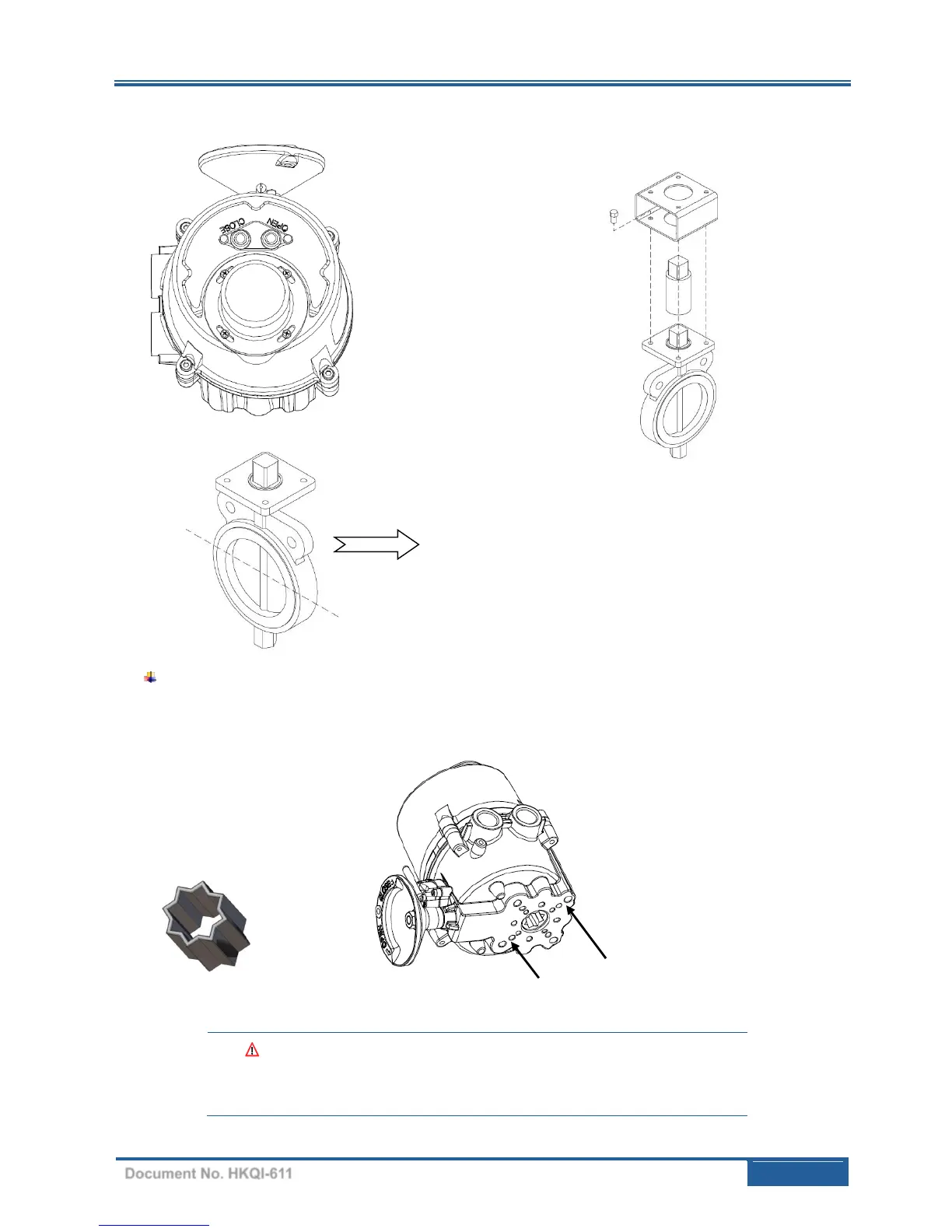

4.2.1 Actuator Mounting Base Details
Note:
Make sure both the actuator and valve are fully closed.
DANGER:
 HAZARDOUS VOLTAGE. Make sure all incoming power is disconnected
before performing the mounting.
Direct Mounting
(ISO Standard)
Actuator: Fully Closed
Valve: Fully Closed
Bracket Mounting
Actuator Mounting Base: F03/F04/F05/F07
F04 Bolt Circles (45°)
F03, F05, F07 Bolt Circles
Star Adapter
14mm→11mm
14mm→9mm
