−36−

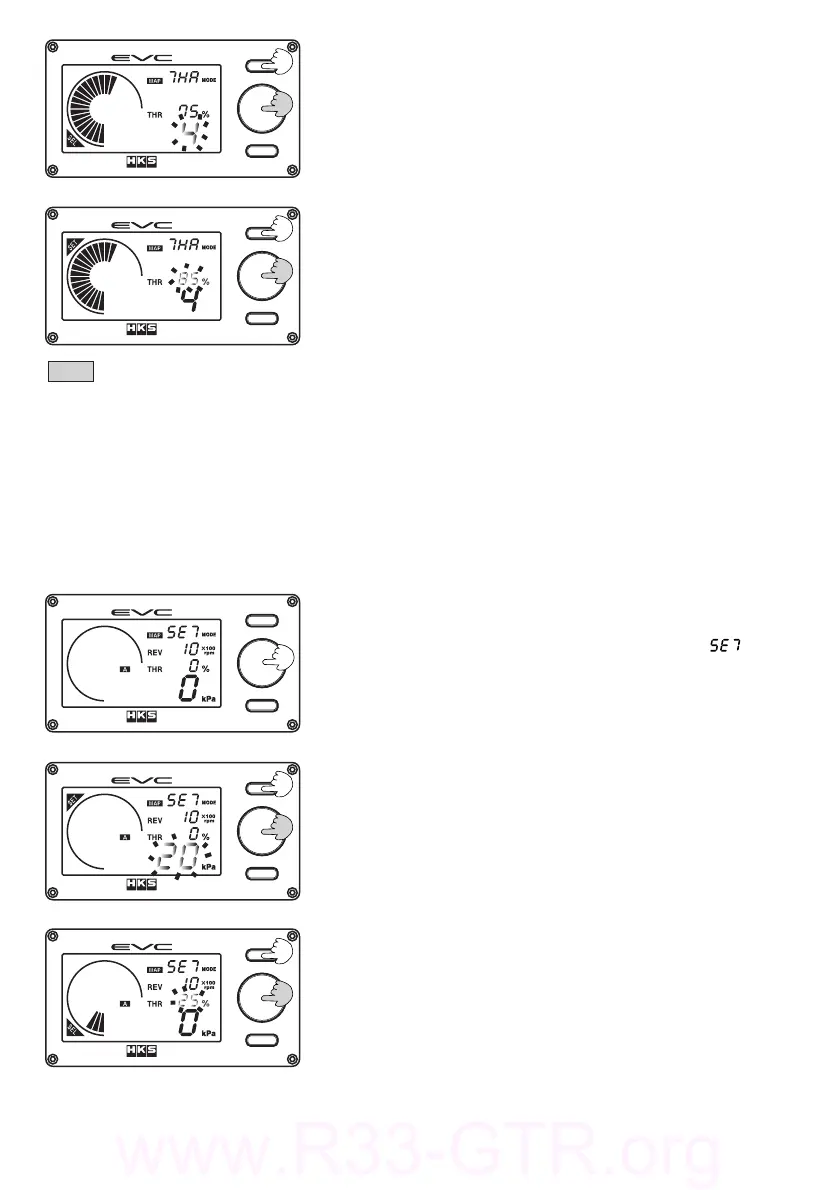

(２)Turnthevolumeknobtoselectthegridpointtochange.
PressButton①tochangethethrottleopeningratio.
・Whenthegridpointischanged,thethrottlesetting
displayisalsochanged.
・PressingButton①advnacestostep(３)."ＳＥＬ"will
disappearas"ＳＥＴ"appearsonthedisplay.The
digitaldisplay(L)stopsblinkingandthethrottle
settingwillblink.
(３)Turnthevolumeknobandchangethethrottleopening%
correspondingtothegridpoint.Whenthesettingis
done,pressthevolumeknobagain.
・Tochangeotherthrottleseetings,pressButton①and
andgobacktostep(２)andrepeatprocedure.
Settheboostmapcorrectionvaluetocalculatethecorrectionboostcorrespondingtothe
throttleandspeedorRPMinputforbothBoostＡ/Ｂmodes.
(１)PressthevolumeknobintheboostmapcorrectionAset
modeorBsetmode.
・Thedigitaldisplay(S)willilluminate[].
・TheEVCwillbeepandthedigitaldisplay(L)blink.
・"ＳＥＴ"willilluminate.
・TheimageontheleftrepresentsthemapoffsetAmode
whenthemapfunctionmode"5"(REV=THR)isselected.
５．５．BoostMapCorrectionＡSetMode/BoostMapCorrectionＢSetMode
Note
・Thedefaultgridpointsettingsareasfollows:1:0%,2:25%,3:50%,4:75%,5:100%
・Thethrottle%settingrangeisbetween0‑100%.Eachgridpointsettingvalueshould
be+1%ofthepreviousgridpointand‑1%ofthenextgridpoint.
(２)Turnthevolumeknobtosetthecorrectionboost.When
settingsarecomplete,pressthevolumeknobagain.
・PressButton①tochangethecorrectionboostvalue
forotheraxes.
・PressingButton①advancestostep(３)."ＳＥＬ"will
appearas"ＳＥＴ"disappears.Thedigitaldisplay
(L)stopsblinkingandthethrottle%valueblinks.
(３)Turnthevolumeknobtomovethethrottleopeningaxis.
PressingButton①willmovetotheRPMAxis
・PressingButton①advancestostep(４).Thethrottle
%valueturnsconstantandtheRPMvalueblinks.
