3.2.3.4 Electric Reverser Function, 7 or 8 Loader Functions
The remote control box has 6 proportionally acting control levers for operating 6
loader functions.
By means of an electric reverser function it is possible to operate up to two
more loader functions. I.e. one of the control levers can control three different
loader functions (or loader equipment).

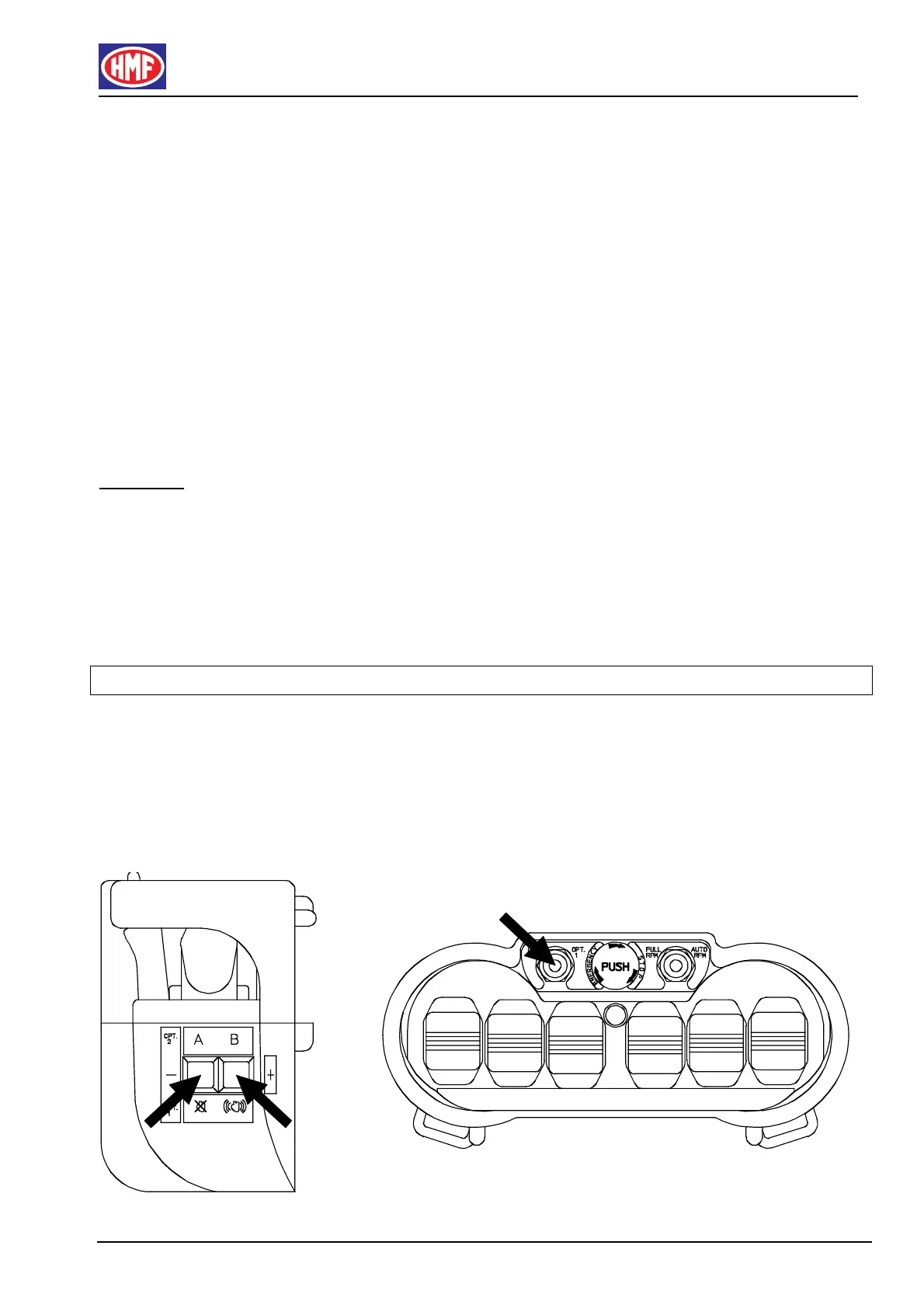

By means of the left tumbler switch and the press buttons on the left side of the
remote control box, it is possible to change between up to three loader functions
on the control lever.
Example
:
The loader is fitted with Fly-Jib. The 5
th
control lever operates the jib function of
the Fly-Jib and the 6
th
control lever operates the extension function (the two
levers to the extreme right) .
The Fly-Jib is fitted with extra valves for grab and rotator (7
th
and 8
th
function).
Operate the grab and rotator in the following way:
• Push the left tumbler switch to the left (opt. 2).
• While holding down the left press button (A), the 6
th
control lever changes
from Fly-Jib “extension”-function to “rotator”-function.
• While holding down the right press button (B), the 6
th
control lever changes
from Fly-Jib “extension”-function to “grab”-function.
