Configuration Quick Guide 30 (124)
6.4 Verify Operation

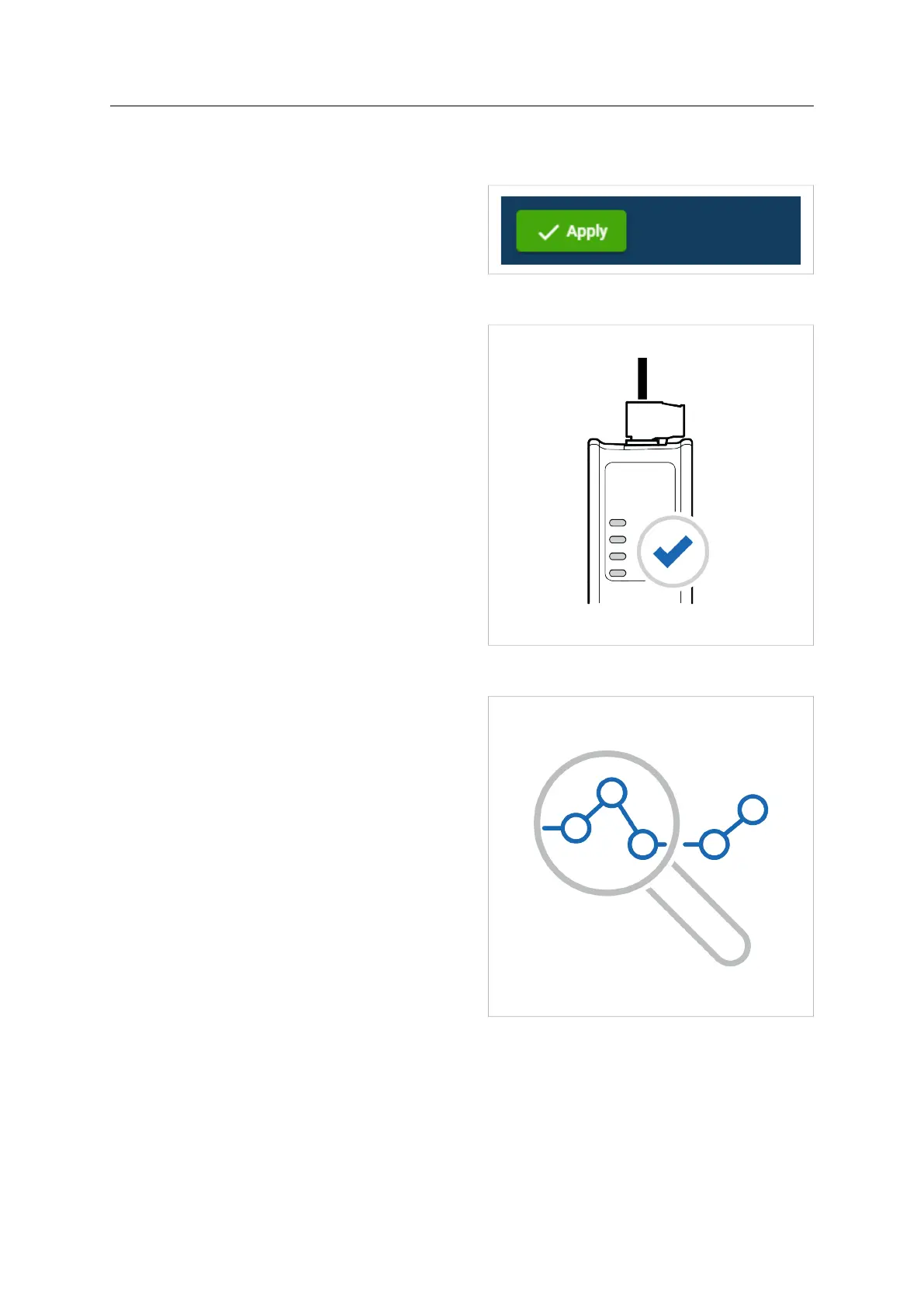

1. Apply the configuration
When you have completed and verified
the configuration, click Apply for the
settings to take effect.
2. Verify status and LED indications
On the Home page:
Monitor the Communicator, network and
node status.
You can also view the Communicator LED
indications remotely.
3. Verify and monitor communication
In Diagnostics, use the:
• Serial RS-232/485 page to verify that
the serial transactions are sent and
received by the Communicator.
• Event log page to detect failures and
unexpected behavior over time.
Anybus
®
Communicator
™
User Manual
