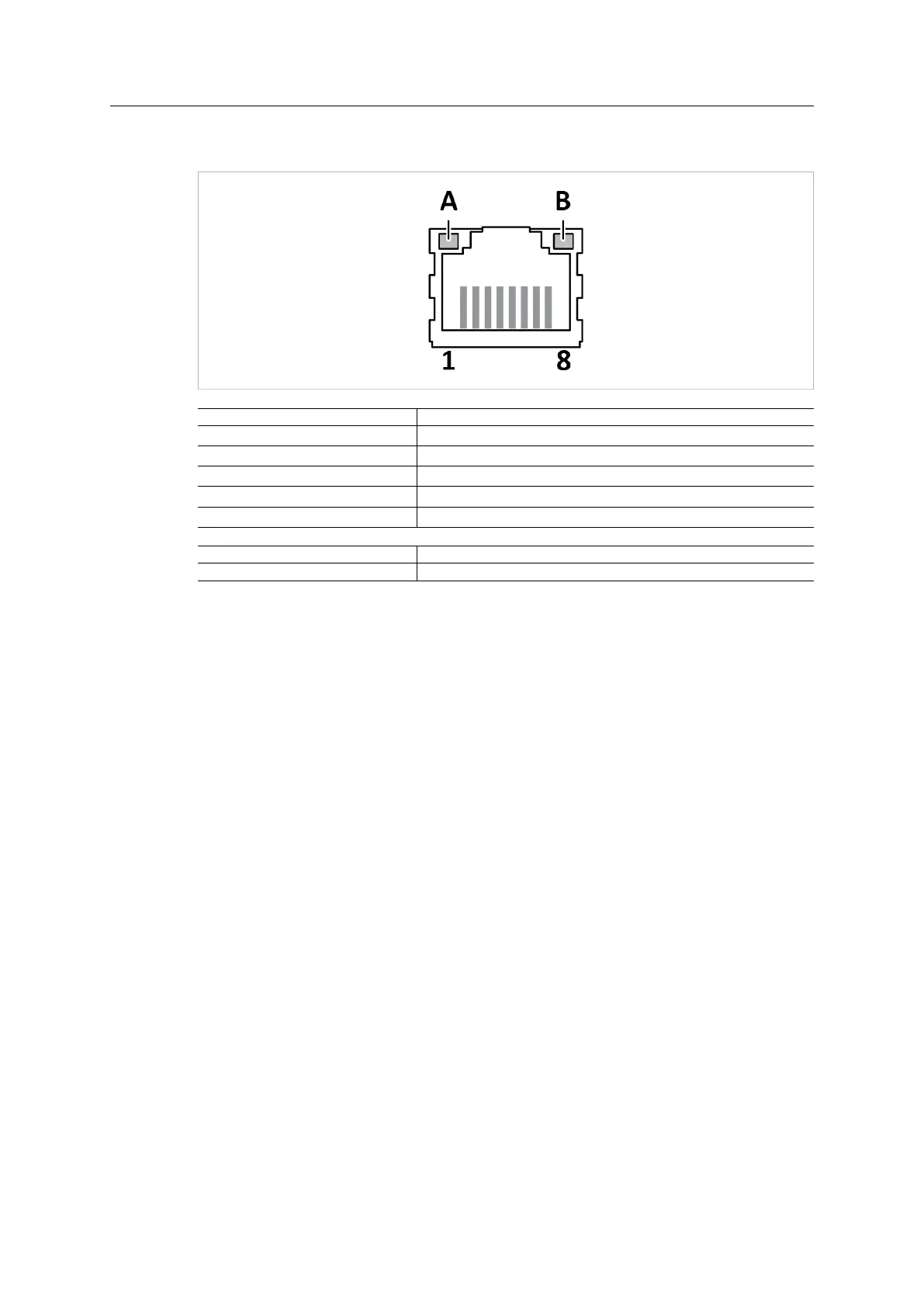

9.3 Ethernet LED Indicators
LED A Function
Off No link (or no power)
Green
Link (100 Mbit/s) established
Green, flashing
Activity (100 Mbit/s)
Yellow
Link (10 Mbit/s) established
Yellow, flashing
Activity (10 Mbit/s)
